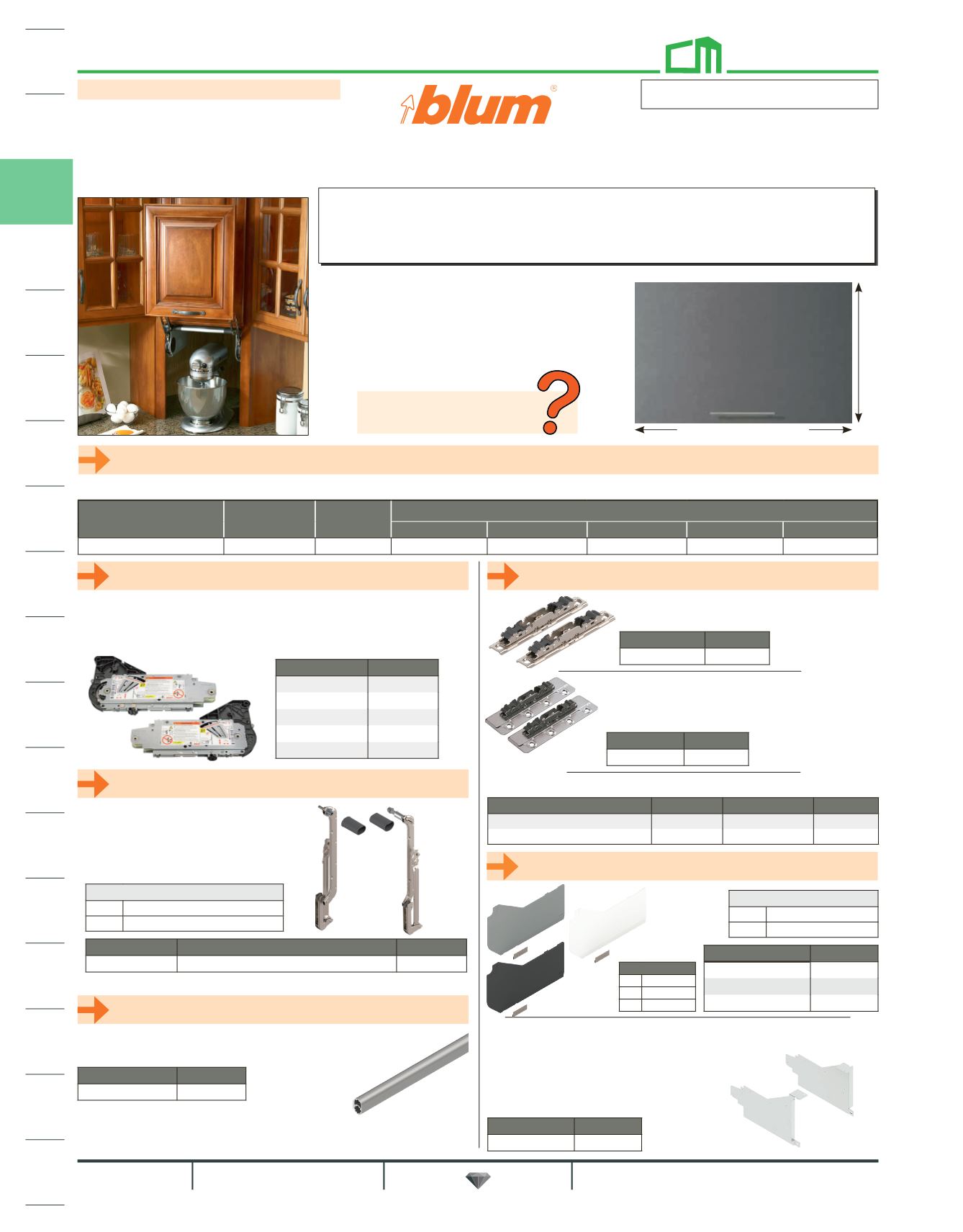

Charles McMurray Co. 2021 Catalog

300 / 1590

• Brackets for mounting AVENTOS HL in a corner
appliance garage face frame application
• Set includes left and right brackets and
M4 x 30 mm lift mechanism machine
screws (qty 12)
Item No. List Pr
$59.50
AVENTOS HL Lift Up System - Appliance Garage Application
Wood or Wide Aluminum Door for Panel and Face Frame Applications
Note: Face frame cabinets must be blocked out flush with the frame on the sides to mount the lift mechanism.
Arm assembly set includes
1 ea. LH/RH arm assembly
2 ea. Stabilizer rod cover caps
Set No. Cabinet Height List Set
450-580 (17-11/16 to 22-13/16") $151.36
Set includes 2 lift mechanisms and 10 #7 x 35 mm (1-3/8") wood
screws. Use the more powerful lift mechanism for overlapping areas.
Minimum cabinet depth = 278 mm (11").
Set No. List Set
$186.22
$179.06
$196.78
$196.78
$337.14
Aluminum, 1061 mm (41-3/4"), cut-to-length.
Length = interior cabinet opening -129 mm (5").
Item No. List Ea.
$41.26
Cabinet Height (")
Min. Inside
Opening Ht.
Arm
Assembly
Lift Mechanism (door weight lbs./oz.)
17-11/16 to 22-13/16 16-1/4" B20L3900 --- 2/3 - 3/4 3 /5 - 10 /6 10/7 - 19 /3 19 /4 - 36/5
5 separate items are required to complete unit:
Lift mechanism set, arm assembly set, cross stabilizer rod, hardware set and cover set. Order
screws separately for hardware set. Optional corner bracket set is available separately.
NOTE: a pozidrive bit is required to make necessary adjustments .
NOTE: For cabinets wider than 48" (and up to 72" wide) order two
stabilizer rods and a stabilizer rod connector set (pg 309).
Order screws separately.
Item No. Door Type Description List
(22 required) Wood #6 x 5/8" $4.64c
(18 required) Aluminum #7 x 13mm $0.38ea
Optional Bracket Set for Corner Application
For complete specifications order Blum catalog
or visit
Don't know the door weight?
Call us...we can help!
450 (17-11/16") - 580 (22-13/16")
door range
381 (15") - 1828 (72")
Step 1 - Use chart below to determine appropriate lift mechanism
Step 2 - order a lift mechanism set
Step 3 - order an arm assembly set
Step 4 - order an oval cross stabilizer rod
Step 5 - order a hardware set
SERVO-DRIVE for AVENTOS HL see page 306.
Standard hardware set includes 2 arm
assembly mounting plates.
Set No. List Set
$10.04
Special Application
2mounting platesw/brackets for large overlay
on 5-piece doors with face frame application.
Set No. List Set
$22.92
Step 6 - order a cover set
11/21
Cover Set includes
1 ea. LH/RH cover plate
2 ea. cover caps
Set No. List Set
$47.20
$47.20
$47.20
Light Gray
Dark Gray
Silk White
Finishes
HG Light Gray
SW Silk White
TG Dark Gray
DOOR
HARDWARE
TOOLS FASTENERS SHOP &
FINISHING
ABRASIVES LACQUERS &
FINISHES
ADHESIVES FURNITURE
HARDWARE
EDGING &
DECOR.WOOD
SHELF &CLOSET
ORGANIZERSKITCH./BATH
LIGHTING SLIDES
DOORS &DRAWERS
LOCKS &CATCHES
AVENTOS &
LIFTS
CABINETHINGES
DECORATIVEHARDWARE
AVENTOS & LIFTS
800.533.0533 2021 1946 300 Prices subject to change without notice.
