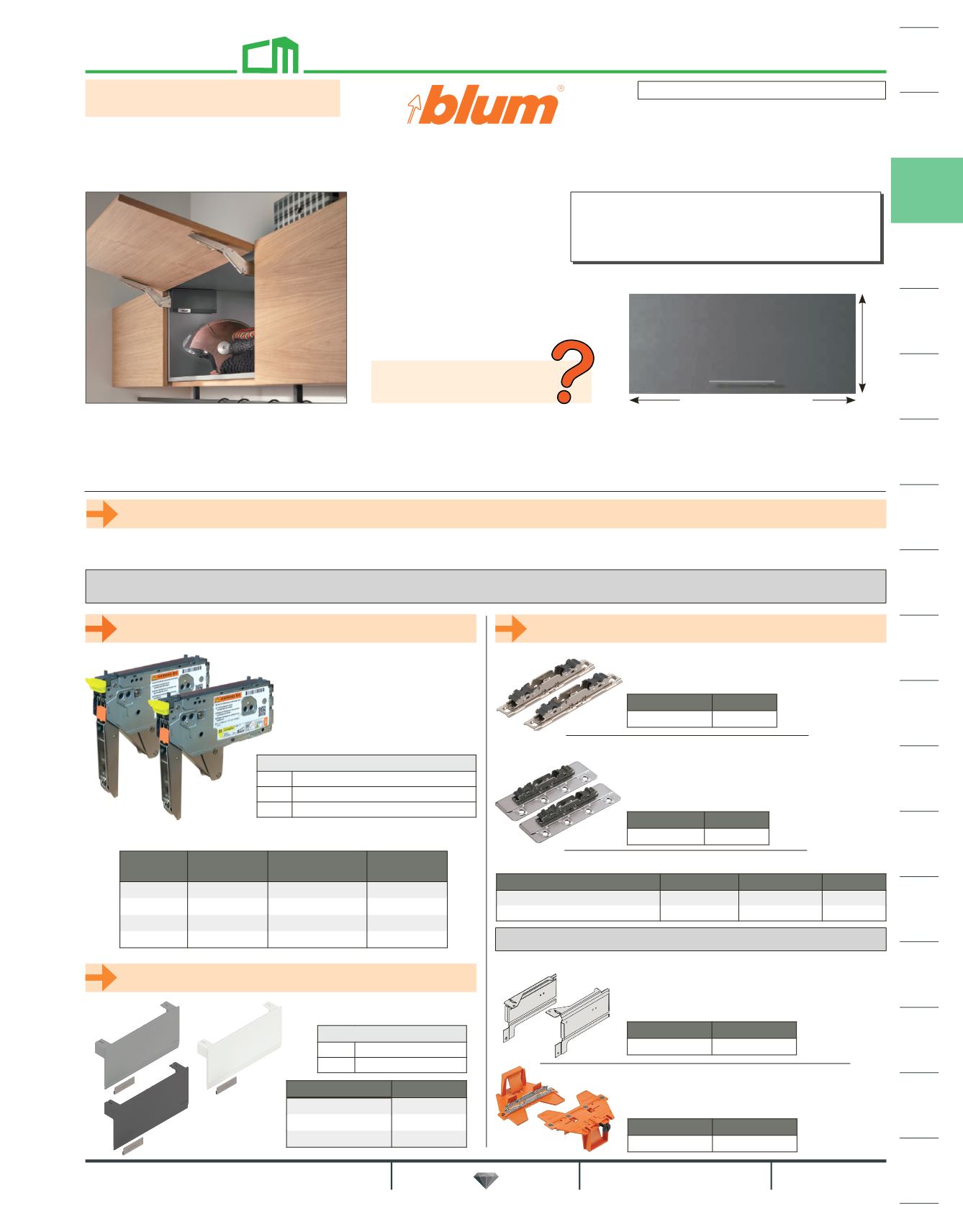

Charles McMurray Co. 2021 Catalog

295 / 1590

Order screws separately.
Item No. Door Type Description List
(12 required) Wood #6 x 5/8" $4.64c
(16 required) Aluminum #7 x 13mm $0.38ea
AVENTOS HK top Lift System - Integrated Opening Angle Adjustment
Wood or Wide Aluminum Door for Panel and Face Frame Applications
Power
Factor
Opening
Angle Set No. List Set
36-139 107° $158.58
80-240 107° $158.58
150-450 107° $159.32
270-781 107° $186.14
Standard hardware set includes 2 arm
assembly mounting plates.
Set No. List Set
$10.04
Maximum front weight is 39 lbs. for two lift mechanisms.
3 separate items are required to complete unit:
Lift mechanism set, cover set and hardware set.
Order screws separately for hardware set.
NOTE: a torx T20 screwdriver is required to
make necessary adjustments.
Special Application
Cover Set includes
1 ea. LH/RH cover plate
2 ea. cover caps
Set No. List Set
$30.70
$32.64
$32.64
Minimum Cabinet Depth = 187mm (7-3/8")
For complete specifications visit
• Self-positioning mechanism with locating template for easy installation
• Integrated opening angle adjustment between 75° and 107°
• When using a third lift mechanism (a power factor increase of up to 50%), a trial application is recommended
NOTE: For wide cabinets, an additional lift system attached to the center panel is recommended, to prevent the middle
of the front from sagging when open.
2 mounting plates with brackets for large
overlay on 5-piece doors with face frame
application.
Set No. List Set
$22.92
Don't know the door weight?
Call us...we can help!
Calculate the power factor to determine the required lift mechanism set for your application. Cabinet height determines the
telescopic arm set required. Note: Face frame cabinets require B22K6001 brackets (special order) to mount the lift mechanisms.
Step 1 - Determine the power factor for the application
Step 2 - order a lift mechanism set Step 4 - order a hardware set
Step 3 - order a cover set
Power factor (PF) = cabinet height (") x door weight (lbs.) including twice the handle weight.
250 (10") - 610 (24")
door range
381 (15") - 1828 (72")
Set includes
2 ea. Lift mechanisms
8 ea. #7 x 35mm (1-3/8") wood screws
1 ea. Positioning template
TIP-ON for AVENTOS HK top see page 302.
SERVO-DRIVE see page 307.
Optional Items
Face Frame Mounting Brackets
Minimum recess of 1/2". Includes left and
right brackets and mounting screws.
Set No. List Set
$57.20
Template for armassemblymounting plate.
Side overlay adjustable from 12-21 mm.
Calibrated scale for accuracy.
Set No. List Set
$81.72
Light Gray
(HG)
Silk White
(SW)
Dark Gray
(TG)
11/21
DECORATIVE
HARDWARE
CABINET
HINGES
AVENTOS &
LIFTS
LOCKS & CATCHES
DOORS & DRAWERS
SLIDES
LIGHTING ORGANIZERS
KITCH./BATH
SHELF & CLOSET
EDGING &
DECOR.WOOD
FURNITURE HARDWARE
ADHESIVES LACQUER &
FINISHES
ABRASIVES
SHOP & FINISHING
FASTENERS
TOOLS
DOOR
HARDWARE
AVENTOS & LIFTS
800.533.0533 2021 1946 295 Prices subject to change without notice.
