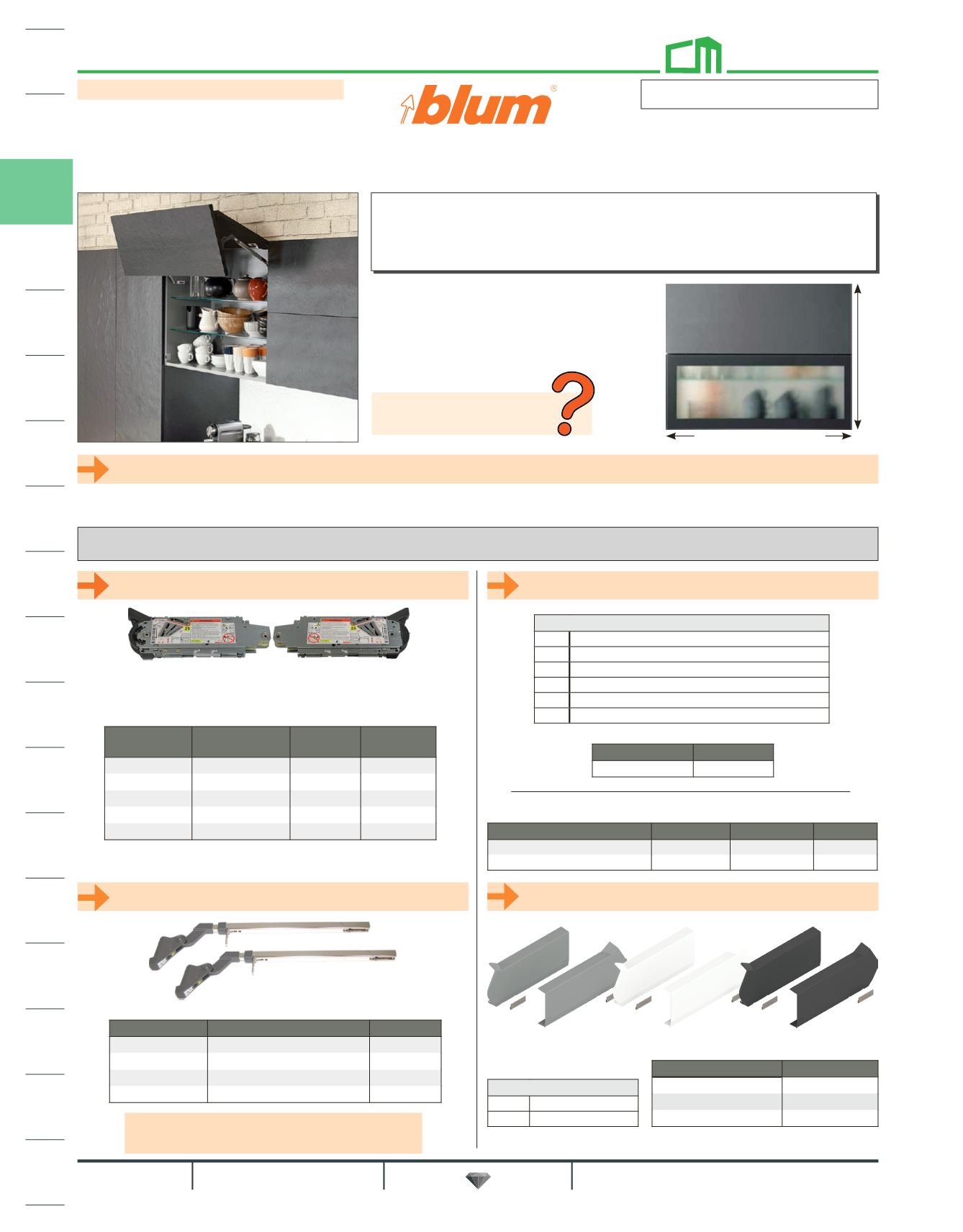

Charles McMurray Co. 2021 Catalog

294 / 1590

Light Gray (HG)
Calculate the power factor to determine the required lift mechanism set for your application. Cabinet height determines the tele-
scopic arm set required. Note: Face frame cabinets must be blocked out on the sides to mount the AVENTOS HF lift mechanisms.
AVENTOS HF Bi-Fold Door Lift System
Wood or Wide Aluminum Door for Panel and Face Frame Applications
Set includes two telescopic arms.
Set No. Cabinet Height List Set
479-558 (18-7/8 to 22") $94.88
558-686 (22 to 27") $100.34
686-889 (27 to 35") $114.36
889-1067 (35 to 42") $127.80
Set No. List Set
$63.92
4 separate items are required to complete unit:
Lift mechanism set, telescopic arm set, hardware set, and cover set. Order screws sepa-
rately for hardware set. An additional mounting plate with bracket is necessary for overlay
greater than 1" (see below).
NOTE: apozidrivebit is required tomakenecessaryadjustments .
Step 5 - order a cover set
Set No. List Set
$46.16
$46.16
$46.16
Power
Factor Set No.
Sets
Required List Set
85-230 1* $165.70
231-470 1 $165.70
471-880 1 $178.30
780-1400 1 $196.26
1401-2300 2** $196.26
Set includes two lift mechanisms and eight #7 x 35mm (1-
3/8") wood screws. Use the more powerful lift mechanism
for overlapping areas.
*Only 1 each mechanism required.
**3 each mechanisms required.
NOTE: Restriction clips (to 83° or 104°)
are available. See catalog page 221.
Minimum Cabinet Depth: 278 (11")
Minimum Interior Shelf Setback: 22 (7/8")
Hardware Set includes
2 ea. CLIP top 120° free-swing hinges
2 ea. 32.4630 COMPACT 33 free-swing hinges
2 ea. 130.1130.02 COMPACT mounting plates
2 ea. 78Z5530T CLIP top bottom door hinges
4 ea. 175H6000 Face frame adapter plates
2 ea. 175H3100 Telescopic arm mounting plates
SERVO-DRIVE for AVENTOS HF see page 305.
Order screws separately. (For aluminum doors order both.)
Item No. Door Type Description List
(12 required) Wood #6 x 5/8" $4.64c
(16 required) Aluminum #7 x 13mm $0.38ea
For complete specifications order Blum catalog
or visit
Power factor (PF) = cabinet height (") x door weight (lbs.) including twice the handle weight.
Don't know the door weight?
Call us...we can help!
479 (18-7/8") - 1067 (42")
door range
381 (15") - 1828 (72")
Step 4 - order a hardware set
Step 1 - Determine the power factor for the application
Step 2 - order a lift mechanism set
Step 3 - order a telescopic arm set
Cover Set includes
1 ea. LH/RH cover plate
2 ea. cover caps
Silk White (SW) Dark Gray (TG)
11/21
