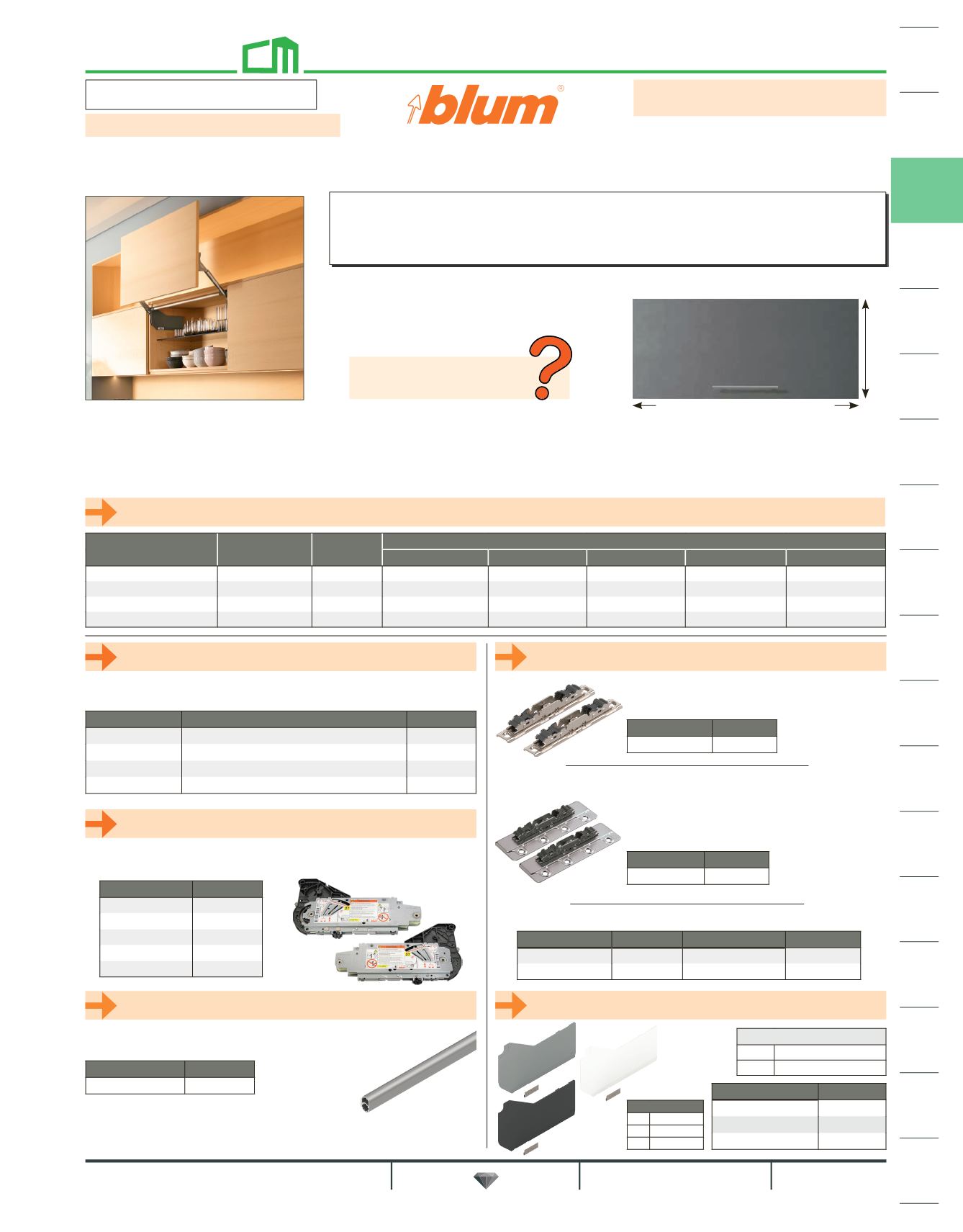

Determine Required Mechanism
To determine the required lift mechanism and arm assembly for any application, find the weight of the door (including handle) and
cabinet height. Use the chart below. Use the more powerful lift mechanism for overlapping power factors. Note: Face frame cabinets
must be blocked out flush with the frame on the sides to mount the AVENTOS HL lift mechanisms.
AVENTOS HL Lift Up System
Wood or Wide Frame Aluminum Door for Panel and Face Frame Applications
Set includes 2 lift mechanisms and 10 #7 x 35 mm (1-3/8") wood
screws. Minimum cabinet depth = 278 mm (11").
Set No. List Set
$186.22
$179.06
$196.78
$196.78
$337.14
Aluminum, 1061 mm (41-3/4"), cut-to-length.
Length = interior cabinet opening -129 mm (5-1/16").
Item No. List Ea.
$41.26
Cabinet Height (")
Min. Inside
Opening Ht.
Arm
Assembly
Lift Mechanism (door weight lbs./oz.)
11-13/16 to 13-3/4 10-5/16" B20L3200 2/12 - 8/7 8/8 - 13/7 13/8 - 25/4 25/5 - 44
13-13/16 to 15-11/16 12-5/16" B20L3500 2/12 - 4/10 4/11 - 10/2 10/3 - 18/10 18/11 - 28/4 28/5 - 44
15-3/4 to 21-5/8 14-1/4" B20L3800 3/13 - 6/13 6/14 - 13/11 13/12 - 24/7 24/8 - 44
17-11/16 to 22-13/16 16-1/4" B20L3900 2/3 - 3/4 3/5 - 10/6 10/7 - 19/3 19/4 - 36/5
NOTE: For cabinets wider than 48" (and up to 72" wide) order two
stabilizer rods and a stabilizer rod connector set (pg. 309).
Cover Set includes
1 ea. LH/RH cover plate
2 ea. cover caps
Set No. List Set
$44.58
$47.20
$47.20
For complete specifications order Blum catalog
or visit
Minimum cabinet depth=278 (11")
Minimum interior shelf setback=56 (2-1/4")
Set includes arm assembly (left and right) and 2 stabilizer rod
cover caps.
Set No. Cabinet Height List Set
300-349 (11-13/16 to 13-3/4") $134.32
350-399 (13-13/16 to 15-13/16") $139.96
400-550 (15-3/4 to 21-5/8") $137.20
450-580 (17-11/16 to 22-13/16") $151.36
Order screws separately (8 required)
Item No. Door Description List
Wood #6x5/8" FHPH $4.64c
Aluminum #7x13mm $0.38ea
5 separate items are required to complete unit:
Arm assembly set, lift mechanism set, cross stabilizer rod, hardware set and cover set. Order
screws separately for hardware set. Optional corner bracket set is available separately.
NOTE: a pozidrive bit is required to make necessary adjustments .
Don't know the door weight?
Call us...we can help!
300 (11-13/16") - 580 (22-13/16")
door range
381 (15") to 1828 (72")
Step 1 - Use chart below to determine appropriate arm assembly and lift mechanism
Step 2 - order an arm assembly set
Step 3 - order a lift mechanism set
Step 4 - order an oval cross stabilizer rod
Step 5 - order a hardware set
Step 6 - order a cover set
SERVO-DRIVE for AVENTOS HL see page 306.
Standard hardware set includes 2 arm
assembly mounting plates.
Set No. List Set
$10.04
Special Application
2 mounting plates with brackets for large
overlay on 5-piece doors with face frame
application.
Set No. List Set
$22.92
Light Gray
Dark Gray
Silk White
11/21
Finishes
HG Light Gray
SW Silk White
TG Dark Gray
