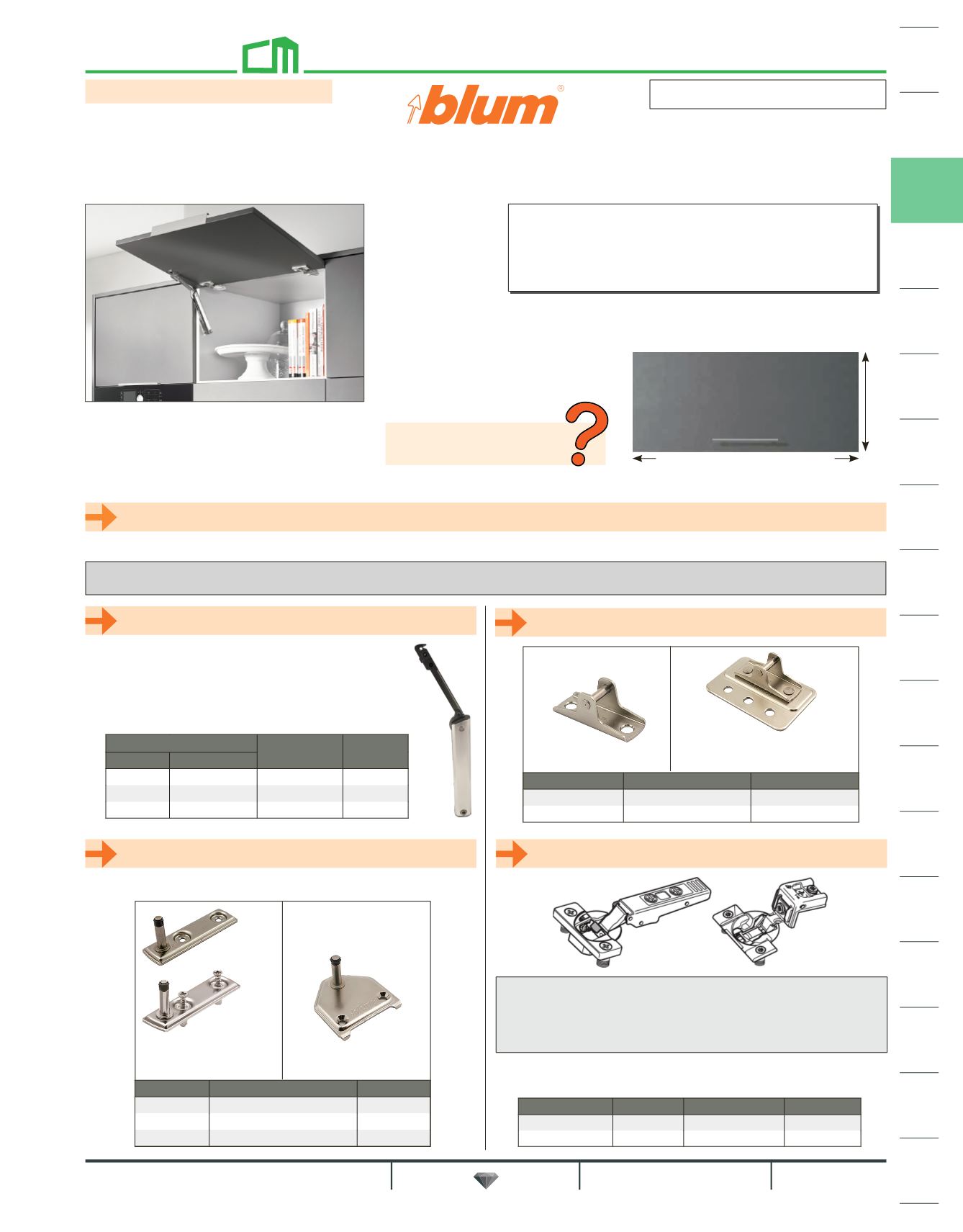

Charles McMurray Co. 2021 Catalog

297 / 1590

AVENTOS HK-XS Stay Lift System
Wood or Wide Aluminum Door for Panel and Face Frame Applications
For shallow depth wall cabinets. The variable stop
allows the lift system to remain in any desired
position and always within easy reach. Can be
used on one or both sides, for the widest range
of applications.
Power Factor Range
Lift No. List Ea. 1 Lift 2 Lifts
17-60 34-120 $32.06
61-112 121-224 $32.06
113-156 225-312 $32.06
Hinge Recommendations:
Order BLUMOTION 110° hinge (catalog pages 194-195) or
COMPACT BLUMOTION 38N hinge (catalog page 224) or
COMPACT BLUMOTION 39C hinge (catalog page 227)
For doors over 2' wide order 1 additional hinge per linear foot.
Minimum Cabinet Depth = 127 mm (5")
For complete specifications order Blum catalog
B-AVENTOS-HK-XS or visit
5 separate items are required to complete unit:
Lift mechanism(s), cabinet mounting plate, door mounting plate,
BLUMOTION hinges and baseplates. Order screws separately.
NOTE: a pozidrive bit is required to make necessary
adjustments ).
NOTE: Two lift mechanisms are required for cabinet widths
greater than 610 (24"). Opening angle is 105° with CLIP top
BLUMOTION, 100° with COMPACT BLUMOTION hinges.
Panel
Screw-On
EXPANDO
Face Frame
Screw-On
Item No. Description List Ea.
Panel, screw-on $4.36
Panel, EXPANDO dowel $5.66
Face Frame, screw-on $11.92
Screw-on
For large overlay 5-piece doors
Screw-On
Item No. Description List Ea.
Screw-on $3.22
Screw-on $11.24
Screws for door mounting plates sold separately.
Item No. Door Description List
Wood #6x5/8" FHPH $4.64 c
Aluminum #7x13mm $0.38 ea
Power factor (PF) = cabinet height (") x door weight (lbs.) including twice the handle weight.
Don't know the door weight?
Call us...we can help!
Calculate the power factor to determine the required lift mechanism for your application. See formula below.
Step 1 - Determine the power factor for the application
Step 2 - order lift mechanism(s)
Step 3 - order cabinet mounting plates Step 5 - order hinges & baseplates
Step 4 - order door mounting plates
238 (9-3/8") - 610 (24")
door range
cabinet widths up to 1828 (72")
TIP-ON for AVENTOS HK-XS see page 298.
Screw-On
Expando
Dowel
DECORATIVE
HARDWARE
CABINET
HINGES
AVENTOS &
LIFTS
LOCKS & CATCHES
DOORS & DRAWERS
SLIDES
LIGHTING ORGANIZERS
KITCH./BATH
SHELF & CLOSET
EDGING &
DECOR.WOOD
FURNITURE HARDWARE
ADHESIVES LACQUER &
FINISHES
ABRASIVES
SHOP & FINISHING
FASTENERS
TOOLS
DOOR
HARDWARE
AVENTOS & LIFTS
800.533.0533 2021 1946 297 Prices subject to change without notice.
