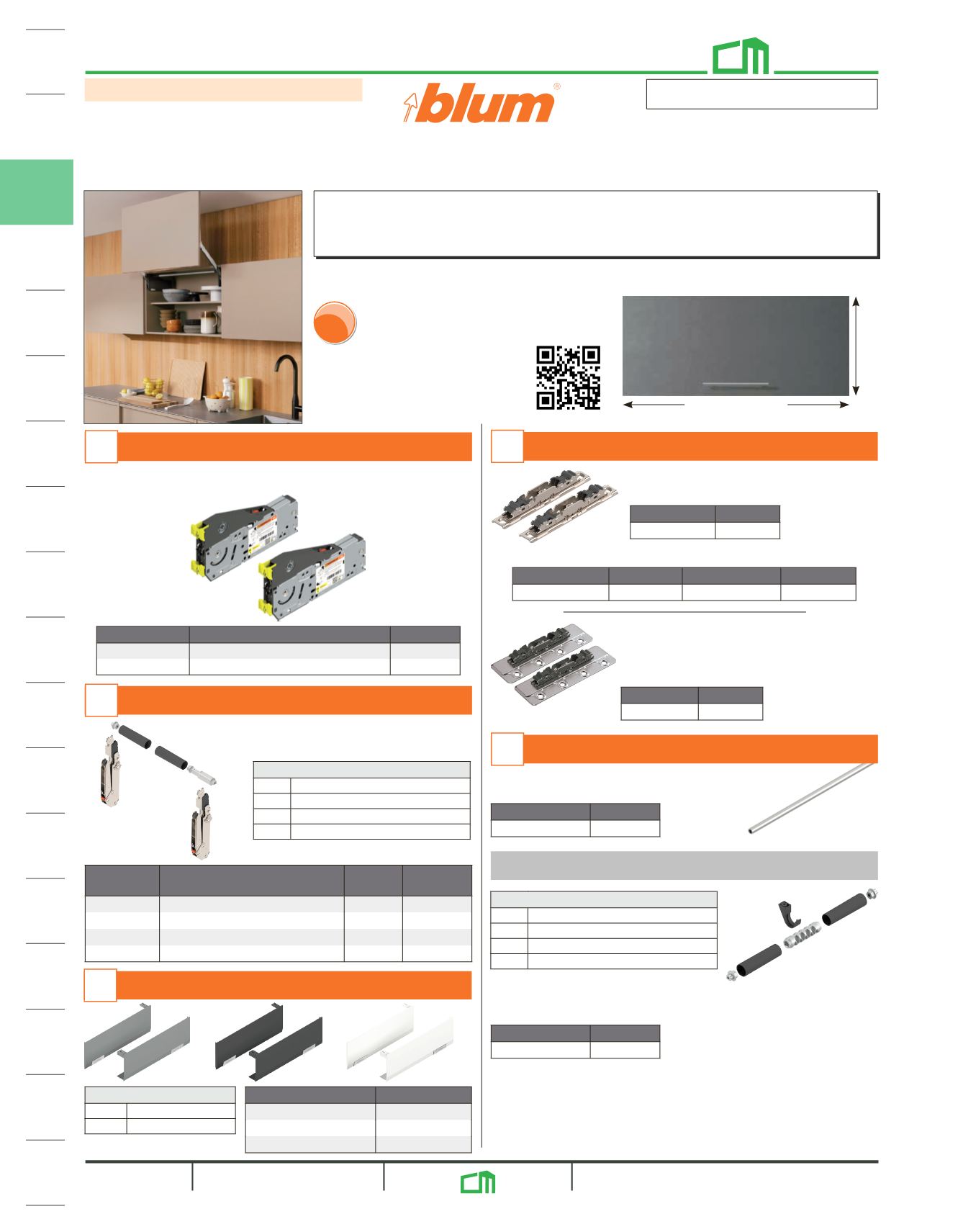

Charles McMurray Co. 2023 Catalog

300 / 1645

Order a cover set
Set No. List Set
$47.50
$47.50
$47.50
Minimum Cabinet Depth: 264 (10-3/8")
Cover Set includes
1 ea. LH/RH cover plate
2 ea. cover caps
3
AVENTOS HL top Lift Up System
Wood or Wide Aluminum Door for Panel and Face Frame Applications
Set includes (2) lift mechanisms and (8) #7 x 35mm (1-3/8")
wood screws.
Set No. Cabinet Height List Set
300-389 (11-3/4 to 15-1/4") $207.76
390-580 (15-1/4 to 22-3/4") $222.80
Aluminum, 1076 mm (42-5/16"), cut-to-length.
Interior cabinet width = 113 mm (4-7/16").
Item No. List Ea.
$40.84
Interior cabinet width >1190 (46-7/8")
Cutting for 5: Interior cabinet width ÷ 2 (1/16") - 105 (4-1/8")
Item No. List Ea.
$37.24
Assembly Set includes
2 ea. arm assembly
2 ea. cross stabilizer cover caps
1 ea. cross stabilizer rod adapter
1 ea. cross stabilizer length adapter
Assembly Set includes
2 ea. cross stabilizer cover caps
2 ea. cross stabilizer rod adapter
1 ea. cross stabilizer connecting piece
1 ea. cross stabilizer fixing
For complete specifications order Blum catalog
or visit
Set No. Cabinet Height
Door
Weight List Set
300-339 (11-3/4 to 13-1/4") 3-19 lb. $146.64
340-389 (13-3/8 to 15-1/4") 3-22 lb. $149.64
390-540 (15-1/4 to 21-1/4") 4-27 lb. $154.16
480-580 (18-7/8 to 22-3/4") 5-30 lb. $170.68
Order screws separately (8 required)
Item No. Door Description List
Wood #6x5/8" FHPH $4.84c
5 separate items are required to complete unit:
Arm assembly set, lift mechanism set, cross stabilizer rod, hardware set and cover set. Order screws
separately for hardware set. NOTE: a pozidrive bit (B2X2POZIBIT) and torx T20 screwdriver
are required to make necessary adjustments.
300 (11-13/16") - 580 (22-13/16")
door range
up to 1828 (72")
Order an arm assembly set
Order a lift mechanism set
Order a cross stabilizer rod
Order a cross stabilizer connecting set (optional)
Order a hardware set
SERVO-DRIVE for AVENTOS HL top see page 307a.
Standard hardware set includes 2 arm
assembly mounting plates.
Set No. List Set
$10.04
Special application: For large overlay
on 5-piece doors, includes 2 mounting
plates with brackets. Use (4) countersunk
self-tapping screws included (660.0950).
Set No. List Set
$22.92
1
2
4
5
11/24
Light Gray (HG) Dark Gray (TG) Silk White (SW)
Don't know the door weight?
Call us...we can help! ?
DOOR
HARDWARE
TOOLS FASTENERS SHOP &
FINISHING
ABRASIVES LACQUERS &
FINISHES
ADHESIVES FURNITURE
HARDWARE
EDGING &
DECOR.WOOD
SHELF &CLOSET
ORGANIZERSKITCH./BATH
LIGHTING SLIDES
DOORS &DRAWERS
LOCKS &CATCHES
AVENTOS &
LIFTS
CABINETHINGES
DECORATIVEHARDWARE
AVENTOS & LIFTS
800.533.0533 300 Prices subject to change without notice.
