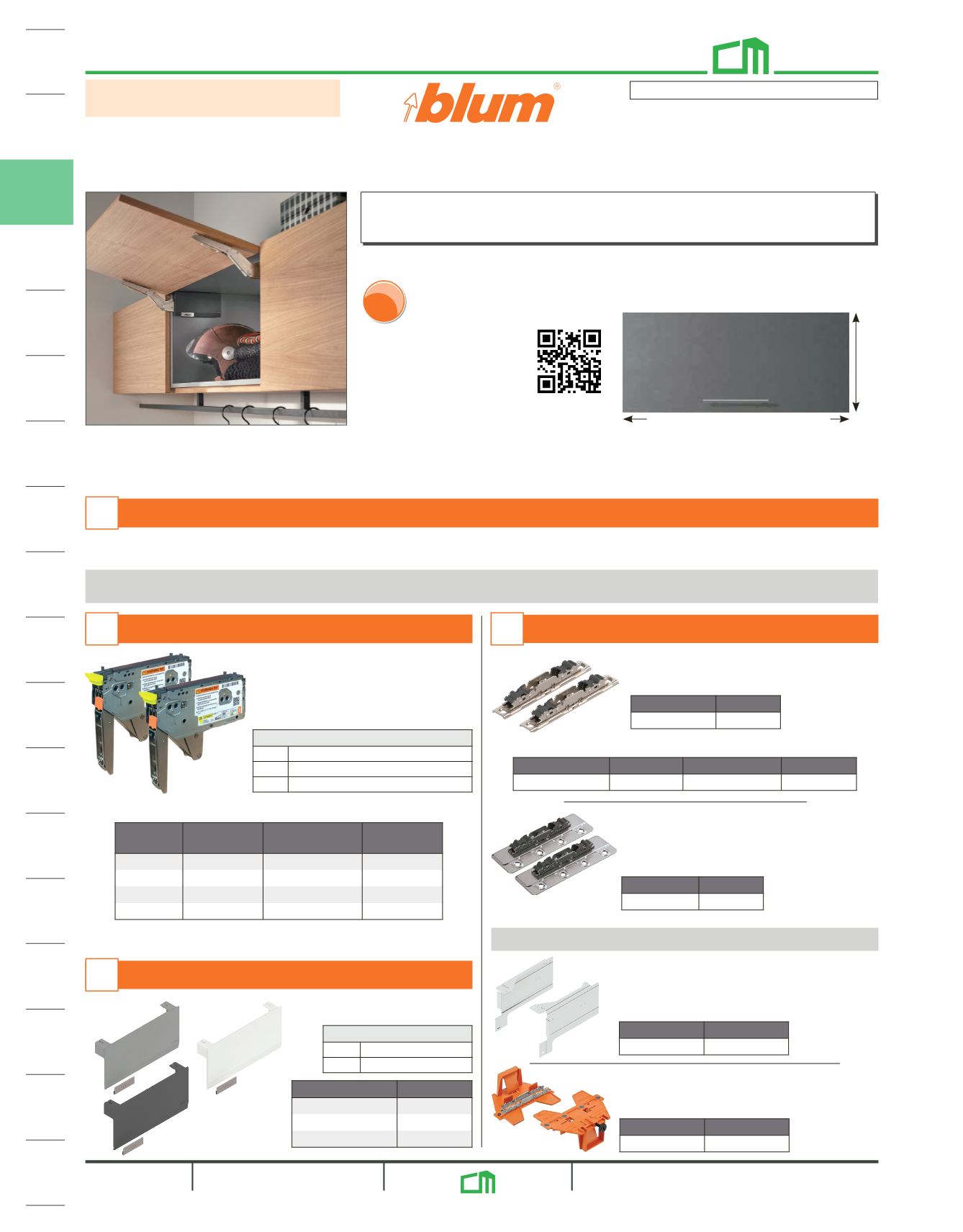

AVENTOS HK top Lift System - Integrated Opening Angle Adjustment
Wood or Wide Aluminum Door for Panel and Face Frame Applications
Power
Factor
Opening
Angle* Set No. List Set
36-139 107° $158.58
80-240 107° $158.58
150-450 107° $159.32
270-781 107° $186.14
The power factor can be increased by 50% when using a
third lift mechanism. *Infinitely variable adjustment.
Maximum front weight is 39 lbs. for two lift mechanisms.
3 separate items are required to complete unit:
Lift mechanism set, cover set and hardware set. Order screws separately for hardware
set. NOTE: a torx T20 screwdriver is required to make necessary adjustments.
Cover Set includes
1 ea. LH/RH cover plate
2 ea. cover caps
Set No. List Set
$30.70
$32.64
$32.64
Minimum Cabinet Depth = 187mm (7-3/8")
For complete specifications visit
Variable adjustment of lift mechanism, infinitely variable opening angle stop and integrated safety mechanism. No hinges required.
NOTE: For wide cabinets, an additional lift system attached to the center panel is recommended, to prevent the middle of the
front from sagging when open.
Calculate the power factor to determine the required lift mechanism set for your application. Note: Face frame cabinets require
B22K6001 brackets to mount the lift mechanisms.
Determine the power factor for the application
Order a lift mechanism set Order a hardware set
Order a cover set
Power factor (PF) = cabinet height (") x door weight (lbs.) including twice the handle weight.
205 (8") - 610 (24")
door range
cabinet widths up to 1828 (72")
Set includes
2 ea. Lift mechanisms
8 ea. #7 x 35mm (1-3/8") wood screws
1 ea. Positioning template
TIP-ON for AVENTOS HK top see page 303.
SERVO-DRIVE see page 308.
Optional Items
Face Frame Mounting Brackets
Minimum recess of 1/2". Includes left and
right brackets and mounting screws.
Set No. List Set
$57.20
Template for armassemblymounting plate.
Side overlay adjustable from 12-21 mm.
Calibrated scale for accuracy.
Set No. List Set
$81.72
Light Gray
(HG)
Silk White
(SW)
Dark Gray
(TG)
4
3
2
Order screws separately (8 required)
Item No. Door Description List
Wood #6x5/8" FHPH $4.84c
Standard hardware set includes 2 arm
assembly mounting plates.
Set No. List Set
$10.04
Special application: For large overlay
on 5-piece doors, includes 2 mounting
plates with brackets. Use (4) countersunk
self-tapping screws included (660.0950).
Set No. List Set
$22.92
Don't know the door weight?
Call us...we can help! ?
