Charles McMurray Co. 2023 Catalog

291 / 1645

• Lateral Swing Mechanism; Allows doors to swing out laterally in a small radius, ideal for tight front space application
• Full Access to Cabinet; Door will not get in the way when fully opened providing full access to the cabinet
• Easy Installation; Designed for standard 32 mm system mounting, with snap-on hinge
• 4-Way Adjustable; 3-way adjustable like concealed hinges and also with parallel adjustment
• Various Applications; Can be used in single or double door configuration. Ideal for cabinets in kitchen, bathroom, laundry room etc.

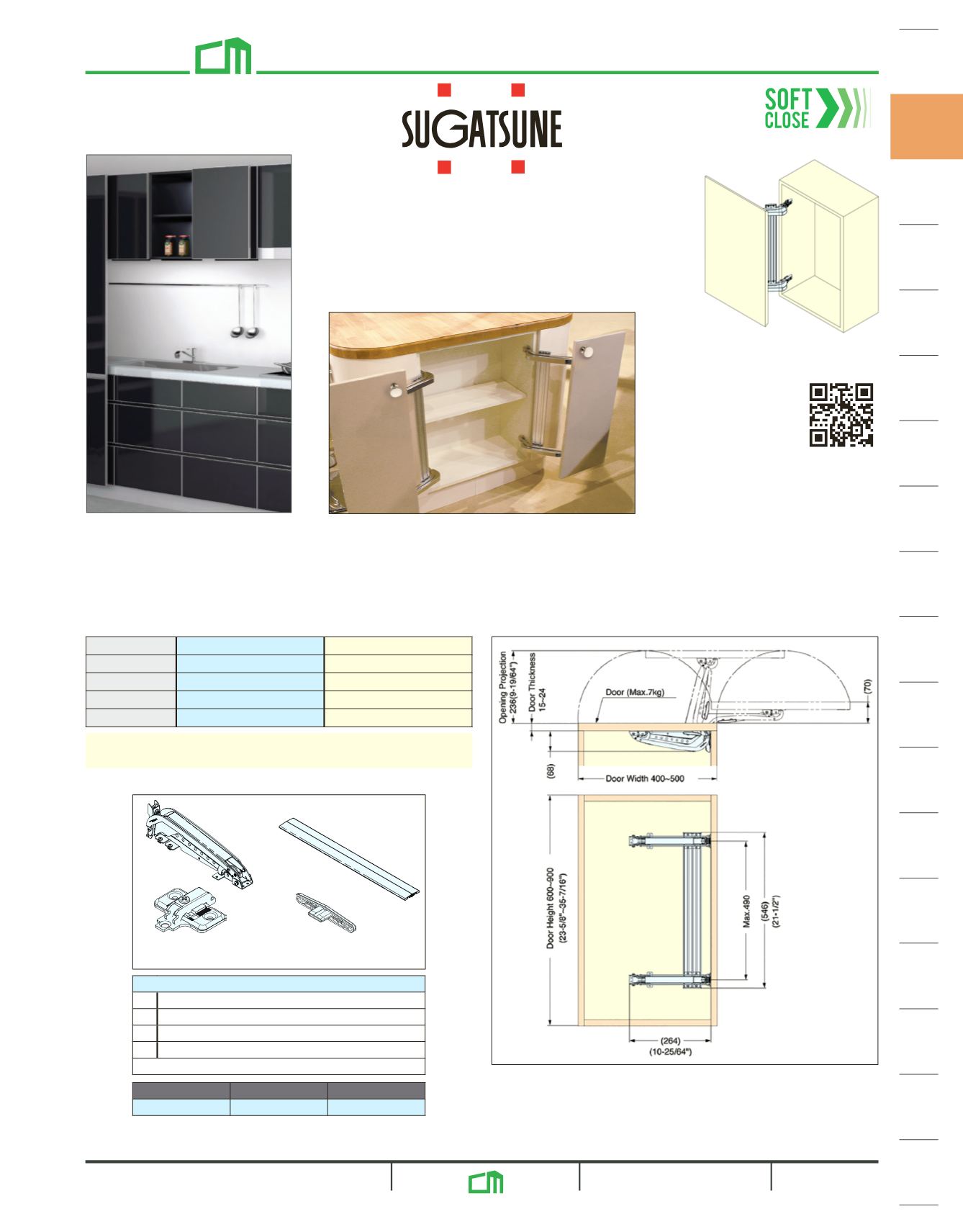

Monoflat LIN-X Hinge Kit
Lateral Swing Mechanism - Soft-Close
Application Standard Kit Tall/Heavy*
Door Width 15-3/4" to 19-11/16" 15-3/4" to 19-11/16"
Door Height 23-5/8" to 35-7/16" 23-5/8" to 94-1/2"
Door Thickness 5/8" to 15/16" 5/8" to 15/16"
Door Weight Max. 15.4 lbs. Max. 37.4 lbs.
*Can be used on heavier/taller doors by adding hinge
arms (special order).
Standard Kit includes
2 Soft-close hinge arms
2 Mounting plates
1 Connecting bar
2 Bar end caps
Screws
Set No. Overlay List Set
3/4" $306.08
Mounting Plate End Cap
L
Connecting Bar Single Arm
(Hinge)
