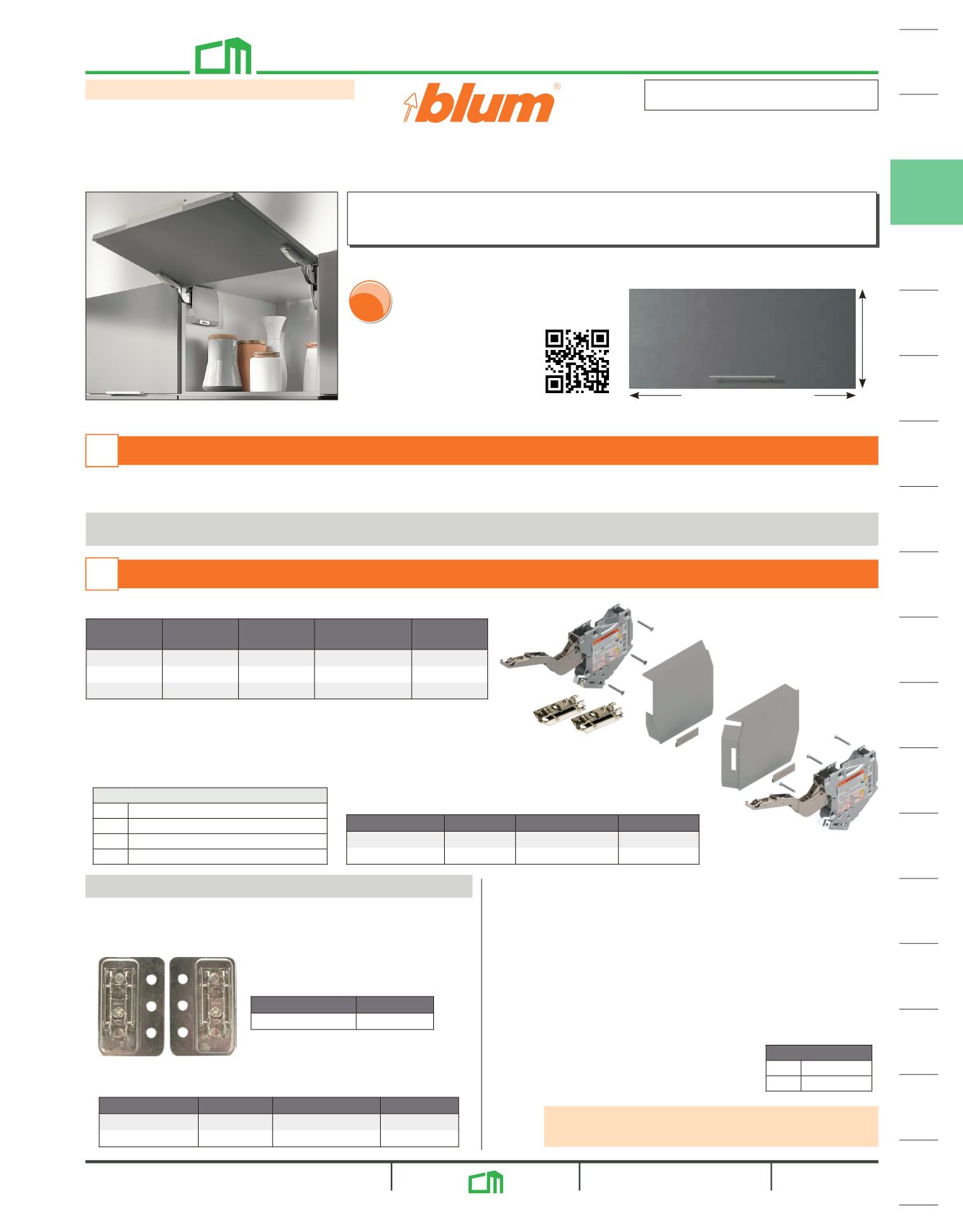

AVENTOS HK-S Stay Lift System (Small Doors)

Wood or Wide Aluminum Door for Panel and Face Frame Applications

For small wall cabinets above a refrigerator or pantry. No hinges required.

Kit includes:

Lift mechanism kit, cover plates and door mounting plates. Order screws for

door mounting plates separately.

NOTE: a pozidrive bit is required to make necessary

adjustments

(B2X2POZIBIT)

.

Minimum Cabinet Depth = 165mm (6-1/2")

For complete specifications order Blum catalog

B-AVENTOS-LIFTS

or visit

www.blum.com

Mounting Plate with Bracket Set

For use with large overlay 5-piece doors on face frame application

Set includes left and right mounting

plates with brackets.

Set No.

List Set

B175H3F00

$21.80

Optional Item

Screws for door mounting plates sold separately

(4 required per set).

Item No.

Door

Description List

MCFPT586-1C

Wood #6x5/8" FHPH $4.84c

B7072A

Aluminum #7x13mm $0.38ea

Power factor (PF) = cabinet height (") x door weight (lbs.) including twice the handle weight.

Calculate the power factor to determine the required lift mechanism for your application. See formula below.

Note: Face frame cabinets must be blocked out flush with the frame on the sides to mount the AVENTOS HK-S lift mechanisms.

Determine the power factor for the application

Order lift mechanism kit

186 (7-3/8") - 610 (24")

door range

381 (15") - 1828 (72")

Screws for door mounting plates sold separately

(4 required per set).

Item No.

Door

Description List

MCFPT586-1C

Wood #6x5/8" FHPH $4.84c

B7072A

Aluminum #7x13mm $0.38ea

TIP-ON for AVENTOS HK-S see pages 304.

B175H3100

door mounting plates

(also sold separately.)

Kit includes

2 ea Lift mechanisms

2 ea Cover plates w/caps (R/L)

2 ea Door mounting plates (B175H3100)

6 ea #7 x 35mm (1-3/8") wood screws

Use the more powerful lift mechanism for overlapping areas.

Power

Factor

Opening

Angle Kit No.

Cover Plate

Finish** List Kit

19-44*

107°

B20K2B

HG, TG

$102.00

35-88

107°

B20K2C

HG, TG

$108.66

84-195

107°

B20K2E

HG, TG

$110.18

*Spring on left mechanism only. The power factor can be increased by

50% when using a third lift mechanism. **Specify finish when ordering.

Finishes

HG Light Gray

TG Dark Gray

NOTE: Restriction clips available,

B20K7A11

to 75°

or

B20K7A41

100° (See catalog page 310).

1

2

Click here for Blum online product configurator bit.ly/4bfiKUY

Don't know the door weight?

Call us...we can help!

?
