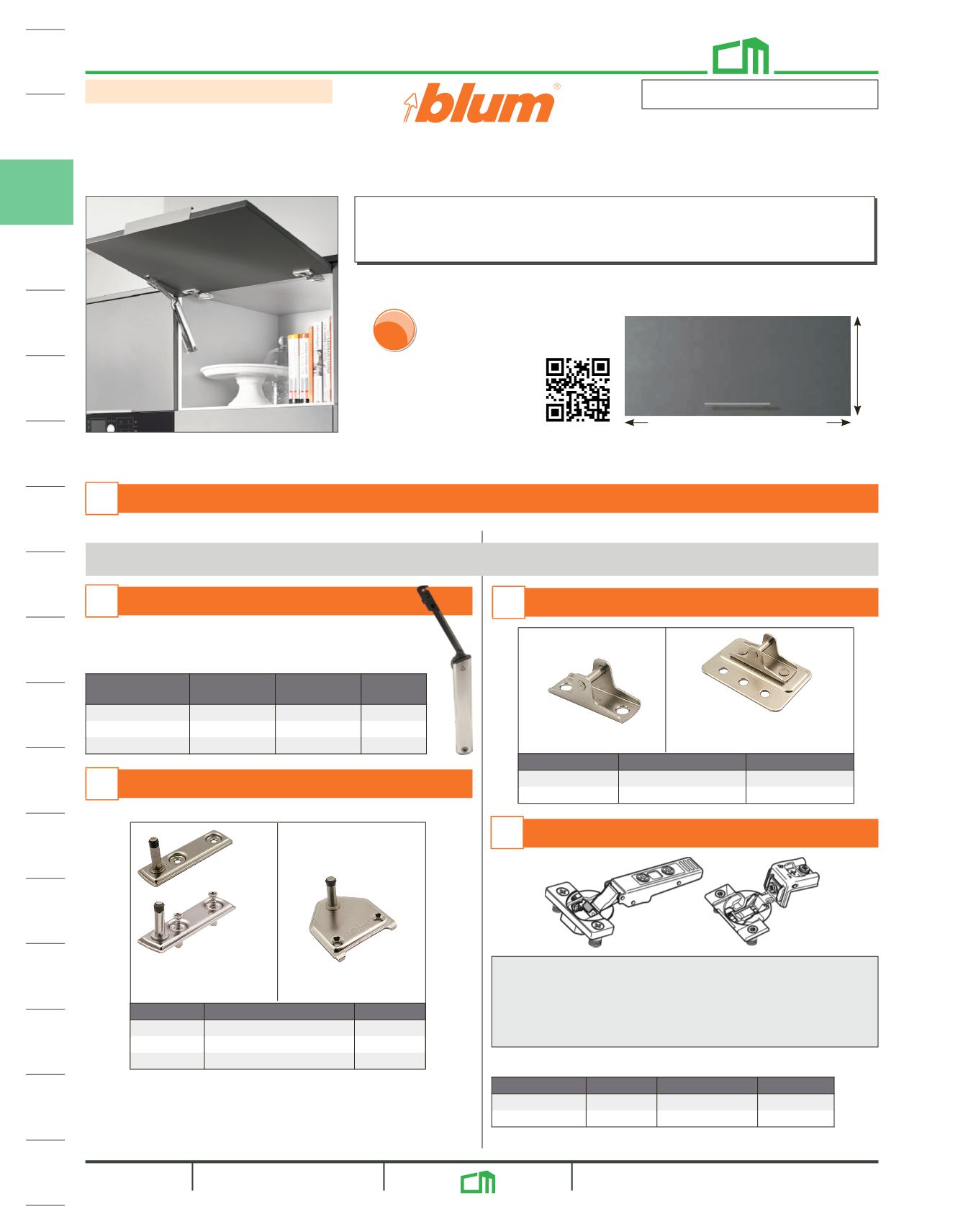

AVENTOS HK-XS Stay Lift System
Wood or Wide Aluminum Door for Panel and Face Frame Applications
For shallow depth wall cabinets. The variable stop allows the lift system to remain in any
desired position and always within easy reach.
Power Factor
Range
Opening
Angle Lift No. List Ea.
18-88 105°* $32.06
44-132 105°* $32.06
70-158 105°* $32.06
Hinge Recommendations:
Order CLIP top BLUMOTION 110° hinge (catalog pages 180-181) or
COMPACT CLIP 31C3 hinge (catalog page 218) or
COMPACT CLIP 30C2 hinge (catalog page 217)
(3) hinges at cabinet width 900 (35-1/2") and/or power factor 158
(4) hinges at cabinet width 1200 (47-1/4") and/or starting at power factor 238
Minimum Cabinet Depth = 125 mm (4-7/8")
For complete specifications order Blum catalog
B-AVENTOS-HK-XS or visit
5 separate items are required to complete unit:
Lift mechanism(s), cabinet mounting plate, door mounting plate, BLUMOTION hinges and
baseplates. Order screws separately. NOTE: a pozidrive bit is required to make neces-
sary adjustments .
Use the more powerful lift mechanism for overlapping
areas. *Opening angle will depend on the hinge used.
Panel
Screw-On
EXPANDO
Face Frame
Screw-On
Item No. Description List Ea.
Panel, screw-on $4.36
Panel, EXPANDO dowel $5.66
Face Frame, screw-on $11.92
Screw-on
For large overlay 5-piece doors
Screw-On
Item No. Description List Ea.
Screw-on $3.22
Screw-on $11.24
Screws for door mounting plates sold separately.
Item No. Door Description List
Wood #6x5/8" FHPH $4.84 c
Aluminum #7x13mm $0.38 ea
Power factor (PF) = cabinet height (") x door weight (lbs.) including twice the handle weight.
Calculate the power factor to determine the required lift mechanism for your application. See formula below.
Determine the power factor for the application
Order lift mechanism
Order cabinet mounting plates
Order hinges & baseplates
Order door mounting plates
238 (9-3/8") - 610 (24")
door range
cabinet widths up to 1828 (72")
TIP-ON for AVENTOS HK-XS see page 299.
