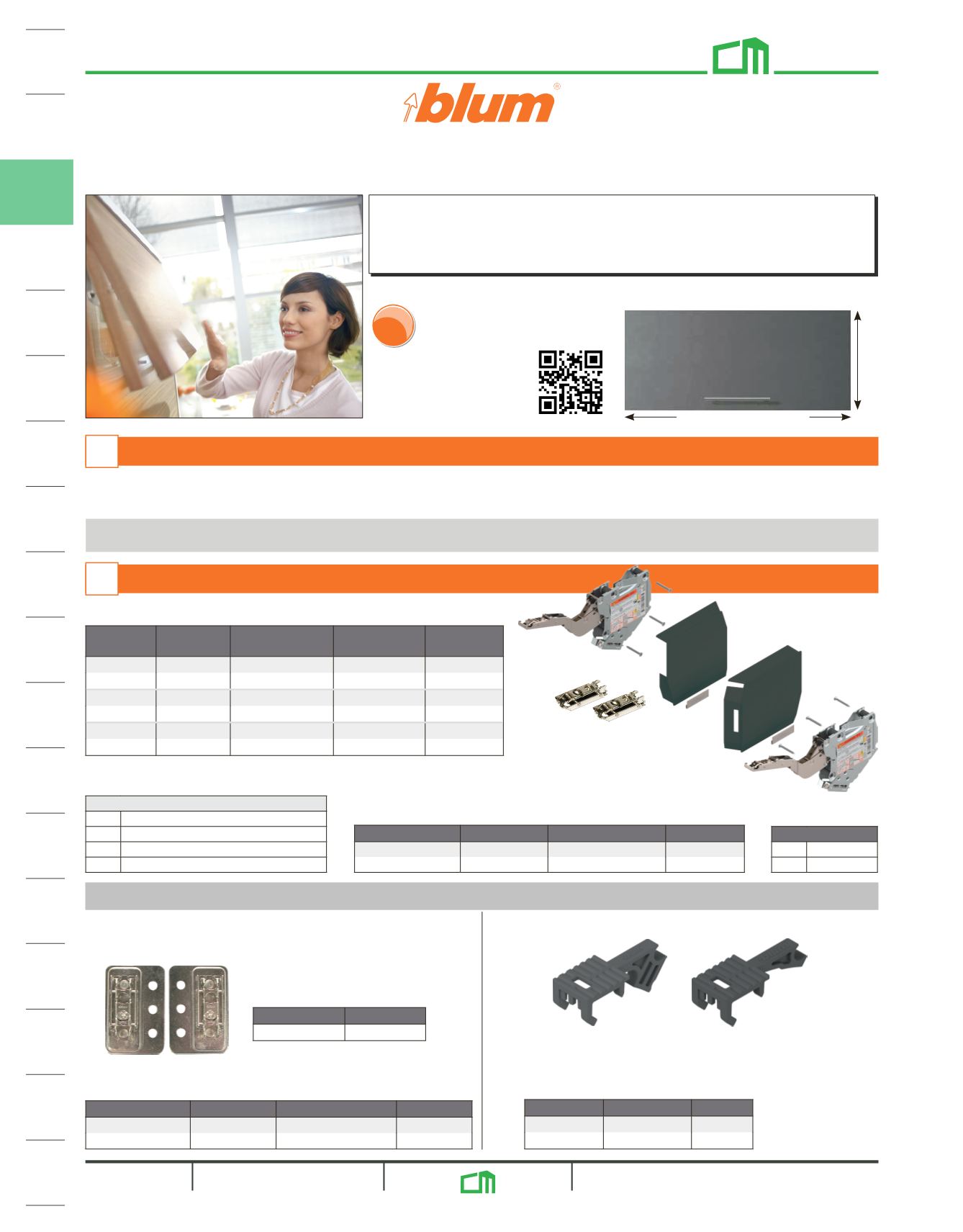

Charles McMurray Co. 2023 Catalog

304 / 1645

TIP-ON for AVENTOS HK-S Stay Lift System
Wood or Wide Aluminum Door for Panel and Face Frame Applications
Kit includes:
Lift mechanism with cover set, door mounting plates and TIP-ON mechanism. Screws
for lift mechanism (ten #7x35 mm (1-3/8") wood screws) are included with the lift
mechanism. Order screws separately for mounting plates. NOTE: a pozidrive bit is
required to make necessary adjustments .
Screws for door mounting plates sold separately
(4 required per set).
Item No. Door Description List
Wood #6x5/8" FHPH $4.84c
Aluminum #7x13mm $0.38ea
Opening Angle Restriction Clips
Two required per lift mechanism set. Sold per each.
Item No. Description List Ea.
75° $2.78
100° $2.78
• Restricts the opening angle of the door
• Prevents the door from hitting an object above
• Keeps the handle within reach on very high cabinets
Minimum cabinet depth = 165 mm (6-1/2")
Mounting Plate with Bracket Set
For use with large overlay 5-piece doors on face frame application
Set includes right and left mounting
plates with brackets.
Set No. List Set
$21.80
Optional Items
Screws for door mounting plates sold separately (4 required
per set).
Item No. Door Description List
Wood #6x5/8" FHPH $4.84c
Aluminum #7x13mm $0.38ea
Use the more powerful lift mechanism for overlapping areas.
Power
Factor
Opening
Angle Kit No.
Cover Plate
Finish List Kit
19-44* 107° HG $115.36
19-44* 107° B20K2B-TNA TG $102.72
35-88 107° HG $122.04
35-88 107° B20K2C-TNA TG $109.40
84-195 107° HG $123.56
84-195 107° B20K2E-TNA TG $110.92
*Spring on left mechanism only.. The power factor can be increased by 50%
when using a third lift mechanism.
Power factor (PF) = cabinet height (") x door weight (lbs.) including twice the handle weight.
75° 100°
Order a lift mechanism kit
Calculate the power factor to determine the required lift mechanism for your application. See formula below.
Note: Face frame cabinets must be blocked out flush with the frame on the sides to mount the AVENTOS HK-S lift mechanisms.
Determine the power factor for the application
186 (7-3/8") - 610 (24")
door range
381 (15") - 1828 (72")
Kit includes
1 ea TIP-ON lift mechanism set
1 ea Cover plate w/cover caps (R/L)
2 ea Door mounting plates (B175H3100)
6 ea #7 x 35mm (1-3/8") wood screws
Door mounting plates
(also sold separately.)
Finishes
HG Light Gray
TG Dark Gray
1
2
Don't know the door weight?
Call us...we can help! ?
DOOR
HARDWARE
TOOLS FASTENERS SHOP &
FINISHING
ABRASIVES LACQUERS &
FINISHES
ADHESIVES FURNITURE
HARDWARE
EDGING &
DECOR.WOOD
SHELF &CLOSET
ORGANIZERSKITCH./BATH
LIGHTING SLIDES
DOORS &DRAWERS
LOCKS &CATCHES
AVENTOS &
LIFTS
CABINETHINGES
DECORATIVEHARDWARE
AVENTOS & LIFTS
800.533.0533 304 Prices subject to change without notice.
Mc
