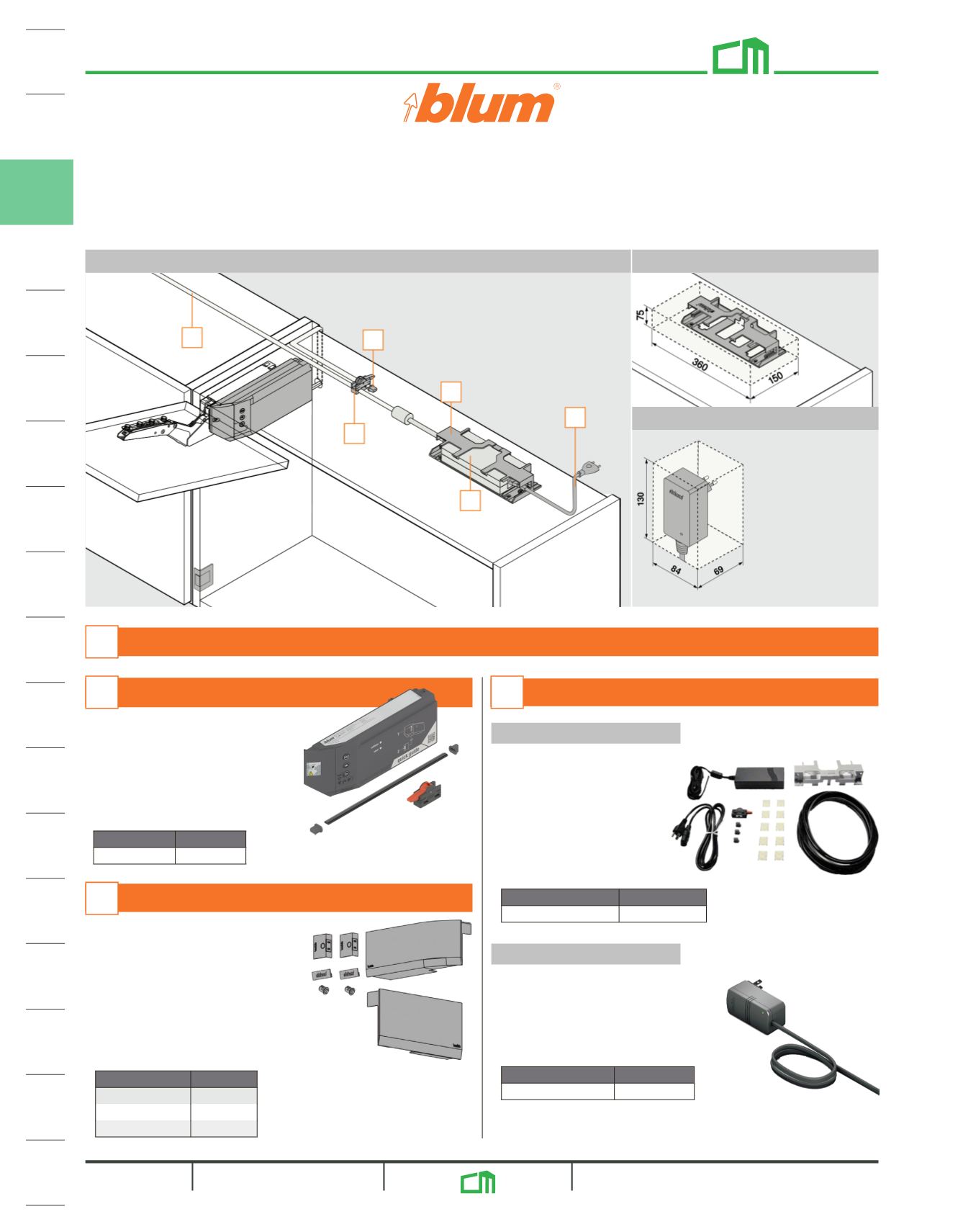

Space requirement Assembly on cabinet top panel
Safety distance
A 30mm (1-3/16")
safety distance must
be maintained for air
circulation. If not ob-
served SERVO-DRIVE
power supply unit
could overheat.
Only one SERVO-DRIVE power supply unit can be connected
to each distribution cable.
Distribution
cable
Cable
connector
Power cord
1
6
2
5 Power supply unit housing
3 Cable end protector
Power
supply
unit
4
SERVO-DRIVE Opening Feature
For AVENTOS HK top
After lift mechanism installation and adjustment,
SERVO-DRIVE components are attached to the lift mechanism and cabinet.
Order appropriate AVENTOS lift mechanism and hardware set for your application (see pg 296).
Set includes:
SERVO-DRIVE drive unit
59" distribution cable
Cable connector
Cable end protector (2)
Set No. List Set
$877.82
Set includes:
SERVO-DRIVE cover plate (left)
Cover plate (right)
Cover cap (2)
SERVO-DRIVE switch (2)
Ø5 mm Blum distance bumper (6)
Color: Light gray (HG)
Dark gray (TG)
Silk White (SW)
Set No. List Set
$264.18
$281.58
$287.32
Order a Power Supply Order a SERVO-DRIVE Set
Order a Cover Set
1
2 4
3
For multiple lift systems
For single lift system
Set includes:
Power supply
Wall mount bracket
Three-prong power cord
Cable connector
Cable end protector (3)
Cable clips (qty 10)
19' universal cable
Set No. List Set
$618.12
Supplies power to a single
SERVO-DRIVE unit:
12W plug-in power supply unit
44" cable (w/SERVO-DRIVE
distribution cable extendable
to max. 78-3/4")
Item No. List Ea.
$228.06
NOTE: for 3 or more lift mechanisms,
(2) SERVO-DRIVE units recommended.
