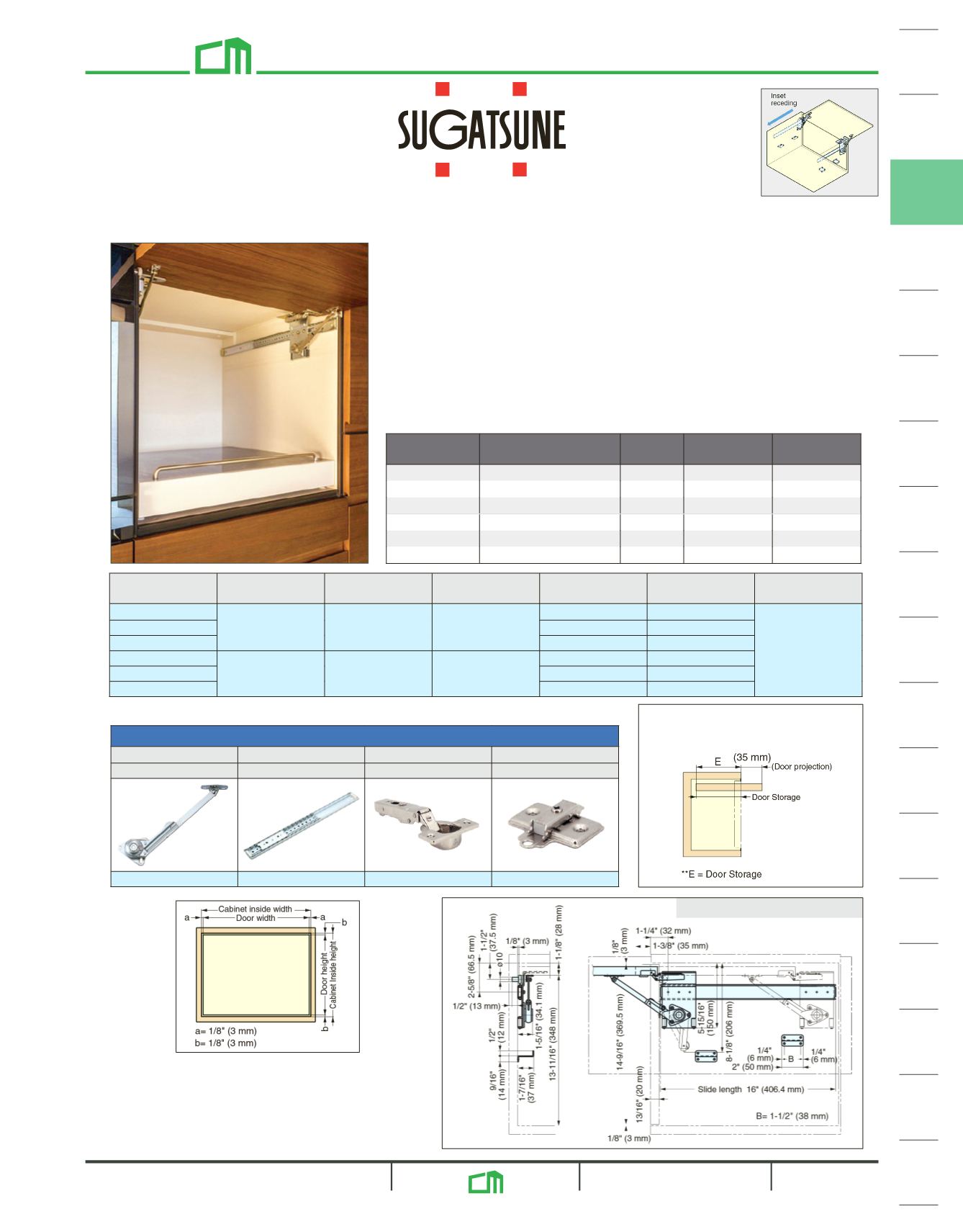

312a / 1645
• For upward-opening inset receding flap doors
• Adjustable speed soft-close
• Flap door retracts inside cabinet, allowing cabinet installation above
• Patented LAPCON technology provides a smooth and quiet motion
• Recommended Door Size and Weight:
Width: 23-5/8" - 47-1/4"
Height: 11-3/16" - 16-13/16" (+ 19/32" - 13/16" Door Thickness)
Weight: 3.1 - 11 lbs.
• Designed to operate at room temperature 32-104°F
• Includes steel screws
• Steel slide & hinge/zinc alloy soft-down stay with nickel finish
Sold as set, screws included.
Set No.
Door Weight
Box List Set
List Set
Full Box
IF-360S-14
3.1 - 5.5 lbs.
10
$223.92 $187.28
IF-360S-16
3.1 - 5.5 lbs.
10
$250.78 $209.74
IF-360S-19
3.1 - 5.5 lbs.
10
$286.60 $239.72
IF-360W-14
5.9 - 11 lbs.
10
$272.26 $227.72
IF-360W-16
5.9 - 11 lbs.
10
$299.14 $250.18
IF-360W-19
5.9 - 11 lbs.
10
$334.96 $280.14
Lapcon Inset Receding Door Mechanisms
With Soft-Close
Item No.
Torque
Moment
Door
Weight
Max. Door Width Recommended
Door Height
E=Door Storage
(**Shown Below)
Door Thickness
(T)
IF-360S-14*
17-60 lbs/in.
3.1-5.5 lbs.
23-5/8"
11-3/16" + T 10-7/16" + T
19/32"-13/16"
IF-360S-16*
13-3/4" + T
12-3/8" + T
IF-360S-19*
16-13/16" + T 15-7/16" + T
IF-360W-14
34-121 lbs/in.
5.9-11 lbs.
47-1/4"
11-3/16" + T 10-7/16" + T
IF-360W-16
13-3/4" + T
12-3/8" + T
IF-360W-19
16-13/16" + T 15-7/16" + T
*IF-360S comes with NSDX-35LK.
Parts included in set
Soft-Down Stay
Slide
Concealed Hinge
Mounting Plate
NSDX-35 (L/R)
AL-78
360-C26/19T
360-P4W-32T
1 or 2/door
2 pcs/door
2 pcs/door
2 pcs/door
Recommended door height when door
protrudes 1-3/8" from cabinet with door
stored.
How to adjust:
1. When door is installed, if vertical dimensions of clearance (a)
in opening direction and clearance (b) in height direction are
different, make adjustment with mounting plate adjustment
screw of concealed hinge.
2. Adjust door closing speed with the speed adjustment screw of
soft-down stay.
13/16" thick door using IF-360S-16
