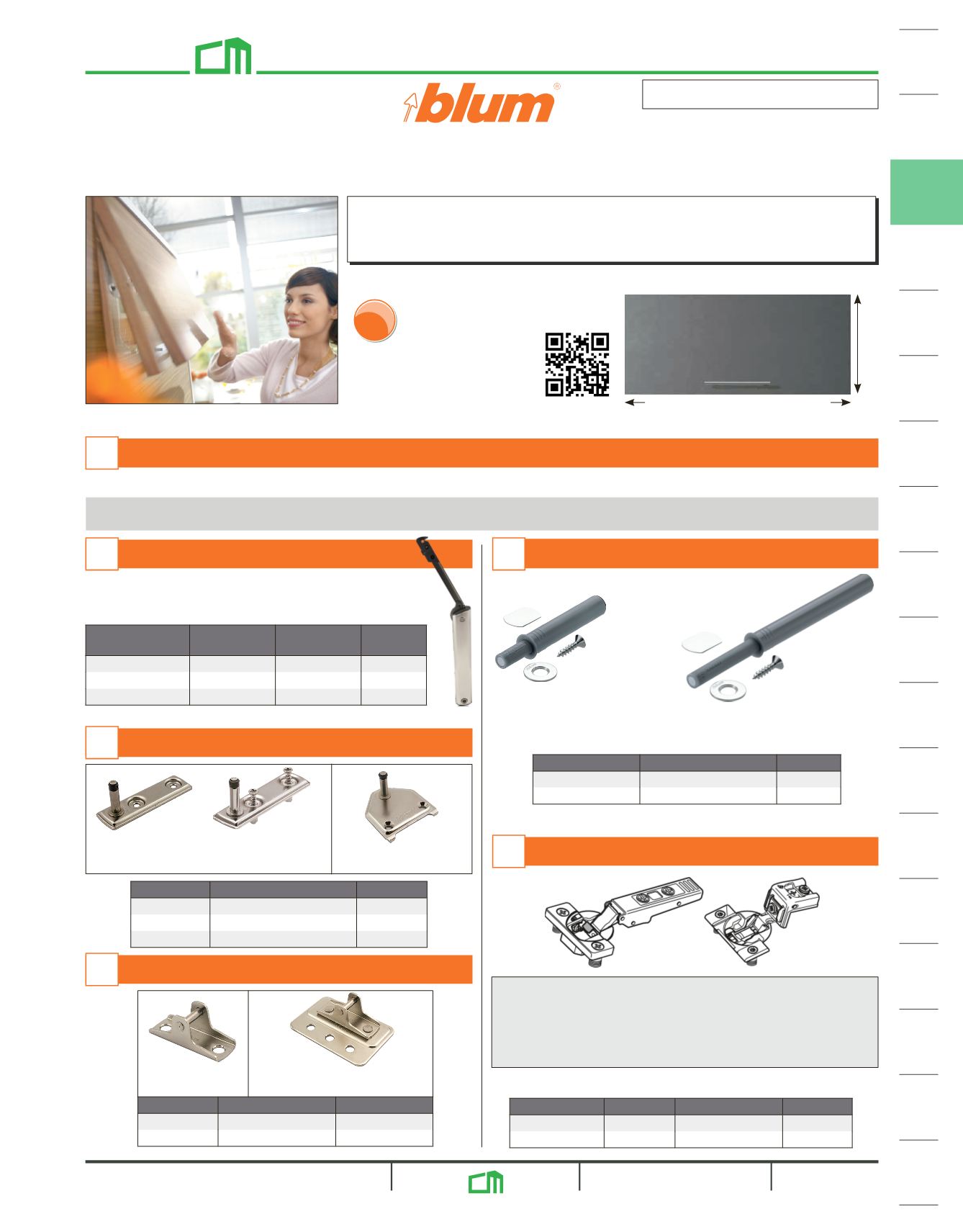

Charles McMurray Co. 2023 Catalog

299 / 1645

TIP-ON for AVENTOS HK-XS Stay Lift System
Wood or Wide Aluminum Door for Panel and Face Frame Applications
Calculate the power factor to determine the required lift mechanism for your application. See formula below.
Minimum Cabinet Depth = 125 mm (4-7/8")
For complete specifications order Blum catalog
B-AVENTOS-HK-XS or visit
6 separate items are required to complete unit:
Lift mechanism(s), TIP-ON mechanism, door mounting plate, cabinet mounting plate, CLIP
top free-swing hinges and baseplates. Order screws separately. NOTE: a pozidrive bit is
required to make necessary adjustments .
Order door mounting plates
Works for both overlay and inset applications. For door heights
greater than 400 mm use Gray nylon.
Set No. Description List Set
For standard doors $12.64
For large doors $15.82
Item No. Description List Ea.
Panel-screw-on $4.36
Panel-EXPANDO dowel $5.66
Face Frame-screw-on $11.92
Screw-on
For large overlay 5-piece doors
Screw-On
Item No. Description List Ea.
Screw-on $3.22
Screw-on $11.24
Screws for door mounting plates sold separately
Item No. Door Description List
Wood #6x5/8" FHPH $4.84c
Aluminum #7x13mm $0.38ea
Power factor (PF) = cabinet height (") x door weight (lbs.) including twice the handle weight.
Determine the power factor for the application
Order lift mechanism
Order cabinet mounting plates
Order a TIP-ON mechanism set
Order hinges & baseplates
238 (9-3/8") - 610 (24")
door range
cabinet widths up to 1828 (72")
Panel
Screw-On
EXPANDO
Face Frame
Screw-On
Screw-On EXPANDO
Dowel
For shallow depth wall cabinets. The variable stop allows the lift system to remain in any desired position and always within easy reach.
Power Factor
Range
Opening
Angle Lift No. List Ea.
16-70 105°* $33.96
44-106 105°* $33.96
70-141 105°* $33.96
Hinge Recommendations:
Order CLIP top BLUMOTION 110° hinge (catalog pages 180-181) or
COMPACT CLIP 31C3 hinge (catalog page 218) or
COMPACT CLIP 30C2 hinge (catalog page 217)
(3) hinges at cabinet width 900 (35-1/2") and/or power factor 158
(4) hinges at cabinet width 1200 (47-1/4") and/or starting at power factor 238
Use the more powerful lift mechanism for overlapping
areas. *Opening angle will depend on the hinge used.
1
2 5
6
3
4
