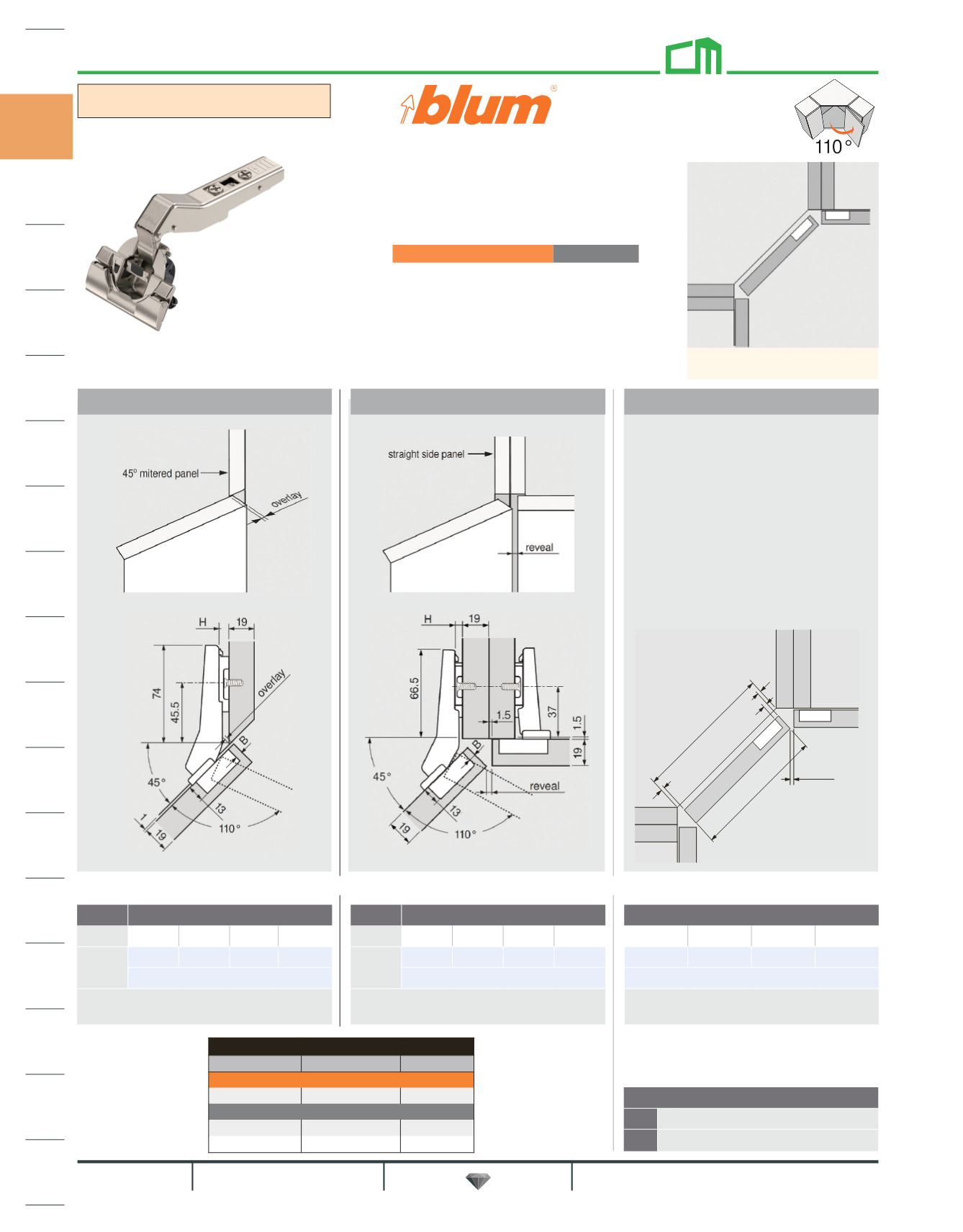

Calculating Door Width
110° Hinges - 45° Diagonal
Max. Door Thickness 3/4"
Hinges
Item No. Description List Ea. 50
BLUMOTION Soft-Close
INSERTA $13.78
Self-Close
Press-in $10.70
INSERTA $12.30
For door thickness greater than
19 mm a trial is recommended.
Inside Corner Overlay Application
Step 1. Using the boring distance (B) deter-
mined in the reveal table, cross reference to
find the side gap distance (Y) in the table below.
Step 2. Use the following formula to find the
door width. Door width = interior width minus
(Y x 2).
Example: interior width = 400 mm,
side gap (Y) = 4.5 mm.
391 = 400 minus (4.5 x 2)
* All 35 mm and 8 mm holes must be a minimum of 13 mm deep
B
Y
interior width
door width
Y
reveal
H Overlay
0 1 2 3 4
3 4 5 6
B = boring distance
H Reveal
0 6 5 4 3
3 4 5 6
B = boring distance
NOTE: Reveal based on 19 (3/4") side panel
Y = side gap
5.5 4.5 3.5 2.5
3 4 5 6
B = boring distance
NOTE: Calculations based on 19 (3/4")
door thickness
Abbreviations
H = Plate height
Y = Side gap
Order hinges & baseplates separately.
See pages 216-220 for baseplate options.
* *
Features
• Available in BLUMOTION Soft-Close Self-Close
• Deactivation switch for small/light doors
• Overload safety feature
DOOR
HARDWARE
TOOLS FASTENERS SHOP &
FINISHING
ABRASIVES LACQUERS &
FINISHES
ADHESIVES FURNITURE
HARDWARE
EDGING &
DECOR.WOOD
SHELF &CLOSET
ORGANIZERSKITCH./BATH
LIGHTING SLIDES
DOORS &DRAWERS
LOCKS &CATCHES
AVENTOS &
LIFTS
CABINETHINGES
DECORATIVEHARDWARE
CABINET HINGES
