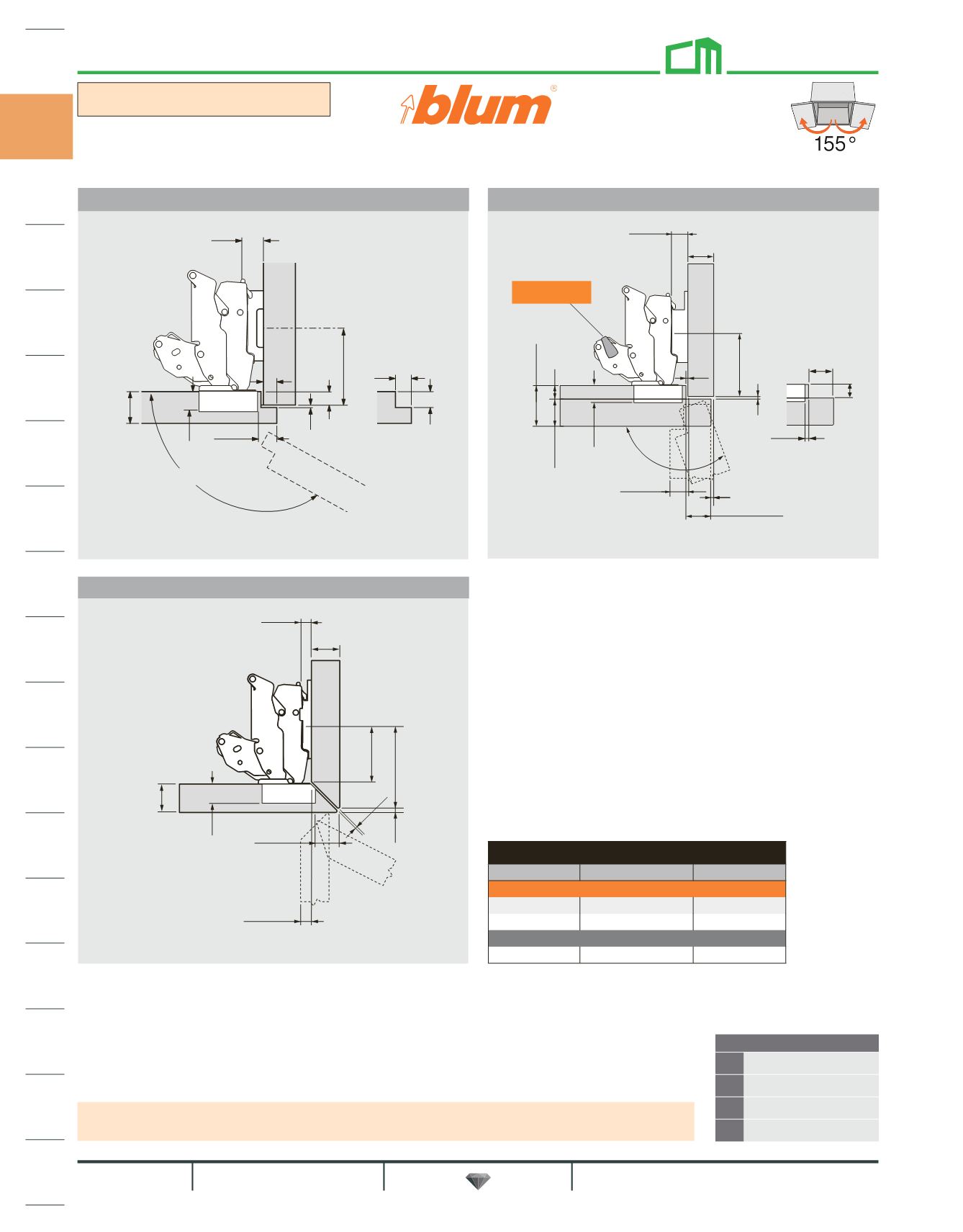

Thick Lip Door Lip Door Application
155° Opening Zero Protrusion Hinges
Half-Cranked Special Applications
19
18.5 overlay
46.5
10
11.7
28 max
2
1.5
2
110°
18 max
H = 6
P = 13.2
10
17
B = 3
lip detail
NOTES: These applications can be achieved in face frame cabinets by blocking out behind the frame.
= 110° angle restriction clip
Two-Sided and Four-Sided Mitered
54.6
2.9
19
1.4
37
P = 7.2
H = 0
19
11.7
B= 15.6
Trial application recommended
Suggested baseplate:
Trial application recommended
Suggested baseplate:
Trial application recommended
Suggested baseplate:
Half-Cranked Hinges
Item No. Description List Ea. 25
BLUMOTION Soft-Close
Screw-on $20.60
INSERTA $23.48
Self-Close
Screw-on $15.58
46
11
9
B =11 9.5
9.5
19 7
2.5 lip detail
H = 3
155°
Abbreviations
H = Plate height
P = Door protrusion
S = Side arm protrusion
W = Side panel width
Order hinges & baseplates separately.
See pages 216-220 for baseplate options.
