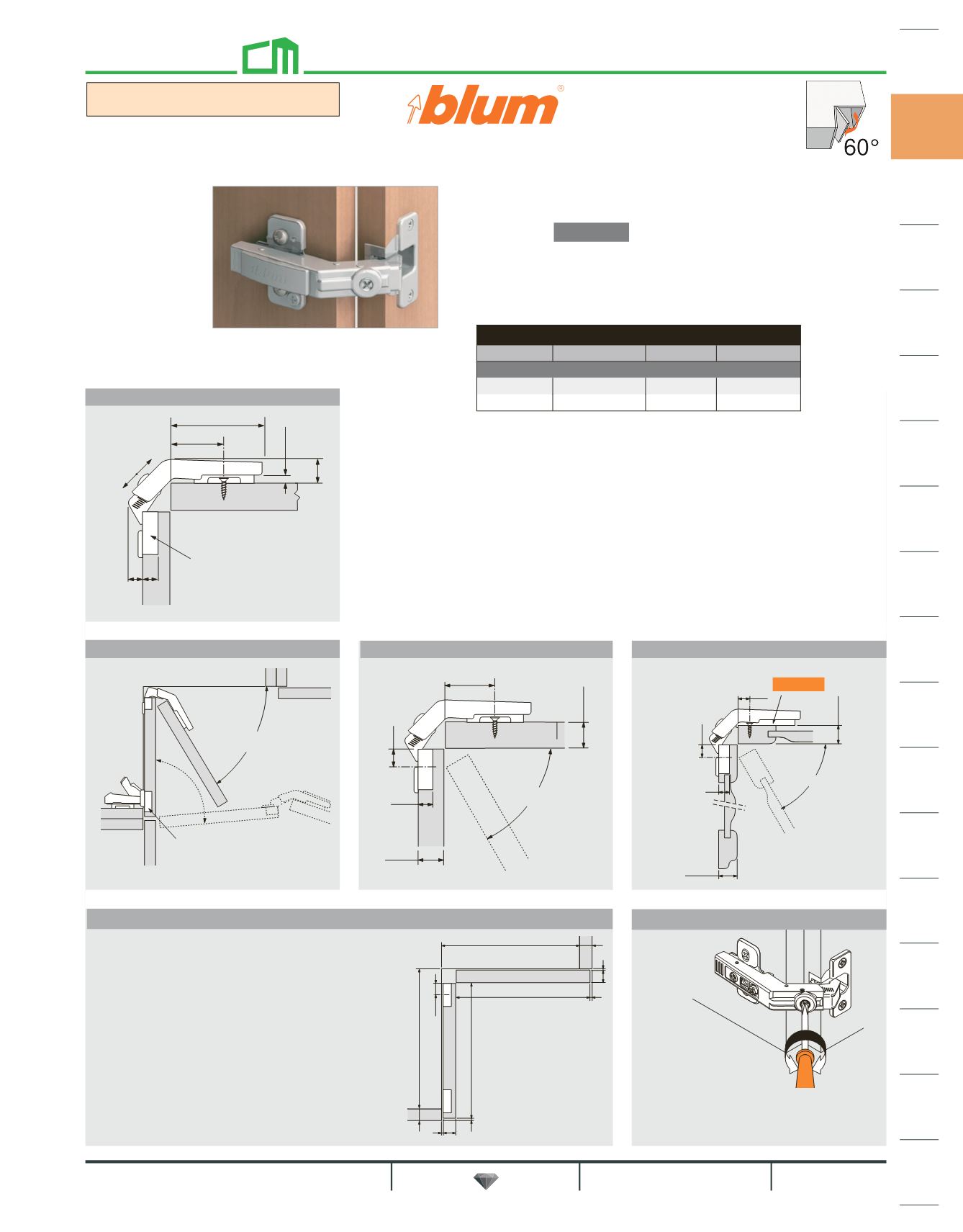

Charles McMurray Co. 2021 Catalog

213 / 1590

Bi-Fold Hinge
60° Opening - For Corner Lazy Susans
4 7 18
37
65
14
35 mm bore
11
H = 0
11
16 - 21
12.5
37
16 - 21
60o
Calculating Door Sizes
With Flat Panel Doors With Profile Doors
Adjustment
General Specifications
The spiral tech cam adjustment of the CLIP
top bi-fold hinge allows from +4 mm to -7 mm
adjustment.
IW
DW
W
R
W R
IW
DW
12.5
GT
TG
The doors for a CLIP top bi-fold application can be of equal or
unequal width. To calculate the door width (DW) of each door:
Step 1: Add the interior width (IW) to the side panel width (W).
Step 2: Subtract door thickness (T) and reveal (R).
Step 3: Subtract gap (G) and bumper thickness behind
adjacent door.
Formula: DW = (IW + W) - T - R - G
Example: DW = (500 + 19) - 19 - 3 - 1
DW = 496 mm
Inside Corner
Applications
60 o
Use with 170° hinge on
adjacent door
175H6000
frame adapter plate
11
16 - 21
12.5
9.5
16 - 21
60o
Hinges
Item No. Description List Ea. List Ea. 25
Self-Close
Screw-on $15.22 $12.94
Press-in $15.08 $12.88
Order hinges & baseplates separately.
See pages 216-220 for baseplate options.
Features
• Available in Self-Close
• Spiral-tech side adjustment for door gap
• Spiral-tech depth adjustment for in/out
• Four-dimensional adjustment
DECORATIVE
HARDWARE
CABINET
HINGES
AVENTOS &
LIFTS
LOCKS & CATCHES
DOORS & DRAWERS
SLIDES
LIGHTING ORGANIZERS
KITCH./BATH
SHELF & CLOSET
EDGING & DECOR.WOOD
FURNITURE HARDWARE
ADHESIVES LACQUER &
FINISHES
ABRASIVES
SHOP & FINISHING
FASTENERS
TOOLS
DOOR
HARDWARE
CABINET HINGES
800.533.0533 2021 1946 213 Prices subject to change without notice.
