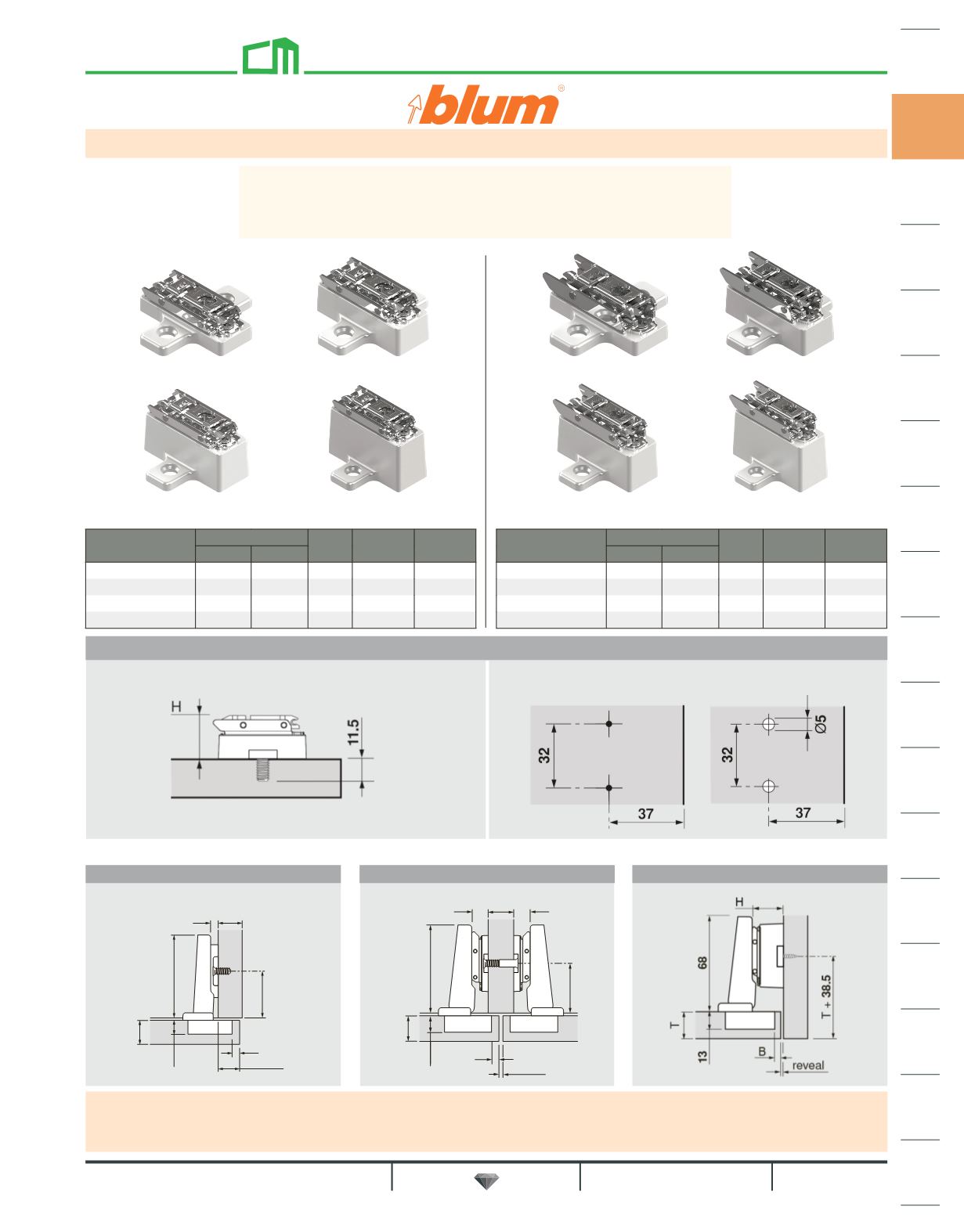

Charles McMurray Co. 2021 Catalog

217 / 1590

H W
B
overlay
37
T
66.5
13
W
B
reveal
37
13
66.5
T
H H
Frameless Applications
NOTE: All three of the common frameless applications, (full overlay, half overlay and inset) can be achieved with a straight-arm hinge
and cam height adjustment. An alternative inset application includes the use of a half-cranked hinge and 9 mm cam height adjustment
mounting plate.
Cam adjustable wing mounting plates
Boring pattern
wood screw system screw
• Mounting plate heights with cam height adjustment
• Steel, nickel-plated with zinc adapter
• Attached with #7 x 5/8" wood screws or Ø5 mm x 13 mm system screws
• Cam height adjustment ±2 mm
Overlay
0 mm plate
Partial/twin overlay
9 mm plate
Inset
19 mm plate
Item No.
Baseplate Height
Box
List Ea.
50
List Ea.
250 mm inch
6 mm 1/4" 250 $3.98 $3.59
13 mm 1/2" 250 $4.20 $3.79
19 mm 3/4" 250 $4.44 $3.99
25 mm 1" 250 $4.66 $4.19
Item No.
Baseplate Height
Box
List Ea.
50
List Ea.
250 mm inch
9 mm 3/8" 250 $3.98 $3.59
16 mm 5/8" 250 $4.20 $3.79
22 mm 7/8" 250 $4.44 $3.99
29 mm 1-1/8" 250 $4.66 $4.19
Cam Height Adjustable Wing Baseplates
DECORATIVE
HARDWARE
CABINET
HINGES
AVENTOS &
LIFTS
LOCKS & CATCHES
DOORS & DRAWERS
SLIDES
LIGHTING ORGANIZERS
KITCH./BATH
SHELF & CLOSET
EDGING & DECOR.WOOD
FURNITURE HARDWARE
ADHESIVES LACQUER &
FINISHES
ABRASIVES
SHOP & FINISHING
FASTENERS
TOOLS
DOOR
HARDWARE
CABINET HINGES
800.533.0533 2021 1946 217 Prices subject to change without notice.
