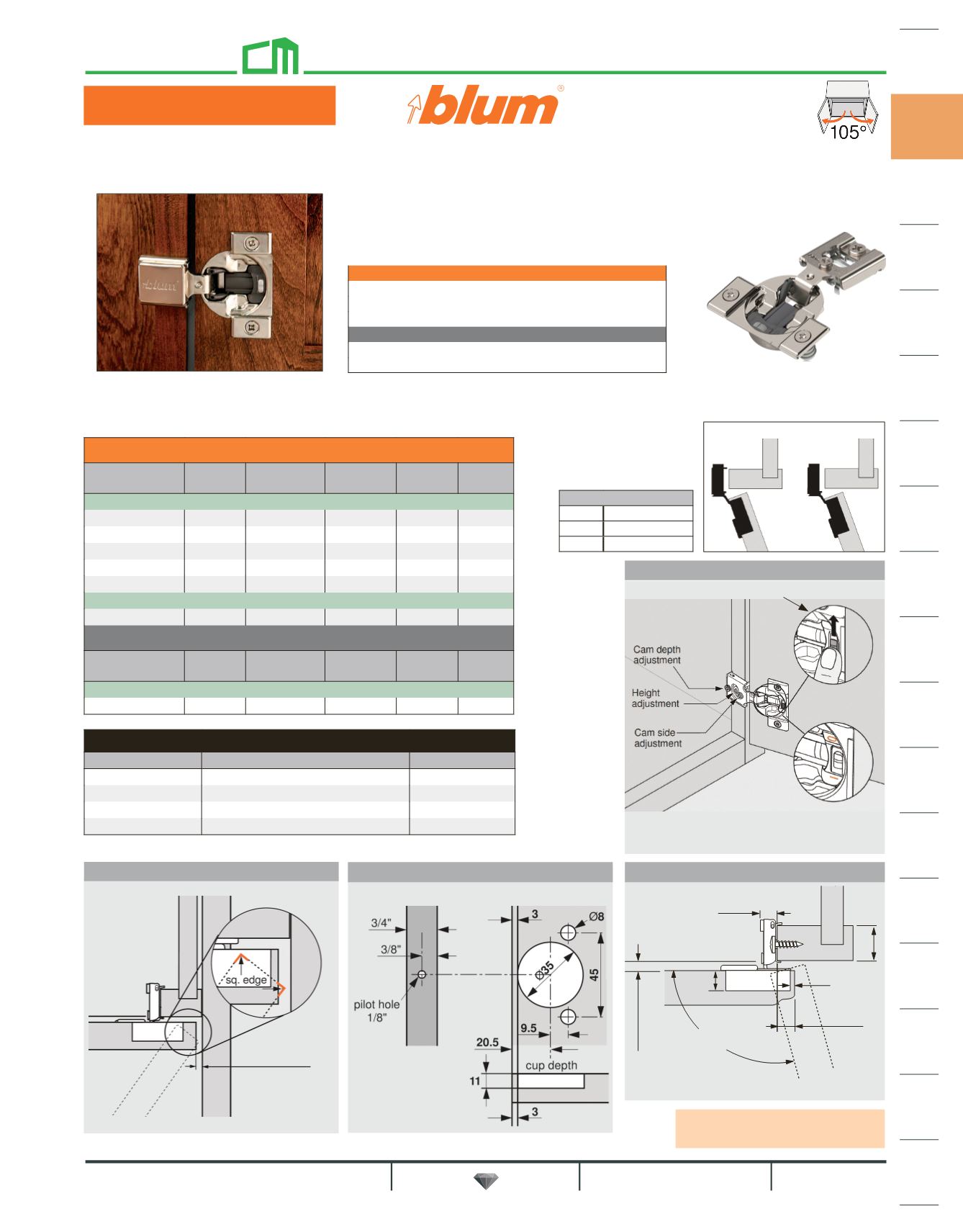

Charles McMurray Co. 2021 Catalog

223 / 1590

Features
• One-piece wrap-around or edge mount hinge
• 7/16" cup depth
• Press-in hinges must be inserted with knock-in tool or
COMPACT insertion ram
BLUMOTION Soft-Close
• BLUMOTION soft-close integrated into the hinge cup
• Deactivation switch for small/light doors
• Overload safety feature
Self-Close
• Available in 1/2" overlay wrap-around
• Can be used with BLUMOTION
250 per box. Sold per each. Screws not included.
(Order #8 x 3/4" trusshead screws.)
BLUMOTION Soft-Close
Item No. Overlay
Door
Protrusion Mounting List Ea.
List Ea.
250
Wrap-Around
3/8" 1/4" Press-in $7.08 $6.00
1/2" 1/8" Screw-on $6.78 $5.76
1/2" 1/8" Press-in $7.08 $6.00
5/8" 0 Press-in $7.08 $6.00
3/4" 0 Press-in $7.08 $6.00
Edge-Mount
1/2" 1/8" Press-in $7.52 $6.32
Self-Close
Item No. Overlay
Door
Protrusion Mounting List Ea.
List Ea.
250
Wrap-Around
1/2" 1/8" Press-in $2.98 $2.50
COMPACT 38 - 105° Opening
One-Piece Hinge, Partial Overlay
Accessories
Item No. Description List Ea.
Angle Restriction Clip (86°) $0.82
Hinge Cup Spacer $4.46
Blank Cover Cap $0.84
Ram $83.90
Wrap-Around Edge-Mount
Boring Pattern
Door Cabinet
Adjustment
NOTE: COMPACT BLUMOTION comes in the activated
position, marked with a "I". The deactivated position
is marked with an "O".
BLUMOTION Deactivation switch
7/16"
105 °
gap
3/16" factory setting,
adjusts + 3/32" -1/32"
1/8"
overlay
3/4"
7/16"
Dimensions
minimum reveal
3/4" door = 9/32"
based on square
edge doors
Minimum Reveal
Adjustments
Depth +3/32", -1/32"
Height ±1/8"
Side ±1/16"
cover cap sold separately
For complete ions order
Blum catalog
COMPACT Accessories.......... pg. 229
BLUMOTION Adapter........... pg. 237
