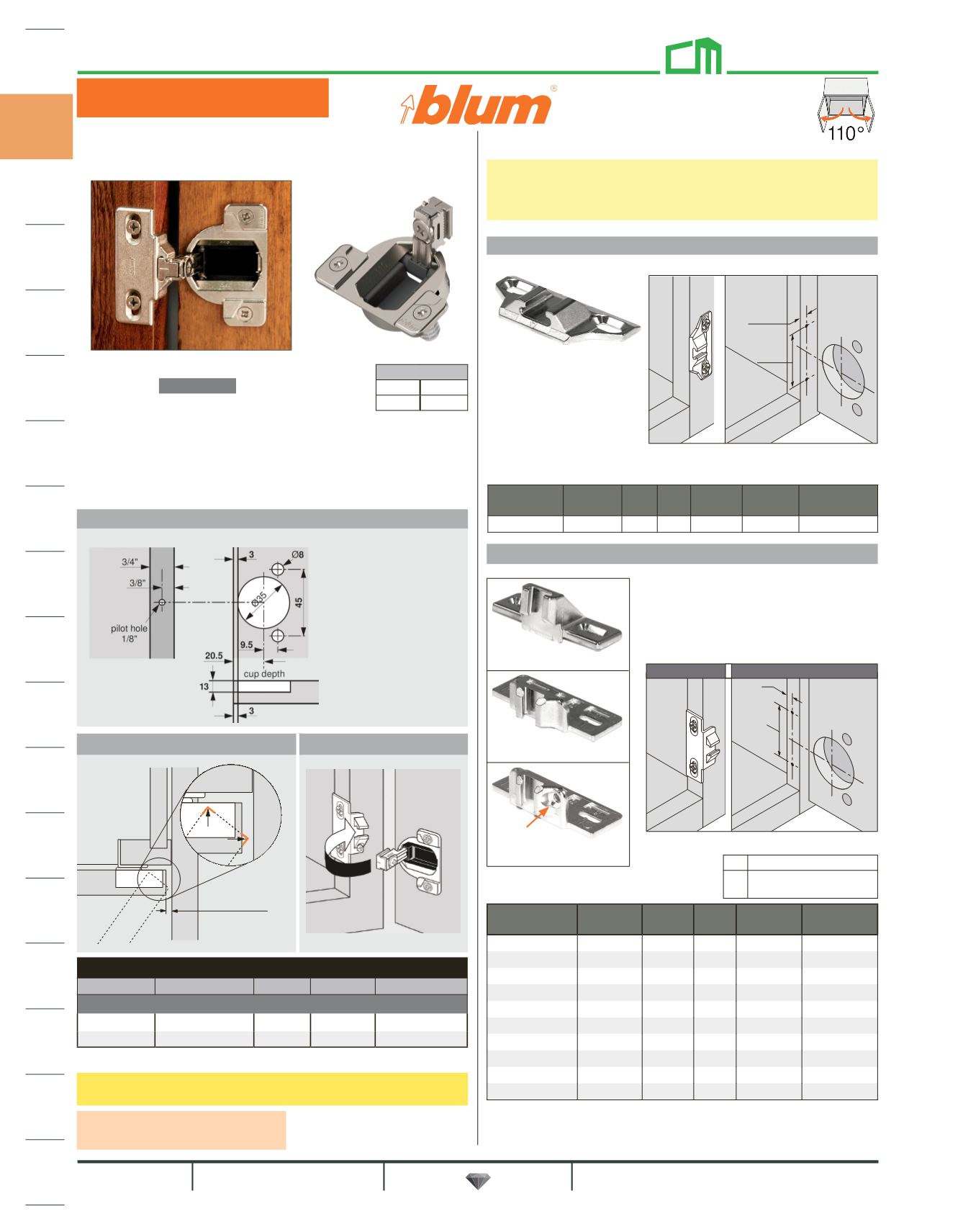

COMPACT 33 Baseplates

Face Mount

• Overlays from 1/4" to 1-5/8"

• Zinc die-cast, nickel-plated finish

• Edge-mounted

• Use #6 x 5/8" wood screws

(MCFPT586)

Edge Mount

For overlay of 1-3/8" or greater. Zinc die-cast, nickel-plated finish.

Two screw height adjustment with 4 mm range.

Item No.

OL S P Box List Ea.

List Ea.

500

B1330240

1-3/8"+ 0 0 500 $2.88 $2.44

Application

Installation Specifications

IMPORTANT - All overlays specified on this page are maximum

with the hinge fully seated into mounting plate. The overlay can

be decreased as much as 1/8" with the side adjustment.

1-3/8" to 1-5/8" overlay

1/4" to 3/4" overlay

9/16"

1-1/4"

250 per box, sold per each.

Item No.

Overlay S P List Ea.

List Ea.

250

B130110024

1/4"

1-1/8" 1/2" $5.16

$4.32

B130110023

1/2"

7/8" 1/4" $4.14

$3.50

B130110026

5/8"

3/4" 1/8" $4.64

$3.88

B130110022

3/4"

5/8"

0 $4.14

$3.50

B130111002

1"

3/8"

0 $4.42

$3.70

B130112002

1-1/8"

1/4"

0 $4.32

$3.62

B130113002

1-1/4" 3/16"

0 $4.42

$3.70

B130114002

1-3/8"* 3/16"

0 $4.52

$3.80

B130115002

1-1/2"* 3/16"

0 $4.62

$3.88

B1301160

1-5/8"* 3/16"

0 $4.64

$3.88

* An additional screw is required on baseplates with 1-3/8" to

1-5/8" overlay to insure stability. Install after height adjustments

have been made.

For complete

specificat

ions order

Blum catalog

B-HINGE.

COMPACT 33 Hinges - 110° Opening

For Face Frame Cabinets

Hinges

Item No.

Mounting Box List Ea. List Ea. 250

Self-Close

B33360 Screw-on

250

$7.56

$6.43

B33363 Press-in

250

$7.78

$6.62

Features

• Available in

Self-Close

• Two piece assembly

• Edge or face mount

• 1/2" cup depth

• Zinc die-cast hinge and mounting plates

• Use #6x5/8" wood screws (MCFPT586)

• Use insertion ram

BMZM0047

for press-in hinge

• Can be used with BLUMOTION

B971A9700.22

Order baseplates and screws separately.

1" to 1-1/4" overlay

extra

screw

location

S Hinge arm protrusion

P Door protrusion

(at max. opening)

3/8"

1-3/8"

Application Installation Specifications

Adjustments

Height ±9/64"

Side -1/8"

Boring Pattern

NOTE: Maximum door

thickness 3/4"

Note: The depth setting

of all COMPACT hinges

is fixed. A 3 mm gap

between the back of the

door and the cabinet face

frame is constant.

Cabinet

Door

Minimum reveal

sq. edge

3/4" door = 3/16"

based on square

edge door.

Minimum Reveal

Mounting

COMPACT Accessories.......... pg. 229

BLUMOTION Adapter........... pg. 237

DOOR

HARDWARE

TOOLS FASTENERS SHOP &

FINISHING

ABRASIVES LACQUERS &

FINISHES

ADHESIVES FURNITURE

HARDWARE

EDGING &

DECOR.WOOD

SHELF &

CLOSET

ORGANIZERS

KITCH./BATH

LIGHTING SLIDES

DOORS &

DRAWERS

LOCKS &

CATCHES

AVENTOS &

LIFTS

CABINET

HINGES

DECORATIVE

HARDWARE

CABINET HINGES

800.533.0533

2021

1946

228
