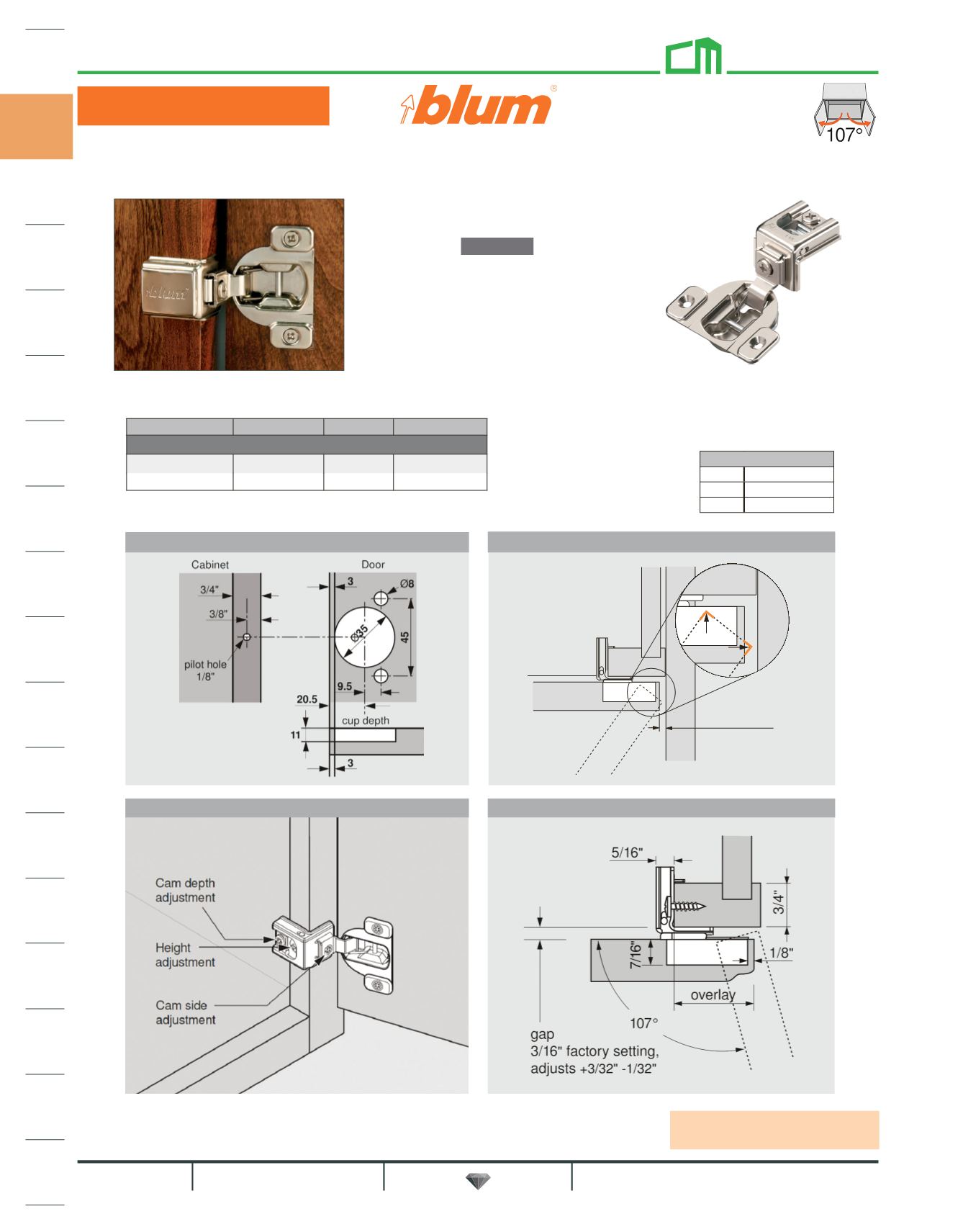

Minimum Reveal Boring Pattern
Minimum reveal
sq. edge
COMPACT 38C - 107° Opening
One-Piece Hinge for 1-1/4" Overlay
300 per box. Sold per each. Screws not included.
Item No. Mounting List Ea. List Ea. 300
Self-Close
Screw-on $3.46 $2.90
Press-in $3.66 $3.08
3/4" door = 9/32"
basedonsquareedge
doors
For complete ions order
Blum catalog
Adjustment Dimensions
Use #8 x 3/4" trusshead screws on plate.
Use #6 x 5/8" flathead screw on cup.
Adjustments
Depth +3/32", -1/32"
Height ±1/8"
Side ±1/16"
covercap sold separately
COMPACT Accessories.......... pg. 229
BLUMOTION Adapter........... pg. 237
Features
• Available in Self-Close
• One-piece wrap-around hinge
• 7/16" cup depth
• Steel, nickel-plated
• Can be used with BLUMOTION B971A9700.22
