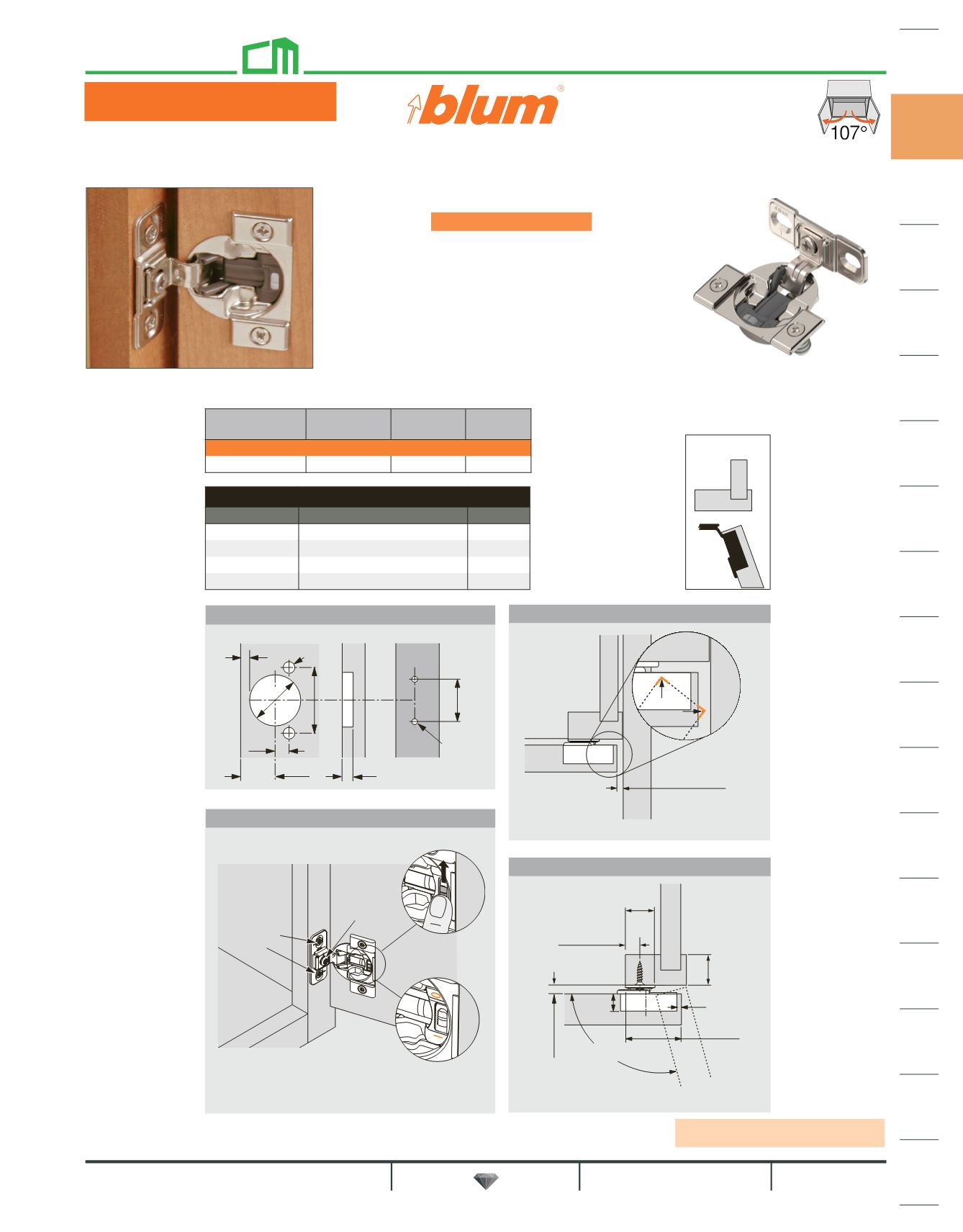

Charles McMurray Co. 2021 Catalog

225 / 1590

Height
adjustment
Cam side
adjustment
COMPACT BLUMOTION 38B - 107° Opening
One-Piece Hinge for Face Mount
9.5
3
45 40
pilot hole
5/64"
Ø8
Ø35
20.5 11
NOTE: COMPACT BLUMOTION comes in the activated posi-
tion, marked with a "I". The deactivated position is marked
with an "O".
Deactivation switch
Door Cabinet Face
Boring Pattern
Adjustment
Minimum Reveal
sq. edge
minimum reveal
3/4" door = 9/32"
based on square
edge doors
3/4"
7/16"
1/8"
11/16"
11/32" min.
overlay
gap
3/16" factory setting,
adjusts + 3/32" -1/32"
107 °
Dimensions
250 per box. Sold per each. Screws not included.
(Order #6 x 5/8" flathead screws.)
Item No. Mounting List Ea.
List Ea.
250
BLUMOTION Soft-Close
Press-in $8.12 $6.88
Face Mount
Accessories
Item No. Description List Ea.
Angle Restriction Clip (86°) $0.82
Hinge Cup Spacer $4.46
Blank Covercap $0.84
Ram $83.90
For complete specifications order
Blum catalog
COMPACT Accessories.......... pg. 229
Features
• Available in BLUMOTION Soft-Close
• Deactivation switch for small/light doors
• Overload safety feature
• 1-3/8" overlay or greater
• 7/16" cup depth
• Press-in hinges must be inserted with knock-in tool
or COMPACT insertion ram
DECORATIVE
HARDWARE
CABINET
HINGES
AVENTOS &
LIFTS
LOCKS & CATCHES
DOORS & DRAWERS
SLIDES
LIGHTING ORGANIZERS
KITCH./BATH
SHELF & CLOSET
EDGING & DECOR.WOOD
FURNITURE HARDWARE
ADHESIVES LACQUER &
FINISHES
ABRASIVES
SHOP & FINISHING
FASTENERS
TOOLS
DOOR
HARDWARE
CABINET HINGES
800.533.0533 2021 1946 225 Prices subject to change without notice.
