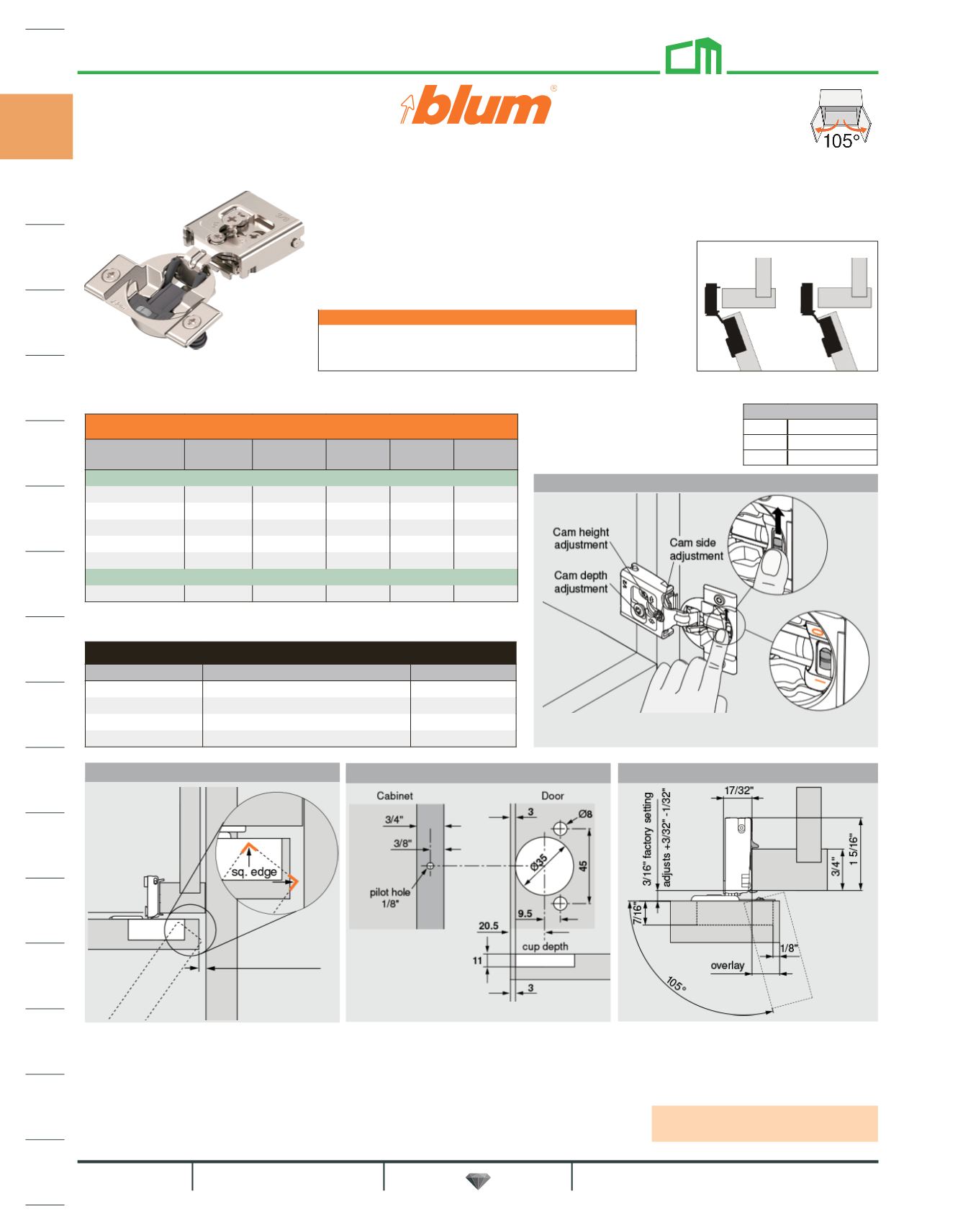

Charles McMurray Co. 2021 Catalog

229b / 1590

Minimum Reveal Boring Pattern
NOTE:
Maximum door
thickness 3/4"
minimum reveal
3/4" door = 9/32"
based on square
edge doors
Features
• Two-piece wrap-around or edge mount hinge with
CLIP technology
• 7/16" cup depth
• Three-dimensional cam adjust
• Pre-mounted wood screw
• Press-in hinges must be inserted with knock-in tool or
COMPACT insertion ram
BLUMOTION Soft-Close
• BLUMOTION soft-close integrated into the hinge cup
• Deactivation switch for small/light doors
• Overload safety feature
250 per box. Sold per each.
BLUMOTION Soft-Close
Item No. Overlay Mounting List Ea.
List Ea.
100
List Ea.
250
Wrap-Around
3/8"* Press-in $9.58 $9.02 $8.08
1/2"** Screw-on $9.30 $8.74 $7.82
1/2"** Press-in $9.58 $9.02 $8.08
5/8" Press-in $9.58 $9.02 $8.08
3/4" Press-in $9.58 $9.02 $8.08
Edge-Mount
1/2" Press-in $9.58 $9.02 $8.08
*When using this clip, cabinet door will protrude into cabinet 1/4"
** When using this clip, cabinet door will protrude into cabinet 1/8".
COMPACT CLIP BLUMOTION 30C2 - 105° Opening
Two-Piece Hinge, Partial Overlay
Accessories
Item No. Description List Ea.
B38C315B3.1 Angle Restriction Clip (86°) $0.82
B38C355B9 Hinge Cup Spacer $4.46
Blank Covercap $0.96
Ram $83.90
Wrap-Around Edge-Mount
Adjustment
NOTE: COMPACT BLUMOTION comes in the activated position, marked
with a "|". The deactivated position is marked with an "0".
Dimensions
Adjustments
Depth +3/32", -1/32"
Height ±5/64"
Side ±1/16"
COMPACT CLIP Accessories...pg. 229d
05/22
DOOR
HARDWARE
TOOLS FASTENERS SHOP &
FINISHING
ABRASIVES LACQUERS &
FINISHES
ADHESIVES FURNITURE
HARDWARE
EDGING &
DECOR.WOOD
SHELF &CLOSET
ORGANIZERSKITCH./BATH
LIGHTING SLIDES
DOORS &DRAWERS
LOCKS &CATCHES
AVENTOS &
LIFTS
CABINETHINGES
DECORATIVEHARDWARE
CABINET HINGES
800.533.0533 2021 1946 229b Prices subject to change without notice.
