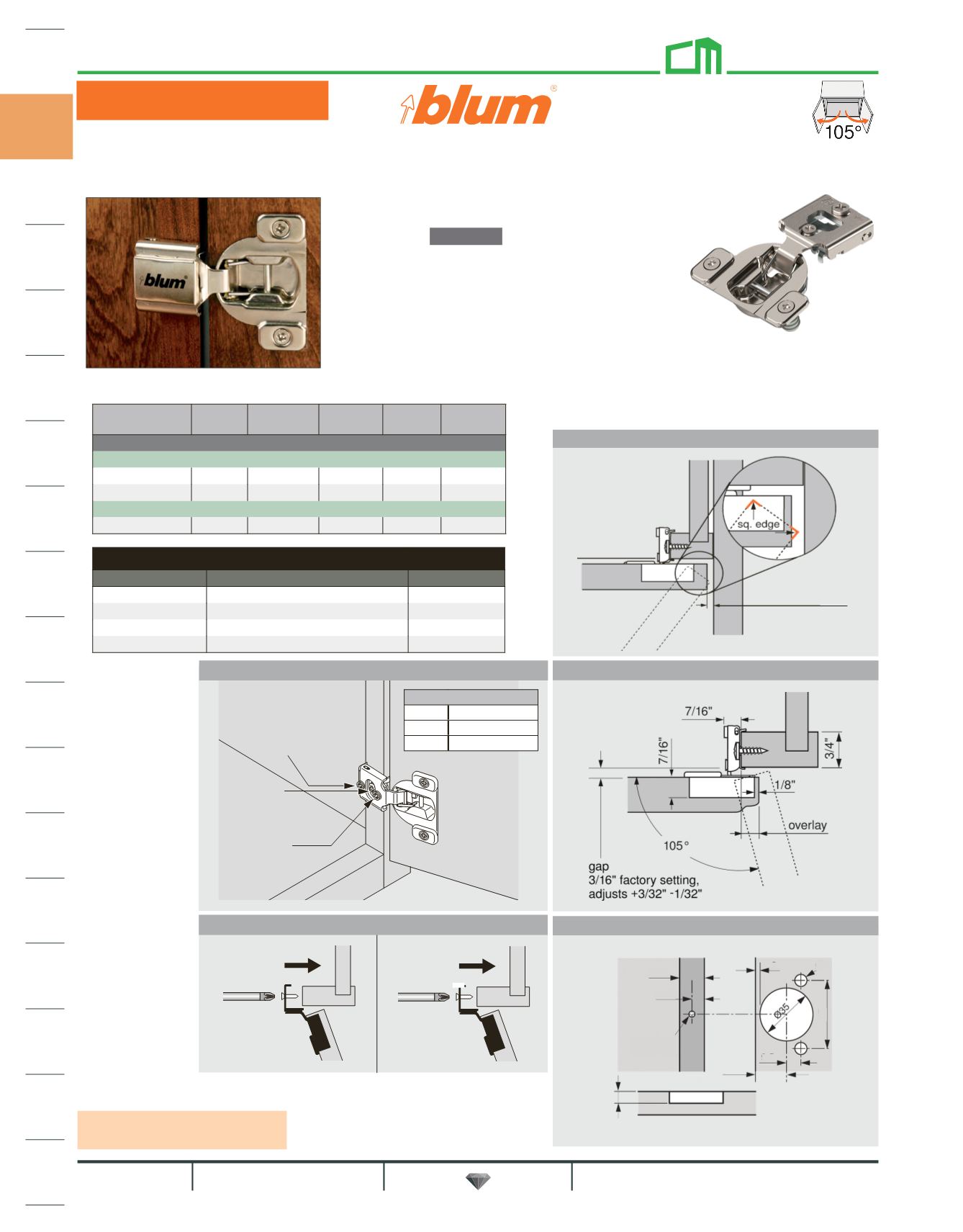

COMPACT 38N - 105° Opening
One-Piece w/Independent 3-Way Adjustment
1/2" Overlay
250 per box. Sold per each. Screws not included.
Item No. Overlay
Door
Protrusion Mounting List Ea.
List Ea.
250
Self-Close
Wrap-Around
1/2" 1/8" Screw-on $2.74 $2.32
1/2" 1/8" Press-in $3.12 $2.62
Edge-Mount
1/2" 1/8" Press-in $3.12 $2.62
Features
• Available in Self-Close
• One-piece wrap-around or edge-mount hinge
• 7/16" cup depth
• Steel, nickel-plated
• Use Insertion Ram
• Can be used with BLUMOTION
wrap around edge mount
Attachment
Dimensions
Boring Pattern
NOTE: Maximum door thickness 3/4"
3/4"
3/8"
pilot hole
1/8" 9.5
45
3 Ø8
20.5
door cabinet
cup depth
11
For complete ions order
Blum catalog
Cam depth
adjustment
Height
adjustment
Cam side
adjustment
Adjustments
Adjustments
Depth +3/32", -1/32"
Height ±1/8"
Side ±1/16"
Accessories
Item No. Description List Ea.
Angle Restriction Clip (86°) $0.82
Hinge Cup Spacer $4.46
Blank Cover Cap $0.84
Ram $83.90
covercap sold separately
COMPACT Accessories.......... pg. 229
BLUMOTION Adapter........... pg. 237
3/4" door = 9/32"
Based on square
edge doors
minimum reveal
Minimum Reveal
Use #8 x 3/4" trusshead screws on plate
Use #6 x 5/8" screw on hinge cup (screw-on version)
