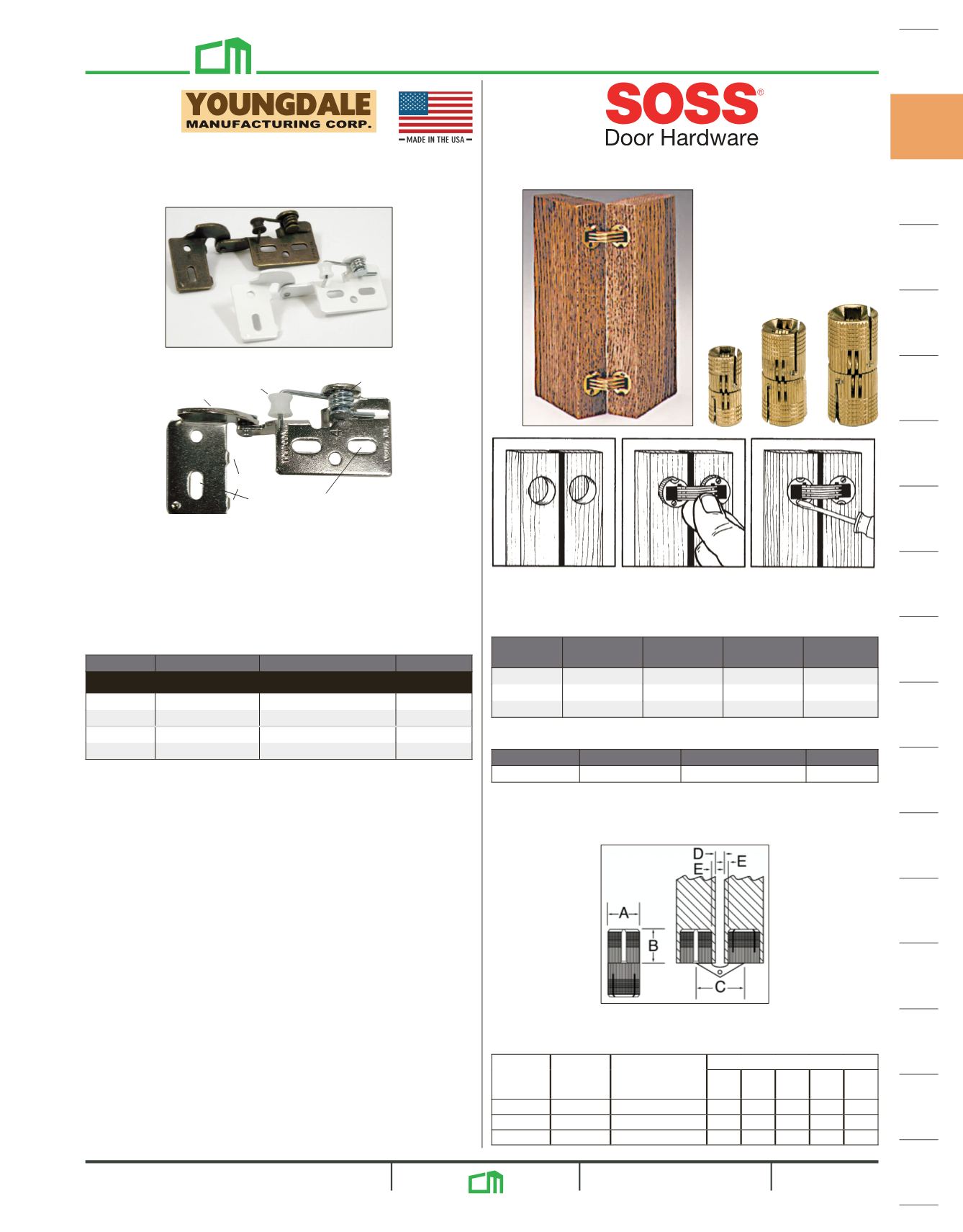

Charles McMurray Co. 2023 Catalog

255 / 1645

True-Lock Hidden Cabinet Hinges
Self-Closing
• Easily installed due to full adjustability and locating tabs on
both door and jamb parts
• Spring and roller closing system features a nylon roller and
pivot with two nylon washers that eliminates metal-to-metal
contact
• A single pivot point opens a full 180°
• #6 x 5/8" screws are included
adjustment slots
locating tabs
specially engineered
spring nylon rollers
locking cam
No. 4 shown
Item No. Function Finish List Pr.
Polybagged 1 pair per bag, sold per pair
3/8" Inset Antique Brass $14.02
3/8" Inset White $17.28
1/2" Overlay Antique Brass $14.02
1/2" Overlay White $17.28
Drill holes and insert. Secure mounting in wooden door or panel
is assured by tightening the tension screw. For more demanding
applications install a chipboard or wood screw in the groove on
the exposed end. Solid brass with brass links. Sold per each.
Item No.
Hole
Diameter
Min. Door
Thickness Box List Ea.
10 mm 1/2" 24 $5.12
12 mm 5/8" 24 $5.12
14 mm 3/4" 24 $6.20
Invisible Barrel Hinges
Fuller drill bit for above hinges.
Item No. For Diam. List Ea.
10 mm (25/64") $59.68
Not recommended for vertical or load bearing applications.
Item No. Min. DoorThickness
Drill Bit
Needed
Dimensions (mm)
A B C Dmin.
E
max.
1/2" 10 mm (25/64") 10 11.5 15.7 2 1.8
5/8" 12 mm (15/32") 12 13.5 19 2.7 2.1
3/4" 14 mm (35/64") 14 15.5 23 3 3
