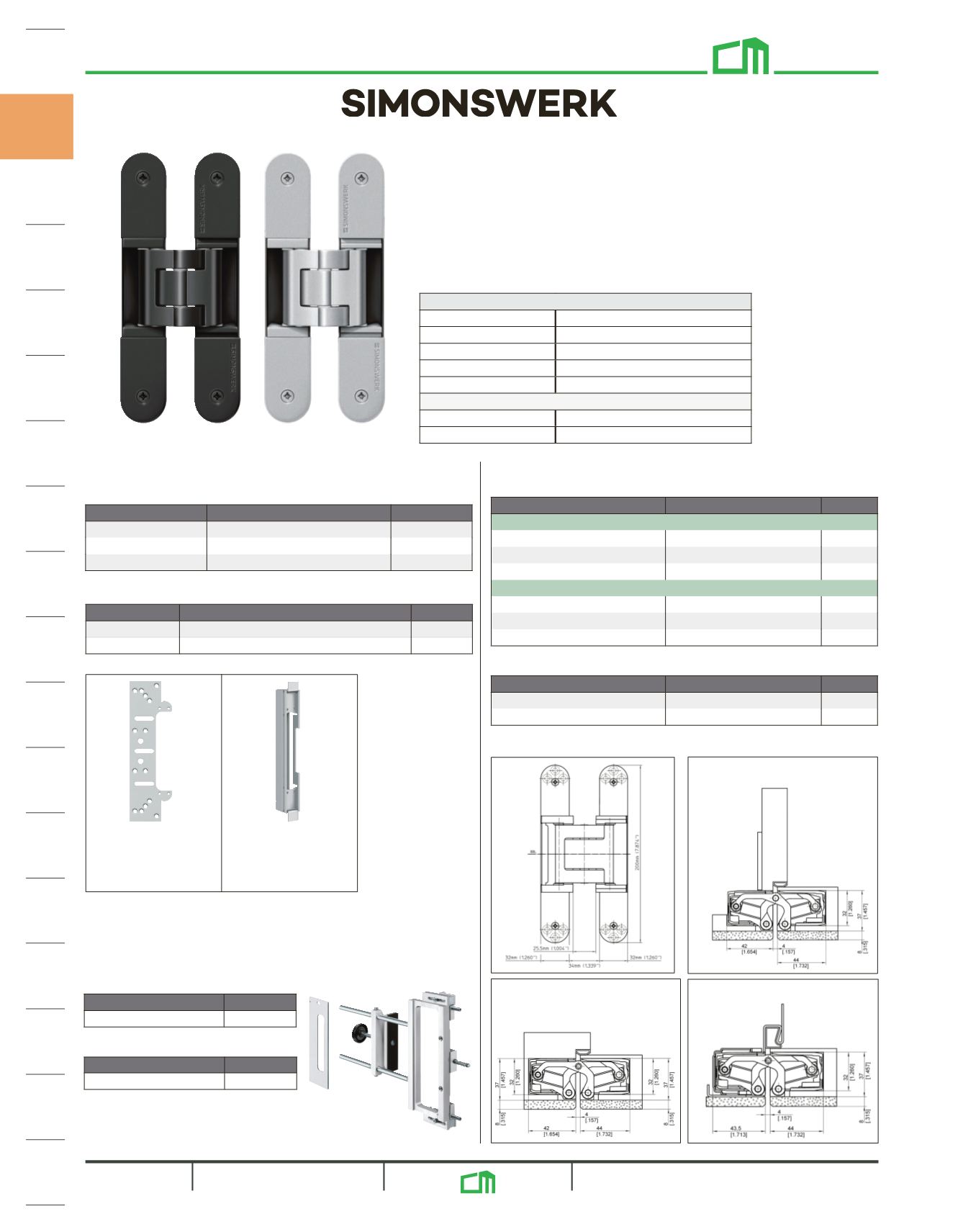

TE540 3D A8 TECTUS Hinges
• For use in wood or metal flush commercial doors with cladding
up to 8 mm (5/16")
• Maintenance-free slide bearings
• Non-handed
• UL listed for 20 minute fire-rated doors
• Optional milling frame and templates (order separately)
• 7-7/8"H
Specifications
Door weight 220 lbs. (w/ 2 hinges)
Door thickness 40 mm (1-5/8") plus cladding
Opening angle 180°
Router bit 24 mm (3/4")
Router guide 30 mm (1")
Adjustment
Height and width ± 3 mm (1/8")
Depth ± 1.0 mm (1/16")
Hinges include covercaps and installation screws. Sold per each.
Item No. Finish List Ea.
Matte Deep Black $473.64
Satin Chrome Look (F1) $371.48
Satin Nickel Look (F2) $371.48
Matte Deep Black Satin Chrome Look
(F1)
Installation tools:
Universal milling frame, includes frame and clamping device.
Sold per each. (Order templates separately.)
Item No. List Ea.
TE-MILLING-FRAME $1,101.69
Routing templates, sold per kit.
Kit No. List Kit
TE540-3D-A8-TMP $400.42
See pg. 1114a for details and kit components.
Fixing plates and receivers, sold per each.
Item No. Description List Ea.
Wood frame fixing plate w/shims $34.91
Metal frame receiver $57.27
Replacement parts:
Covercaps, (2) door or frame side per set. Sold per set.
Item No. Finish List Set
Door Side
Matte Deep Black $33.25
Satin Chrome Look (F1) $29.93
Satin Nickel Look (F2) $29.93
Frame Side (shows Simonswerk logo)
Matte Deep Black $33.25
Satin Chrome Look (F1) $29.93
Satin Nickel Look (F2) $29.93
Screw pack for covercaps. Sold per pack.
Set No. Finish List Set
Matte Deep Black $23.27
Nickeled $23.27
Mounted to a commercial
wood door frame
Mounted to a
hollow metal
frame
Mounted to a wood door
frame with casing
Fixing plate for wood
door frame
11-1/16"H x 3-3/8"W
Receiver for metal
door frame
11-1/4"H x 1-1/2"W
