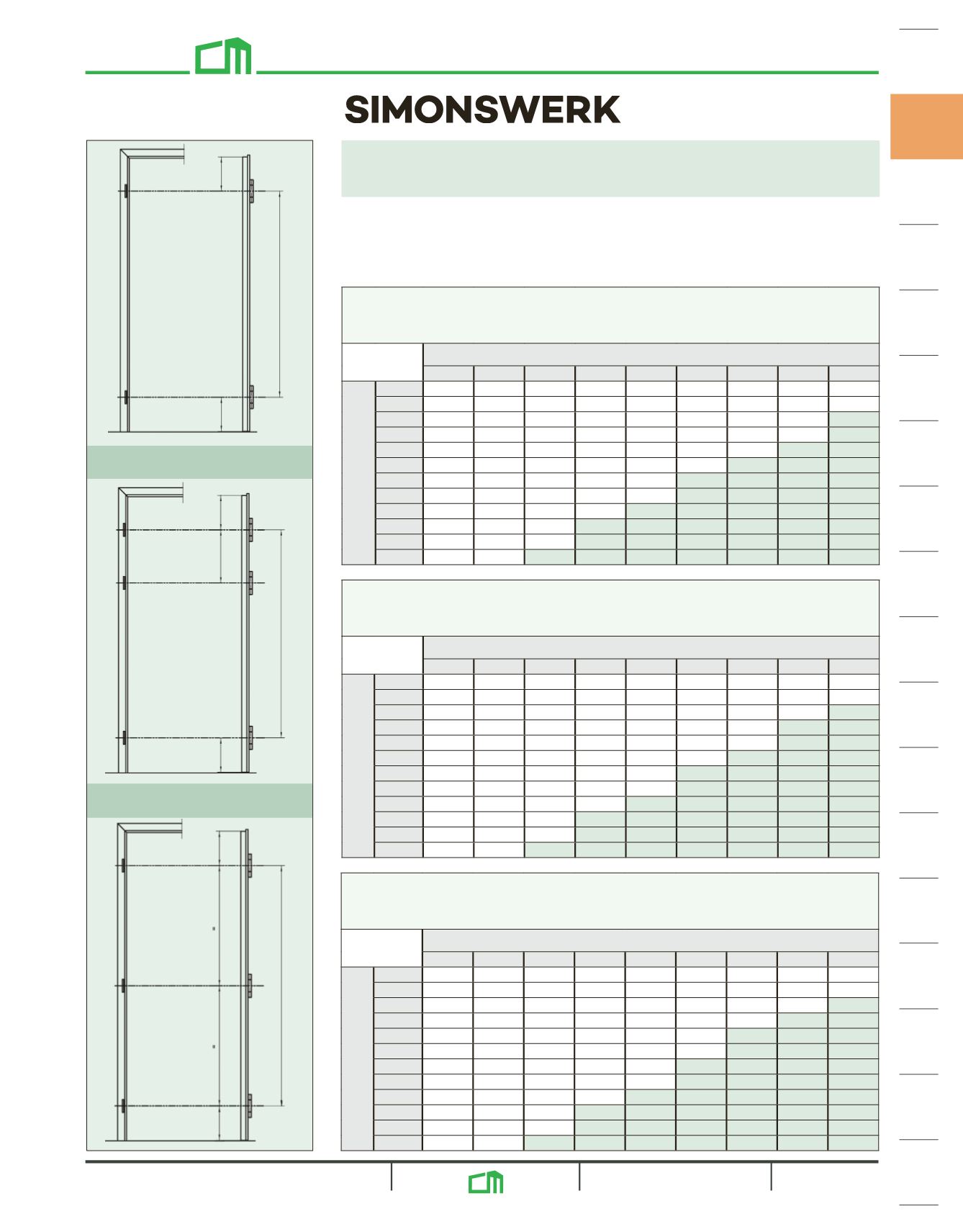

TE240 TECTUS Hinges
(132 lb. load rating using 2 hinges per panel)
Highlighted weights show load values less than the 132 lb. rating.
Door Width
36"
38"
40"
42"
44"
46"
48"
50"
52"
Door Panel Height
108"
132 132 132 132 132 132 132 132 132
102"
132 132 132 132 132 132 132 132 132
96"
132 132 132 132 132 132 132 132 127
94"
132 132 132 132 132 132 132 132 125
92"
132 132 132 132 132 132 132 125 121
90"
132 132 132 132 132 132 127 123 119
88"
132 132 132 132 132 130 123 119 114
86"
132 132 132 132 132 125 121 114 110
84"
132 132 132 132 127 121 116 112 108
82"
132 132 132 127 123 119 112 108 103
80"
132 132 132 125 119 114 110 105 101
78"
132 132 127 121 114 110 105 101
97
LOAD RATINGS
Values shown represent hinges positioned 10" from the top
and 10" from the bottom to the center of each hinge.
hinge spacing
10"
10"
TE340 TECTUS Hinges
(176 lb. load rating using 2 hinges per panel)
Highlighted weights show load values less than the 176 lb. rating.
Door Width
36"
38"
40"
42"
44"
46"
48"
50"
52"
Door Panel Height
108"
176 176 176 176 176 176 176 176 176
102"
176 176 176 176 176 176 176 176 176
96"
176 176 176 176 176 176 176 176 171
94"
176 176 176 176 176 176 176 174 167
92"
176 176 176 176 176 176 176 167 163
90"
176 176 176 176 176 176 169 163 156
88"
176 176 176 176 176 171 165 158 152
86"
176 176 176 176 176 167 160 154 147
84"
176 176 176 176 169 163 156 149 143
82"
176 176 176 169 165 158 152 145 137
80"
176 176 176 165 158 152 145 141 134
78"
176 176 169 160 154 147 141 136 130
hinge spacing
10"
10"
14"
10"
10"
hinge spacing
To increase the load capacity of the hinges, a third hinge needs to be positioned 14“ below the
upper hinge (center to center). The use of a third hinge to increase the load capacity has to be
determined on a case by case basis. The hinge data refers to a height/width ratio of the door of 2:1
or more. The hinge spacing does not increase the load capacity. For exterior doors use 3 hinges.
Doors less than 8'
or wider than 39"
Doors 8' or taller
& less than 39" wide
TE540 A8 TECTUS Hinges
(220 lb. load rating using 2 hinges per panel)
Highlighted weights show load values less than the 220 lb. rating.
Door Width
36"
38"
40"
42"
44"
46"
48"
50"
52"
Door Panel Height
108"
220 220 220 220 220 220 220 220 220
102"
220 220 220 220 220 220 220 220 220
96"
220 220 220 220 220 220 220 220 213
94"
220 220 220 220 220 220 220 218 209
92"
220 220 220 220 220 220 218 211 202
90"
220 220 220 220 220 220 213 205 198
88"
220 220 220 220 220 218 207 200 191
86"
220 220 220 220 220 211 202 194 185
84"
220 220 220 220 213 205 196 187 180
82"
220 220 220 216 207 198 189 182 174
80"
220 220 220 207 200 191 182 176 169
78"
220 220 211 200 194 185 180 169 163
