262 / 1645
• 3-way adjustment allows vertical, horizontal, and depth adjustment after
hinge installation
• Easy installation with lift-off feature: can be split into two parts (one for
the frame and one for the flap), can be hung temporarily and held into
position without being screwed on
• Covers hide screw heads for a clean appearance
• Min. Door Thickness: 1-1/2"
• Max. Door Size: 94-1/2"H × 35-7/16"W
• Max. Door Weight: 220 lbs./2 pcs., 275 lbs./3 pcs.
• Matte black, dull chrome, dull nickel or polished nickel finish
•
7-1/2"H x 3"W
2 each per box with steel flat head screws. Sold per each.
Item No.
Finish List Ea. List Ea. 6
HES3D-E190BL-UL Matte Black $229.08 $194.14
HES3D-E190DC-UL Dull Chrome $229.08 $194.14
HES3D-E190DN-UL Dull Nickel
$229.08 $194.14
HES3D-E190PN-UL Polished Nickel
$324.46 $273.22
Boring template for hinges
HES3D-E190-TMP
$103.00
---

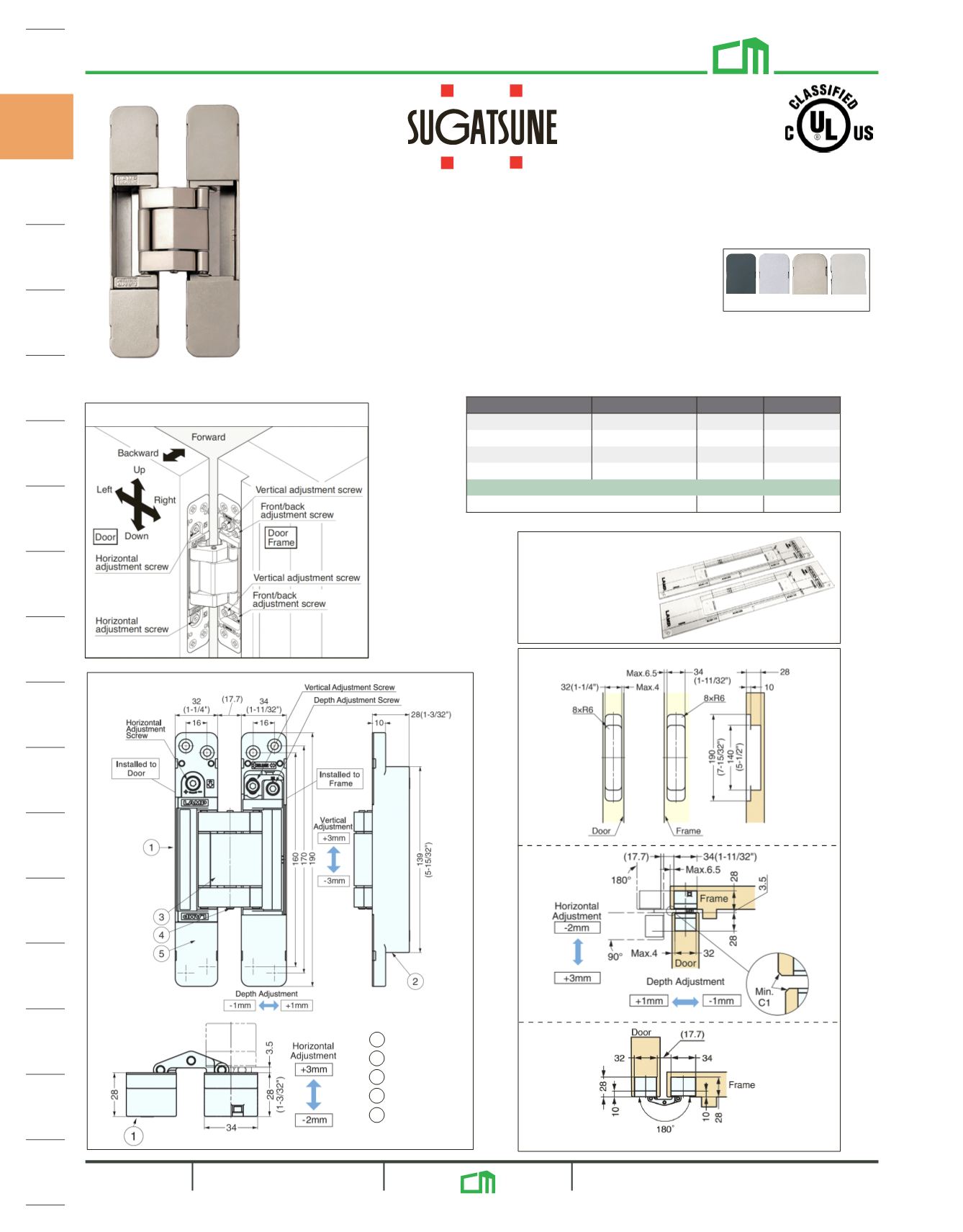

HES3D-E190 Series
3-Way Adjustable Concealed Hinges
1 Body
2 Base Frame
3 Arm
4 Pin
5 Cover
Adjustments
(hinge shown without covers)
Bore Dimensions
Dull Nickel (DN)
Boring template set
includes door template
and frame template.
Made of clear plastic.
