• Long arm for a wider throw, allowing 3/8" clearance for flush installation
or 1/2" clearance for installation with a moulding
• Opens to 180°
• 3-way adjustment allows vertical, horizontal, and depth adjustment
• Flanges come apart for the door to be provisionally hung for making adjustments
• Covers hide screw heads for a clean appearance
• Min. Door Thickness: 1-5/8"
• Max. Door Size: 96-1/16"H × 36"W
• Max. Door Weight: 220 lbs./2 pcs., 275 lbs./3 pcs.
• Black or dull nickel finish
•
7-1/2"H x 3-11/16"W

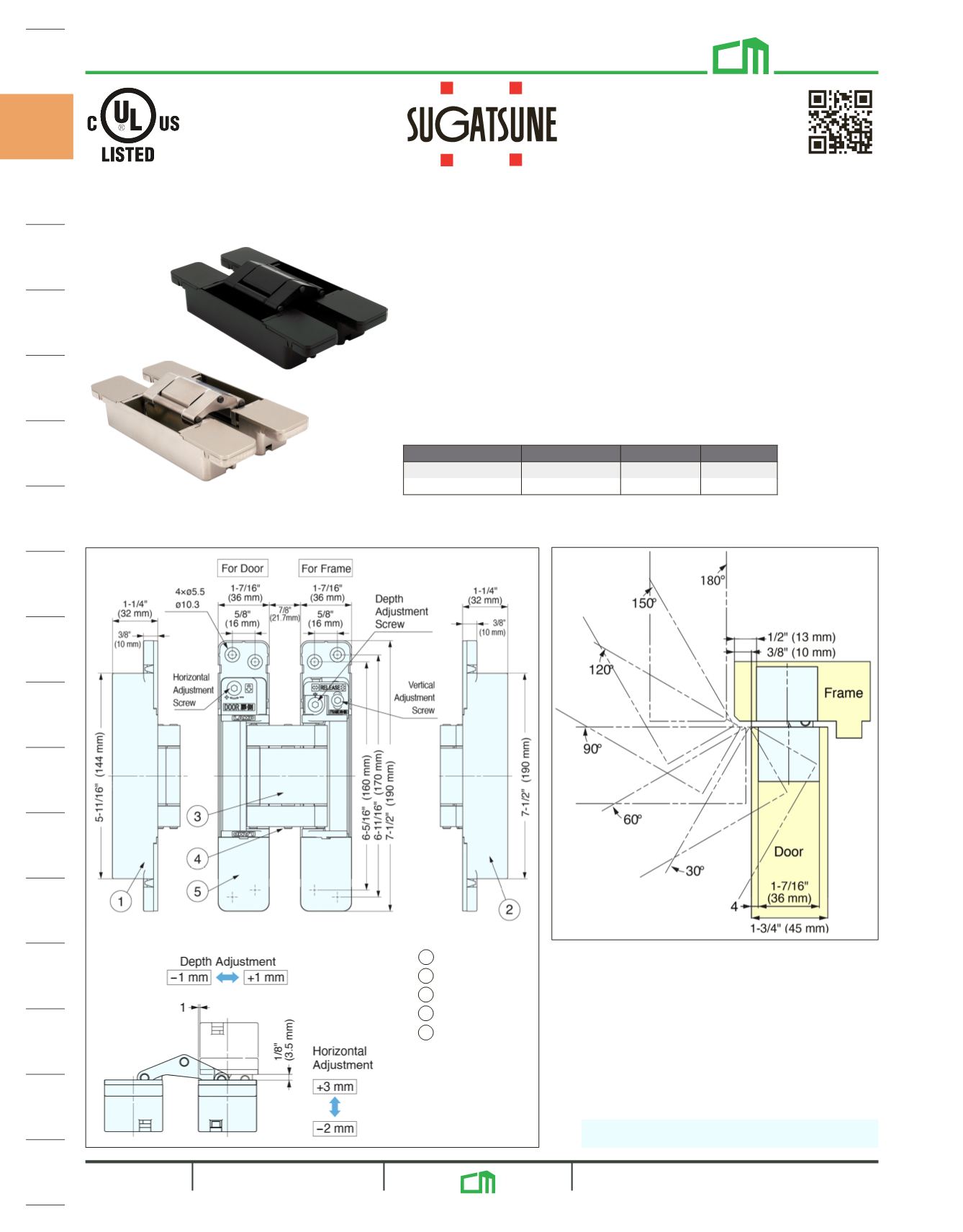

HES3D-W190 Series
3-Way Adjustable Concealed Hinge for Door Mouldings
2 each per box with steel flat head screws. Sold per each.
Item No.
Finish
List Ea.
List Ea. 6
HES3D-W190BLMatte Black $303.24 $256.98
HES3D-W190DNDull Nickel
$303.24 $256.98
1 Body
2 Base Frame
3 Arm
4 Shaft
5 Screw Cover
See next page for more information.
Watch product overview here: https://bit.ly/3Bcw1MMDOOR
