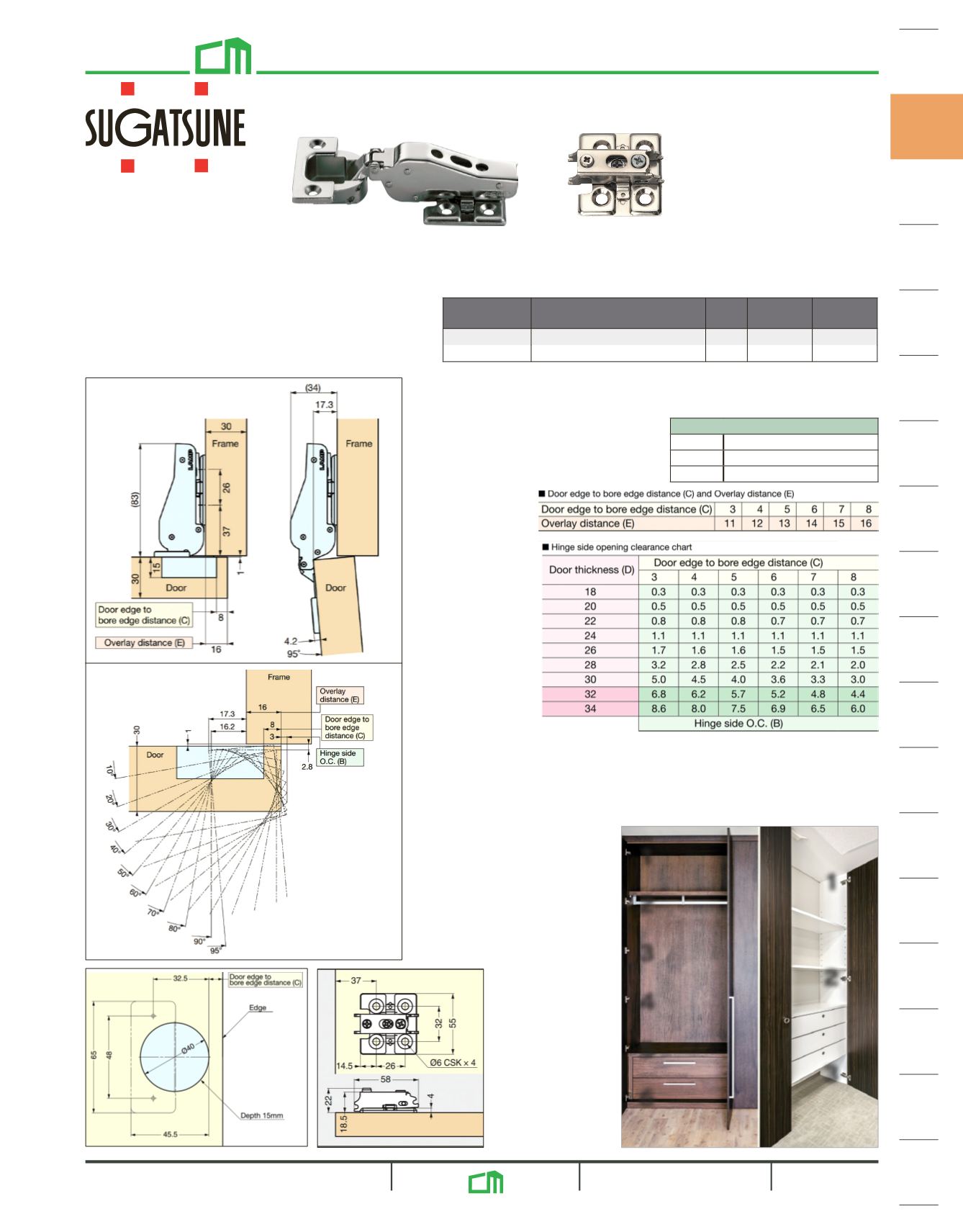

J95-C24 Heavy-Duty Concealed Hinge
5/8" Overlay, up to 95° Opening
• Load rating: 55 lbs./2 pcs., 88 lbs./3 pcs.
• Maximum door width: 31-1/2"/2 pcs., 35-7/16"/3 pcs.
• Clip-on type for easy installation
• 3-way adjustment on baseplate, with door installed
• Suggested screws: #7 x 5/8"
QS14470 #7 x 5/8" (Stainless)
MCFPT347NI #7 x 3/4"
hinge shown w/baseplate (sold separately)
baseplate sold
separately
NOTE: If the door thickness is over 1-3/16" the door will
need to be chamfered.
Baseplate adjustments
Vertical ±3 mm (±1/8")
Overlay 0/-4 mm (±5/32")
Depth +1.5/-2.5 mm (±5/32")
Order hinge and baseplate separately. Sold per each. Screws not
included.
Item No. Description Box List Ea.
List Ea.
Full Box
Self-Closing Hinge 10 $44.48 $37.70
0 mm Baseplate 10 $16.98 $14.44
1
2
3
4
5
6
1
2
3
