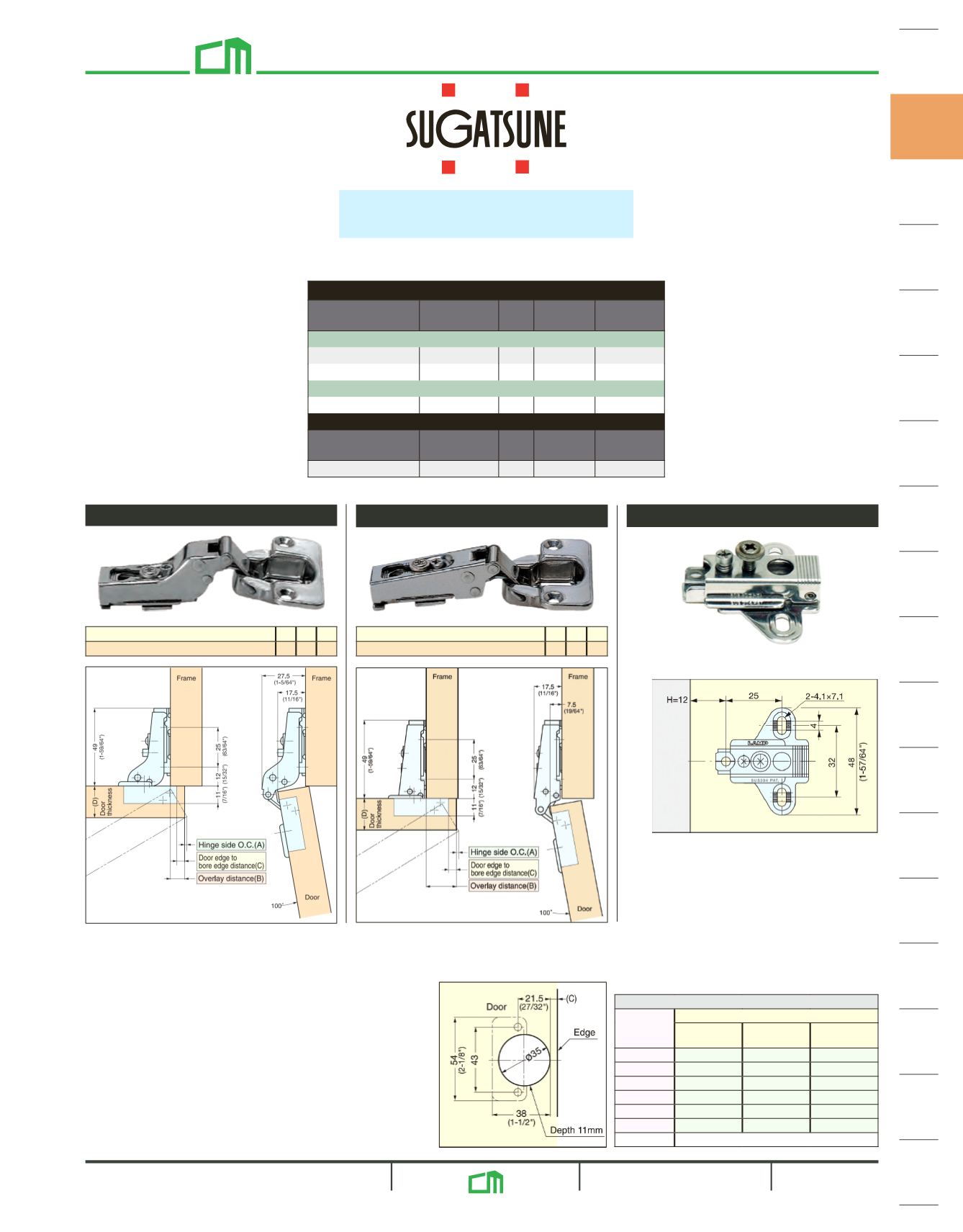

Stainless Steel Hinges
100° Opening, Self-Closing
Hinges and baseplates include screws. Sold per each.
Hinges
Item No. Overlay Box List Ea.
List Ea.
Full Box
Self-Closing
9 mm 20 $14.90 $12.50
19 mm 200 $14.58 $12.28
Free-Swinging
19 mm 20 $14.04 $11.78
Baseplates
Item No. Description Box List Ea.
List Ea.
Full Box
Baseplate 400 $9.36 $7.78
19 mm Overlay
Door edge to bore edge distance (C) 3 4 5
Overlay distance (B) 17 18 19
Hinge side opening clearance chart
Door
Thickness
(D)
Door edge to bore edge distance (C)
3 4 5
15 0.5 0.5 0.5
16 0.7 0.7 0.7
17 0.8 0.8 0.8
18 1.0 1.0 1.0
19 1.2 1.2 1.2
20 1.4 1.4 1.4
Hinge-side Opening Clearance (A)
Door edge to bore edge distance (C) 3 4 5
Overlay distance (B) 7 8 9
9 mm Overlay Baseplate
