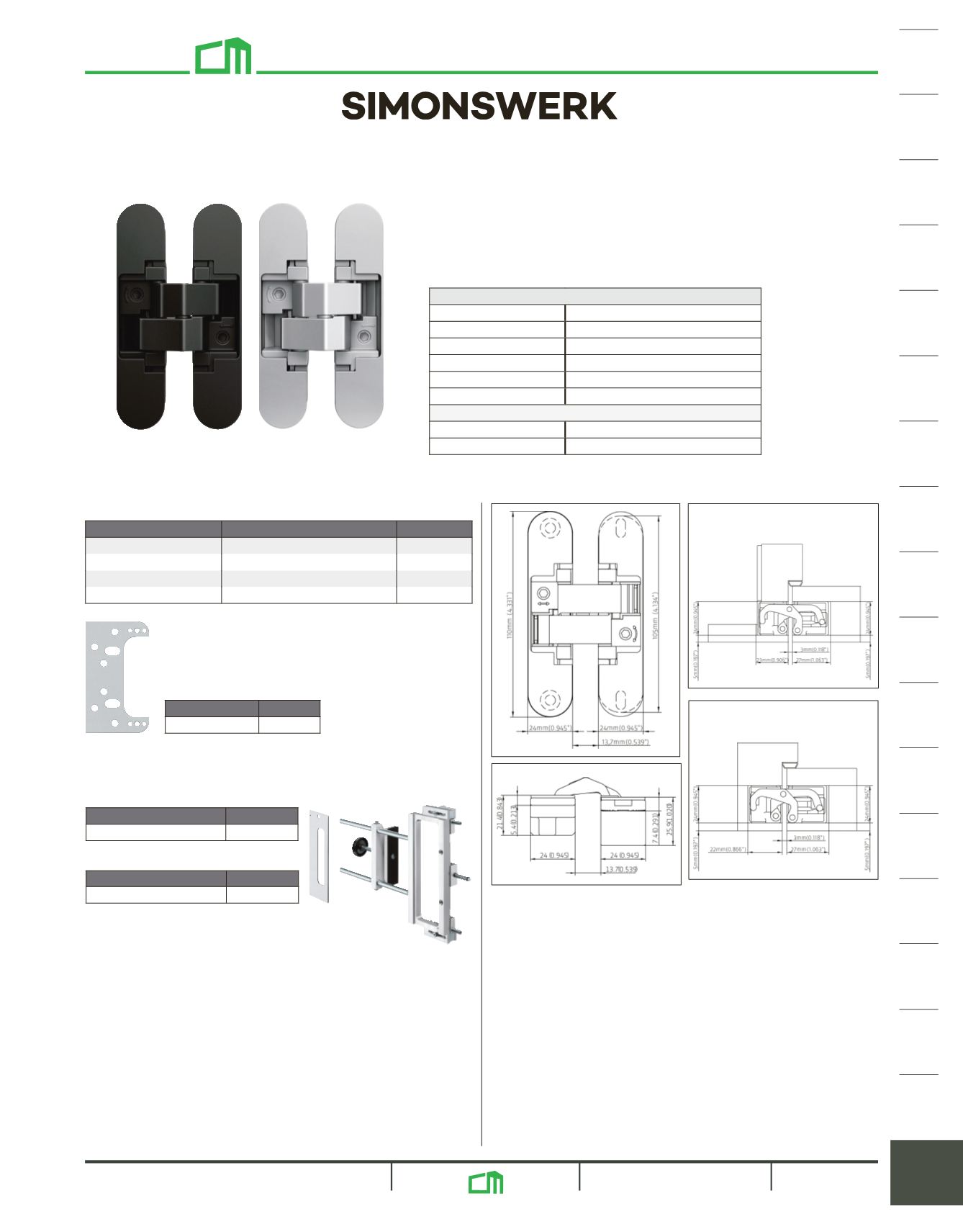

AN170 3D ANSELMI Hinges

• For use in wood or aluminum residential doors

• Low profile frame part 21 mm (7/8")

• Maintenance-free slide bearings

• Non-handed

• Optional milling frame and template (order separately)

4-5/16"H

Specifications

Door weight

132 lbs. (w/ 2 hinges)

Door size

35-7/16" x 82-11/16"

Door thickness

34-45 mm (1-5/16" to 1-3/4")

Opening angle

180°

Router bit

12.7 mm (1/2")

Router guide

25.4 mm (1")

Adjustment

Height and width ± 3 mm (1/8")

Depth

± 1.0 mm (1/16")

AN170-3D-018

Black

AN170-3D-036

Aluminum Chrome

Installation tools:

Universal milling frame, includes frame and clamping device.

Sold per each. (Order templates separately.)

Item No.

List Ea.

TE-MILLING-FRAME $1,101.69

Routing templates, sold per each.

Item No.

List Ea.

AN170-TMP

$156.61

See pg. 1114a for details.

Mounted to a commercial

wood door frame

Mounted to a wood door

frame with casing

Fixing plate (4-1/3"Hx 2-1/2"W) for unrebated door

with casing frame. Includes shims and installation

screws. Sold per each.

Item No.

List Ea.

AN170-FZ

$23.22

Hinges include installation screws. Sold per each.

Item No.

Finish

List Ea.

AN170-3D-018

Black

$65.01

AN170-3D-036

Aluminum Chrome

$65.01

AN170-3D-044

Satin Nickel Coated

$65.01

AN170-3D-049

Traffic White

$65.01
