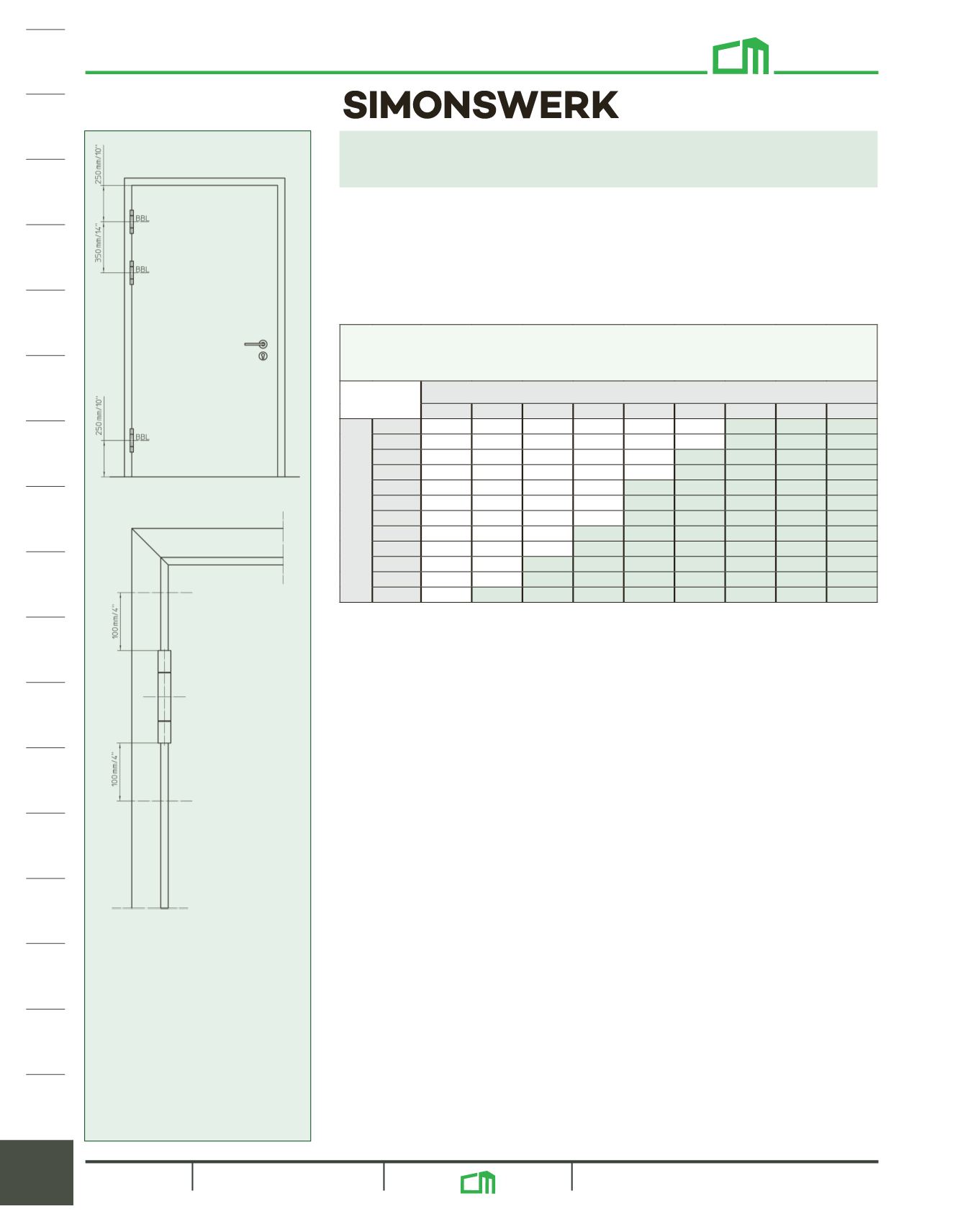

LOAD RATINGS
Values shown represent hinges positioned 10" from the top
and 10" from the bottom to the center of each hinge.
AN160/AN161/AN170 ANSELMI Hinges
(132 lb. load rating using 2 hinges per panel)
Highlighted weights show load values less than the 132 lb. load rating.
Door Width
30" 32" 36" 38" 40" 42" 44" 46" 48"
Door Panel Height
108"
132 132 132 132 132 132 130 125 119
102"
132 132 132 132 132 132 127 121 114
96"
132 132 132 132 132 130 125 119 110
94"
132 132 132 132 132 127 121 114 108
92"
132 132 132 132 130 125 119 110 103
90"
132 132 132 132 127 121 114 108 101
88"
132 132 132 132 125 119 110 103 97
86"
132 132 132 130 121 114 108 101 95
84"
132 132 132 127 119 110 103 97
90
82"
132 132 130 125 114 108 101 95
88
80"
132 132 127 121 110 103 97
90
86
78"
132 130 125 119 108 101 95
88
82
For residential interior door applications. The load specifications for Anselmi hinges are based
on maximum door weight. For residential interior doors with high frequency use, a third hinge
in the upper third of the door is recommended. The hinge must be positioned 14" below
the upper hinge (center to center). If a third hinge is placed in a different location, e.g. the
center, it does not increase load capacity. To achieve maximum load rating, the frame must
be anchored within 4" above and below the upper hinge. If a door stopper is necessary, it
should be mounted on the wall or on the floor at 75% of the door's width away from the
hinge axis in the direction of the lock.
