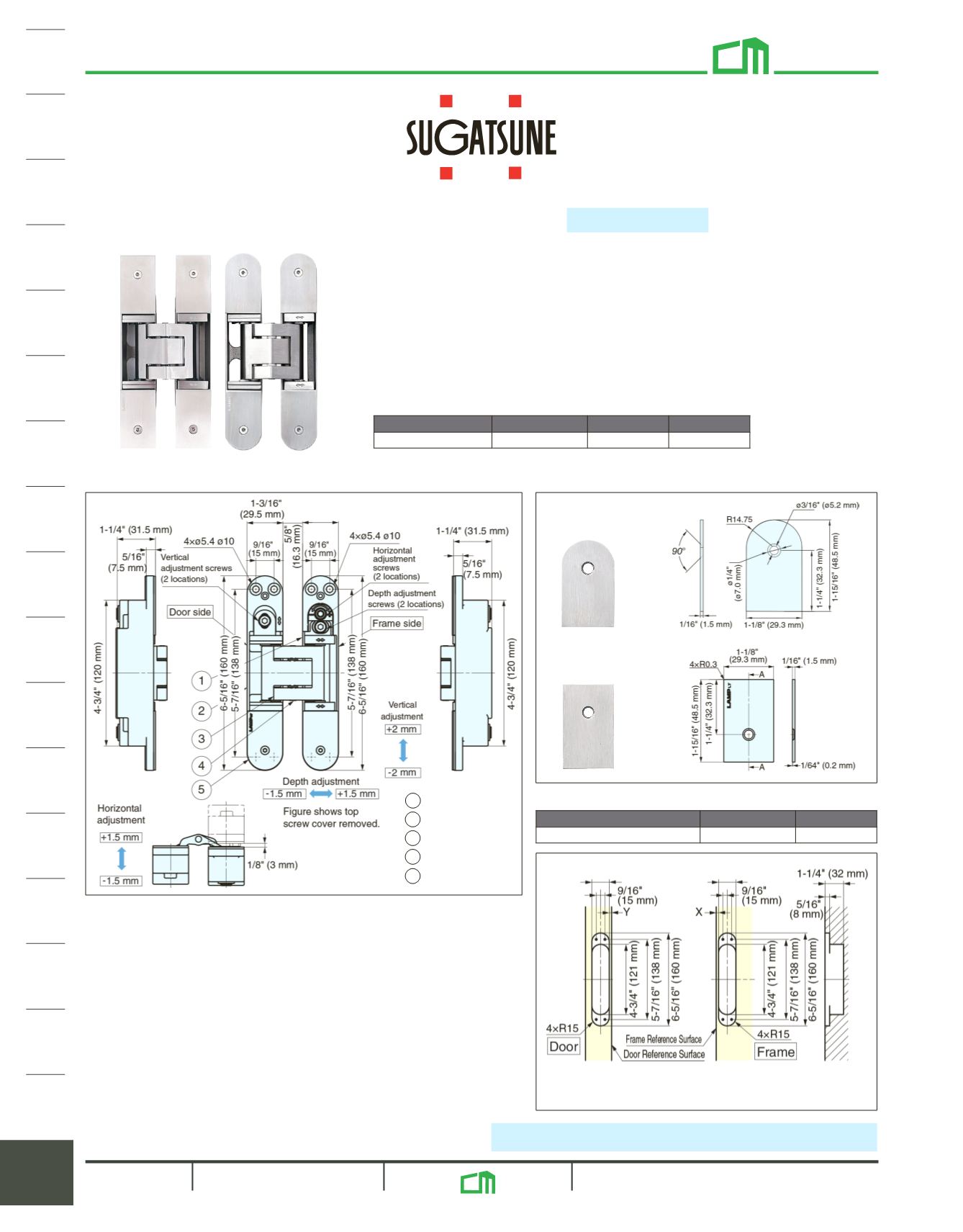

Charles McMurray Co. 2023 Catalog

1291a / 1645

• 304 stainless steel construction for excellent corrosion resistance
• 180° opening angle
• 3-way adjustment allows vertical, horizontal, and depth adjustment
• Flanges come apart for the door to be provisionally hung for making adjustments
• Includes round screw covers, square covers optional (order separately)
• Min. Door Thickness: 1-7/16"
• Max. Door Size: 96"H × 36"W
• Max. Door Weight: 176 lbs./2 pcs., 220 lbs./3 pcs.
• 6-5/16"H x 3"W
HGS3D-S160SH
3-Way Adjustable Concealed Hinge Stainless Steel
2 each per box with stainless steel hardware. Sold per each.
Item No. Finish List Ea. List Ea. 6
Stainless Steel $444.98 $409.84
4 per set with stainless steel hardware. Sold per set.
Item No. Finish List Ea.
Stainless Steel $15.90
04/24
1 Body
2 Base Frame
3 Arm
4 Shaft
5 Screw Cover
(Shown with optional
square screw covers)
Round Screw Cover
(included)
Square Screw Cover
(optional)
See next page for more specs
Bore Dimensions
When using square screw cover, drill the first oval hole in both the
door and frame as a square hole 1-3/16"W (30 mm) x 6-5/16"L (160
mm) x 5/16"D (8 mm).
