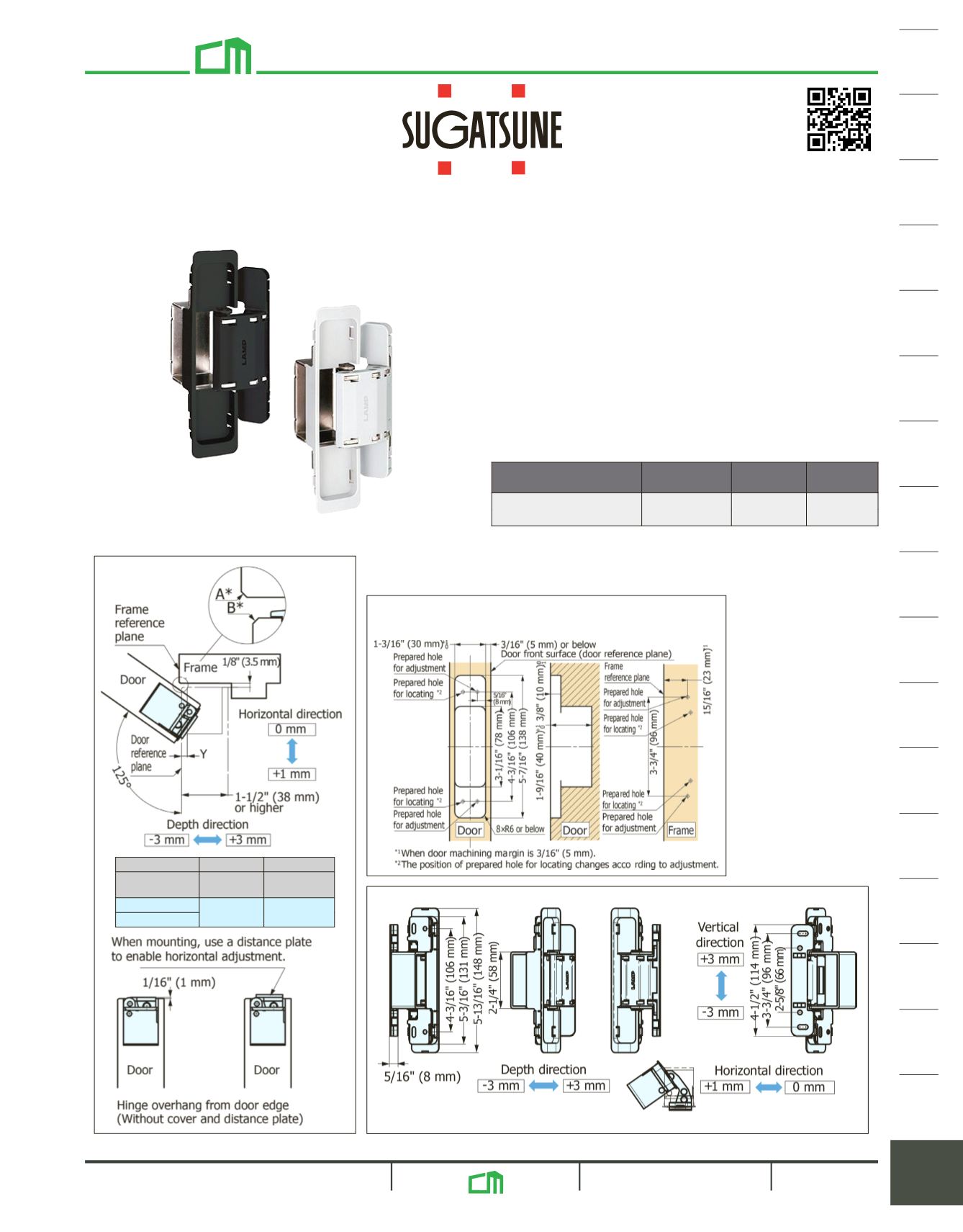

Charles McMurray Co. 2023 Catalog

1294a / 1645

03/23
HES2S-140-A125 Series
3-Way Adjustable Concealed Hinges (Frame Surface Mount)
• 3-way adjustment allows ±1/8" vertical, ±1/16" horizontal
with spacer, and ±1/8" depth adjustment after hinge
installation
• Surface mounts on door frame
• Limited 125° opening angle - door stopper required
• Min. Door Thickness: 1-1/2"
• Max. Door Size: 106-5/16"H x 35-7/16"W
• Max. Door Weight: 110 lbs./2 pcs., 143 lbs./3 pcs.
• Matte black, dark grey or light grey finish
• 5-13/16"H x 1-3/16"W
2 each per box with steel flat head screws. Sold per each.
Item No. Finish List Ea.
List Ea.
2
Matte Black $153.02 $140.94
Light Grey $153.02 $140.94
Light Grey (LGR)
Matte Black (BL)
Bore Dimensions
Drill pilot holes at the positions of the adjustment and locating screws.
Opened to 125° (with cover)
Y B A
Door Machining
Margin
Door
Chamfering
Frame
Chamfering
4 and under 1 or more 1 or more
5
