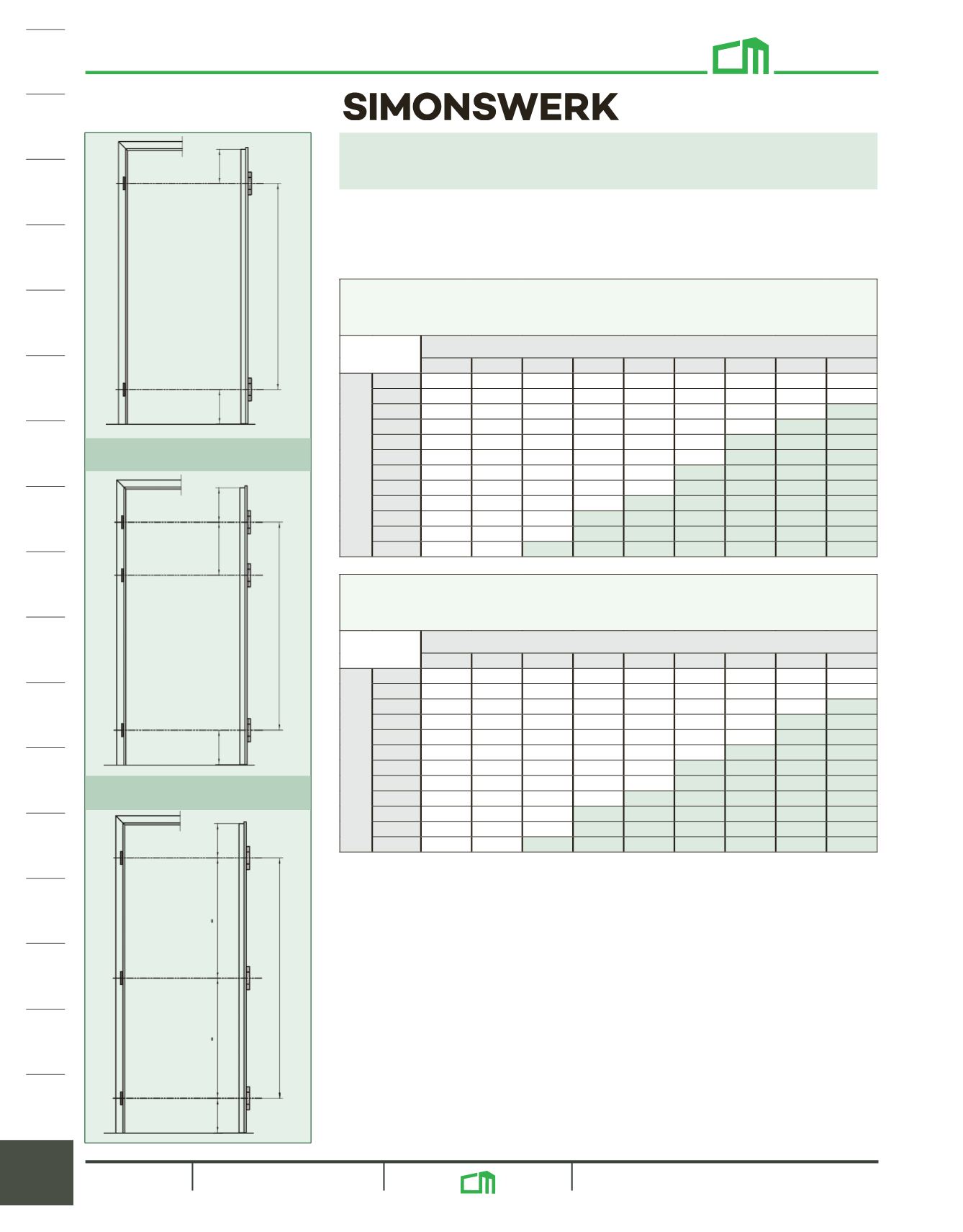

LOAD RATINGS
Values shown represent hinges positioned 10" from the top
and 10" from the bottom to the center of each hinge.
hinge spacing
10"
10"
hinge spacing
10"
10"
14"
10"
10"
hinge spacing
To increase the load rating of the hinges, a third hinge needs to be positioned 14" below
the upper hinge (center to center). The use of a third hinge to increase the load rating has
to be determined on a case by case basis. The hinge data refers to a height/width ratio of
the door of 2:1 or more. The hinge spacing does not increase the load rating. For exterior
doors use 3 hinges.
Doors less than 8'
Doors 8' or taller
TE640 TECTUS Hinges
(352 lb. load rating using 2 hinges per panel)
Highlighted weights show load values less than the 352 lb. load rating.
Door Width
36" 38" 40" 42" 44" 46" 48" 50" 52"
Door Panel Height
108" 352 352 352 352 352 352 352 352 352
102" 352 352 352 352 352 352 352 352 352
96" 352 352 352 352 352 352 352 352 343
94" 352 352 352 352 352 352 352 348 335
92" 352 352 352 352 352 352 352 339 326
90" 352 352 352 352 352 352 341 328 317
88" 352 352 352 352 352 348 332 319 308
86" 352 352 352 352 352 337 324 310 297
84" 352 352 352 352 341 328 313 302 288
82" 352 352 352 343 330 317 304 291 278
80" 352 352 352 337 321 306 295 282 271
78" 352 352 348 326 310 297 284 273 262
09/24
TE540 A8/TE541 TECTUS Hinges
(220 lb. load rating using 2 hinges per panel)
Highlighted weights show load values less than the 220 lb. load rating.
Door Width
36" 38" 40" 42" 44" 46" 48" 50" 52"
Door Panel Height
108" 220 220 220 220 220 220 220 220 220
102" 220 220 220 220 220 220 220 220 220
96" 220 220 220 220 220 220 220 220 213
94" 220 220 220 220 220 220 220 218 209
92" 220 220 220 220 220 220 218 211 202
90" 220 220 220 220 220 220 213 205 198
88" 220 220 220 220 220 218 207 200 191
86" 220 220 220 220 220 211 202 194 185
84" 220 220 220 220 213 205 196 187 180
82" 220 220 220 216 207 198 189 182 174
80" 220 220 220 207 200 191 182 176 169
78" 220 220 211 200 194 185 180 169 163
