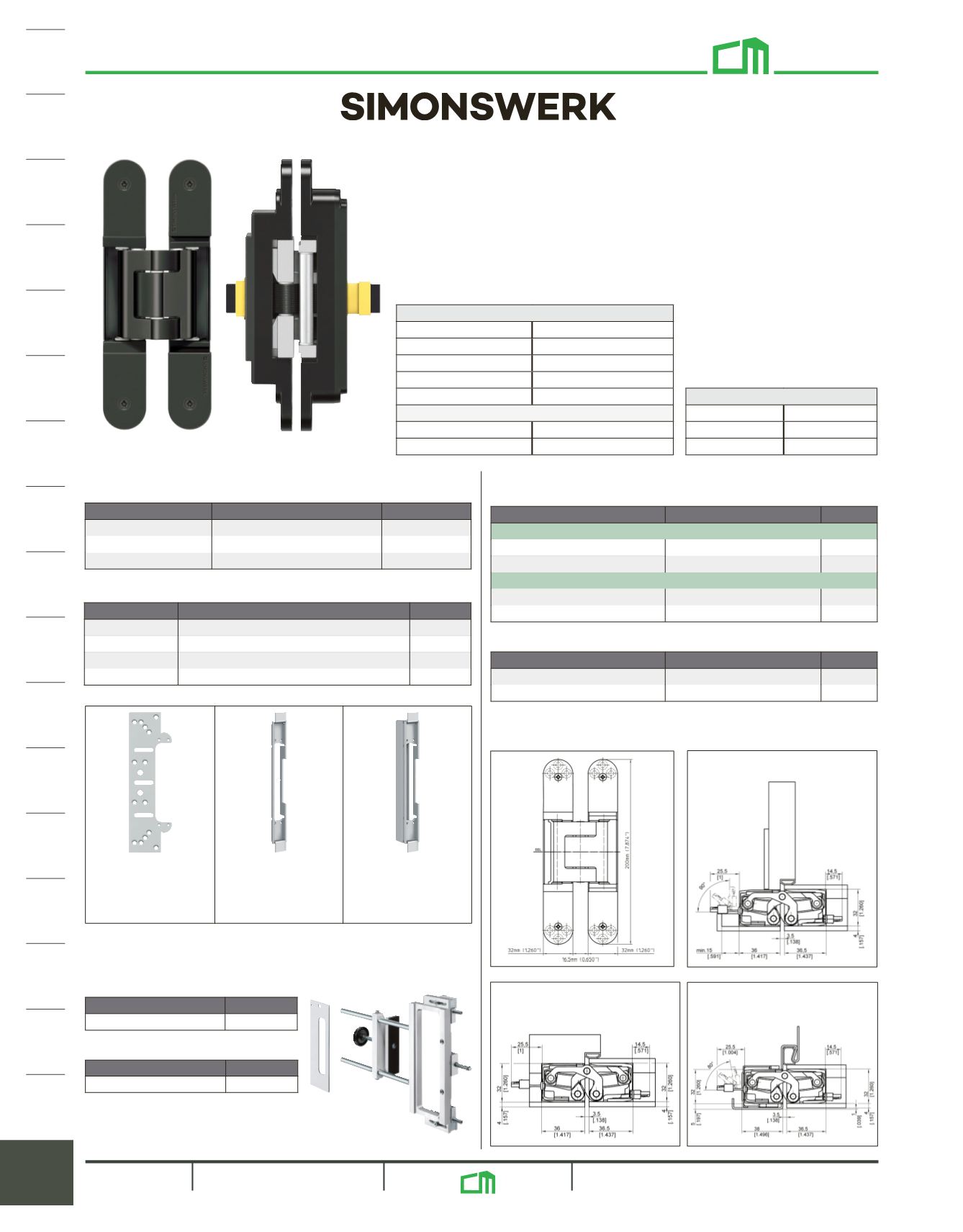

Charles McMurray Co. 2023 Catalog

1287a / 1645

09/24
TE540 3D Energy Kit TECTUS Hinges
• With integrated continuous energy transfer
• For use in wood or metal flush commercial doors
• Maintenance-free slide bearings
• Non-handed
• UL listed for 20 minute fire-rated doors
• Optional milling frame and templates (order separately)
• 7-7/8"H
Power
Voltage 24-50
Max. current 0.8A per wire
No. of wires 16
Hinges include covercaps, installation screws and (2) open-end
9' 7/8" round power cables. Sold per each.
Item No. Finish List Ea.
Matte Deep Black $1,160.88
24 Satin Chrome Look (F1) $1,061.82
5 Satin Nickel Look (F2) $1,061.82
Matte Deep Black
Specifications
Door weight 264 lbs. (w/ 2 hinges)
Door thickness 40 mm (1-5/8")
Opening angle 180°
Router bit 24 mm (3/4")
Router guide 30 mm (1")
Adjustment
Height and width ± 3 mm (1/8")
Depth ± 1.0 mm (1/16")
Installation tools:
Universal milling frame, includes frame and clamping device.
Sold per each. (Order templates separately.)
Item No. List Ea.
TE-MILLING-FRAME $1,101.69
Routing templates, sold per kit.
Kit No. List Kit
TE540-3D-EK-TMP $423.56
See pg. 1114a for details and kit components.
Fixing plate for
wood door frame
11-1/16"H x 3-3/8"W
Receiver for
metal door
11-1/4"H x 1-1/2"W
Receiver for metal
door frame
11-1/4"H x 1-1/2"W
Fixing plates and receivers, sold per each.
Item No. Description List Ea.
Wood frame fixing plate w/shims $34.91
Metal door receiver $51.08
Metal frame receiver $57.27
Metal frame receiver, stainless steel $89.78
Replacement parts:
Covercaps, (2) door or frame side per set. Sold per set.
Set No. Finish List Set
Door Side
Matte Deep Black $33.25
Satin Chrome Look (F1) $29.93
Frame Side (shows Simonswerk logo)
Matte Deep Black $33.25
Satin Chrome Look (F1) $29.93
Screw pack for covercaps. Sold per pack.
Set No. Finish List Set
Matte Deep Black $23.27
Nickeled $23.27
Mounted to a commercial
wood door frame
Mounted to a hollow
metal frame
Mounted to a wood door
frame with casing
DOOR
HARDWARE
TOOLS FASTENERS SHOP &
FINISHING
ABRASIVES LACQUERS &
FINISHES
ADHESIVES FURNITURE
HARDWARE
EDGING &
DECOR.WOOD
SHELF &CLOSET
ORGANIZERSKITCH./BATH
LIGHTING SLIDES
DOORS &DRAWERS
LOCKS &CATCHES
AVENTOS &
LIFTS
CABINETHINGES
DECORATIVEHARDWARE
DOOR LOCKS & HARDWARE
800.533.0533 1287a Prices subject to change without notice.
McMurray.com
