Charles McMurray Co. 2023 Catalog

1286 / 1645

09/24

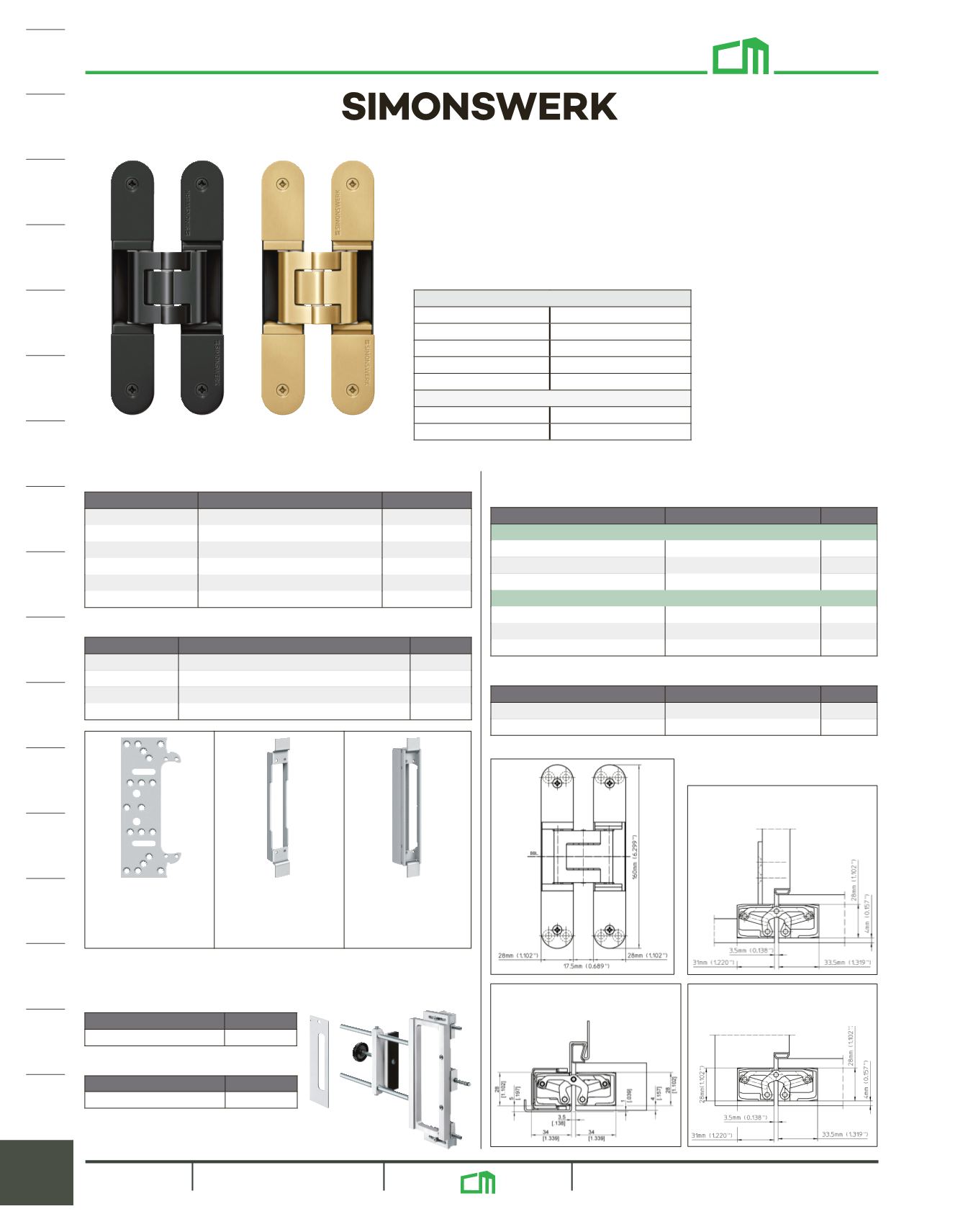

TE340 3D TECTUS Hinges
• For use in wood or metal flush residential and commercial doors
• Maintenance-free slide bearings
• Non-handed
• UL listed for 20 minute fire-rated doors
• Optional milling frame and templates (order separately)
• 6-5/16"H
Specifications
Door weight 176 lbs. (w/ 2 hinges)
Door thickness 38 mm (1-1/2")
Opening angle 180°
Router bit 24 mm (3/4")
Router guide 30 mm (1")
Adjustment
Height and width ± 3 mm (1/8")
Depth ± 1.0 mm (1/16")
Hinges include covercaps and installation screws. Sold per each.
Item No. Finish List Ea.
Satin Brass $380.77
Traffic White $258.49
Matte Deep Black $258.49
Satin Chrome Look (F1) $207.41
Satin Nickel Look (F2) $207.41
Dark Bronze $380.77
Matte Deep Black Satin Brass
Mounted to a commercial
wood door frame
Mounted to a wood door
frame with casing
Mounted to a hollow
metal frame
Installation tools:
Universal milling frame, includes frame and clamping device.
Sold per each. (Order templates separately.)
Item No. List Ea.
TE-MILLING-FRAME $1,101.69
Routing templates, sold per kit.
Kit No. List Kit
TE340-3D-TMP $266.95
See pg. 1114a for details and kit components.
Fixing plates and receivers, sold per each.
Item No. Description List Ea.
Wood frame fixing plate w/shims $34.91
Metal door receiver $51.08
Metal frame receiver $32.51
Metal frame receiver, stainless steel $89.78
Replacement parts:
Covercaps, (2) door or frame side per set. Sold per set.
Set No. Finish List Set
Door Side
Matte Deep Black $33.25
Satin Chrome Look (F1) $29.93
Satin Nickel Look (F2) $29.93
Frame Side (shows Simonswerk logo)
Matte Deep Black $33.25
Satin Chrome Look (F1) $29.93
Satin Nickel Look (F2) $29.93
Screw pack for covercaps. Sold per pack.
Set No. Finish List Set
Matte Deep Black $23.27
Nickeled $23.27
Fixing plate for
wood door frame
7-7/8"H x 2-5/8"W
Receiver for
metal door
8-7/8"H x 1-5/16"W
Receiver for metal
door frame
8-1/4"H x 1-3/8"W
