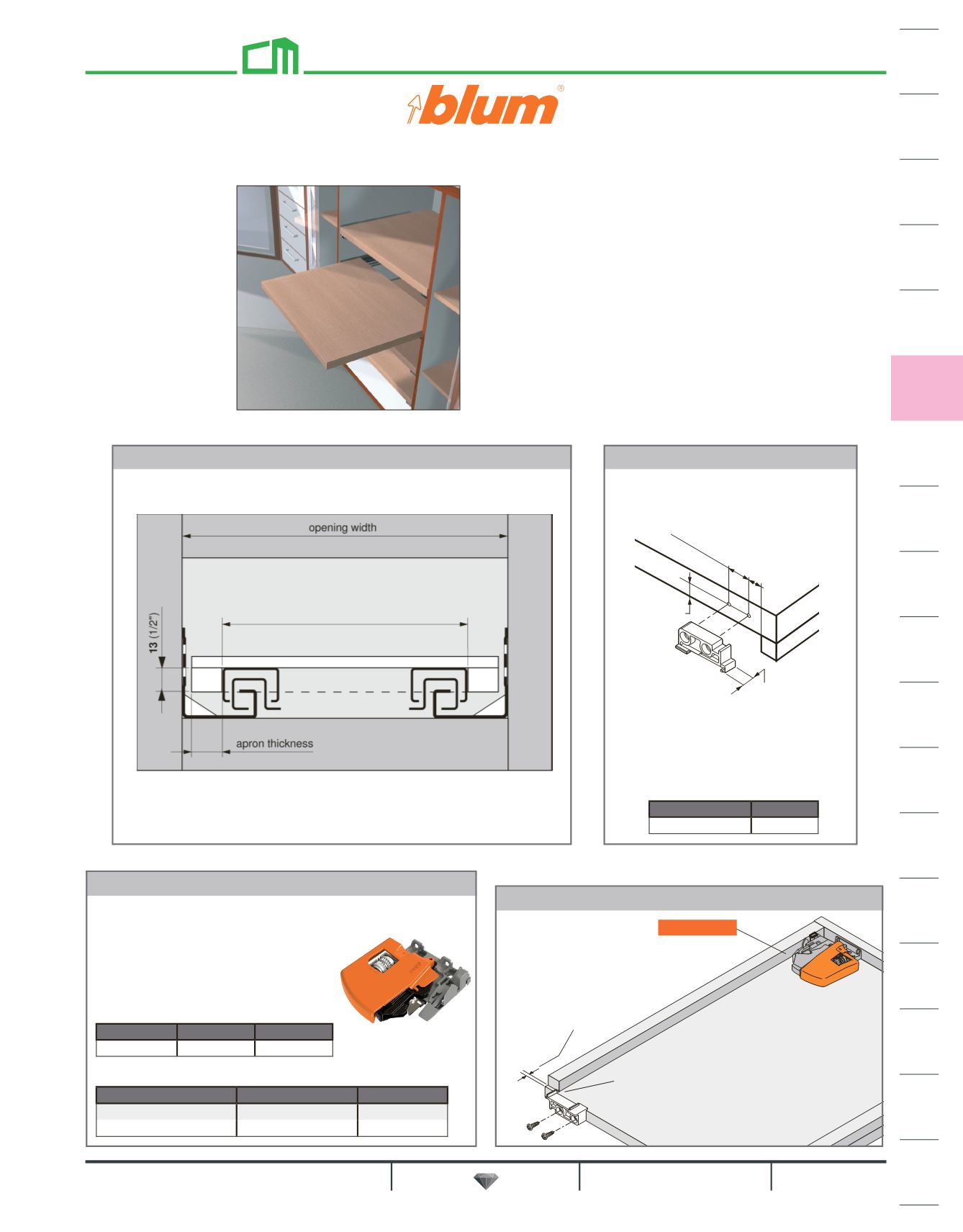

Charles McMurray Co. 2021 Catalog

417 / 1590

• Possible with any TANDEM runner
• 100 lb. static load capacity
Description
Set side apron 1/8"
from back shelf panel
Align inside of mounting
block tip with inside
edge of the apron
8 (5/16")
16 (5/8")
20
(25/32")
10 (13/32")
Roll-Out Shelf Application
Front view
Shelf size and position in opening
Attach rear mounting block to the back of
the shelf instead of notching and boring.
Rear mounting block
Eliminates the need to edge bore holes
for hooks on roll-outs. Orders #6 x 3/4"
FHPH screws separately.
NOTE: Shelf length = specified runner
length minus 10 (13/32")
Side adjustable locking device
Shelf assembly
opening width minus 42 (1-21/32") for H Series
opening width minus 49 (1-15/16") for F Series
• One left and one right required per drawer
• With side-to-side adjustment
• Self-adjusting drawer length tolerance
• Minimum inside drawer width 170 (6-11/16")
• Height adjustment +3 (1/8")
• Side adjustment ±1.5 (1/16")
• For use with 563/569 series runners only
• For other options see page 420
Item No. Box List Pair
100 pr $6.76
Maximum apron thickness 16 (5/8") for H
Maximum apron thickness 19 (3/4") for F
Item No. List Ea.
$3.34
Screws for slides & locking devices. Large flathead #6 x 5/8".
Item No. Box List c
1c $5.94
10c $32.00
