Charles McMurray Co. 2021 Catalog

416a / 1590

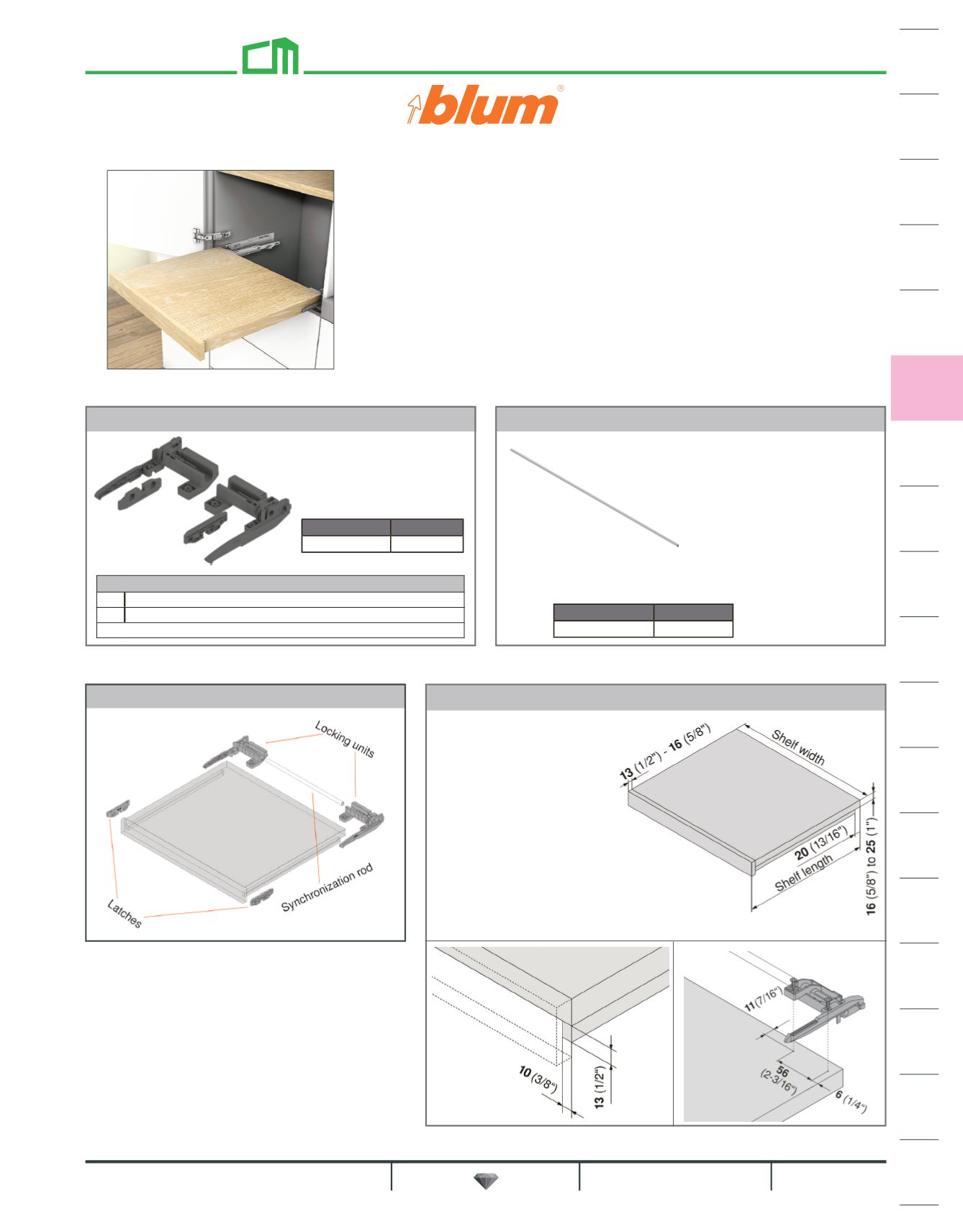

Basic components Pull-out shelf assembly
Pull-out shelf lock set Synchronization rod
Pull-Out Shelf Lock
Set Includes
2 Locking Units (install with #6 FH wood screws)
2 Latches (install with #6 FH wood screws or system screws)
Installation Instructions
• Aluminum material
• Length 1089 (42-7/8")
• Opening width:
Minimum = 170 (6-11/16")
Maximum = 1176 (46-5/16")
Item No. List Set
$35.80
Pull-out shelf lock can be releasedwith one hand
when the synchronization rod is used.
Item No. List Ea.
$10.40
• Shelf width = opening width minus 22 (7/8")
• Shelf length = specified length for runner
minus 28 (1-1/8")
NOTE: Length = opening width minus 87 (3-7/16")
04/21
Description
• For TANDEM 563 H/., and all MOVENTO slides
• Can be combined with TIP-ON BLUMOTION
• Two-sided locking for secure hold
• Can be released with one hand from either side of the shelf
• Easy installation with self-aligning components
• No change to runner installation
• Easily integrated into existing manufacturing processes
• for frameless or blocked-out face frame applications,
for face frame only
• NOT for use with TANDEM plus BLUMOTION 9" length runners
NOTE: Length = opening width
minus 87 (3-7/16")
