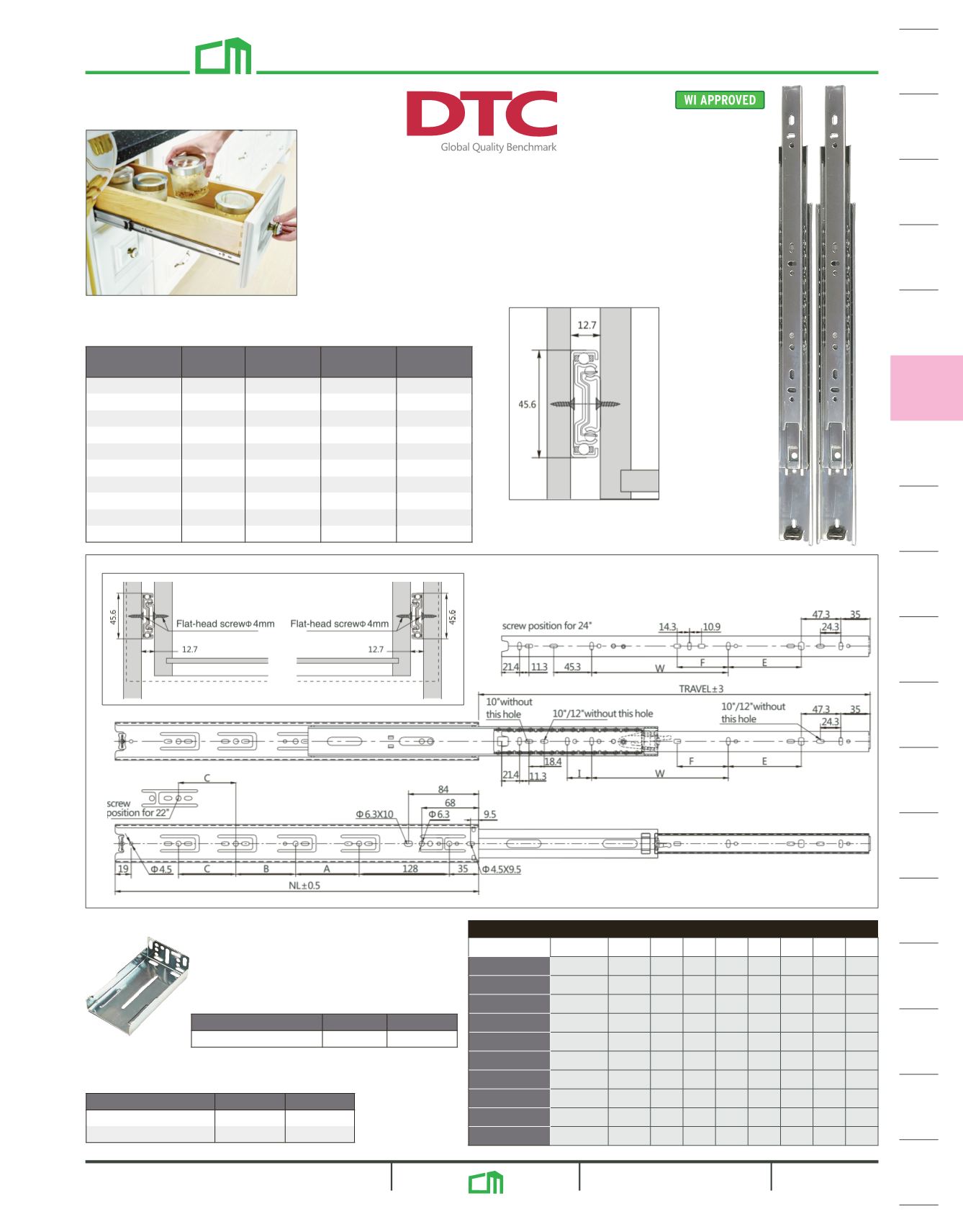

Charles McMurray Co. 2023 Catalog

476a / 1645

Side Clearance:1/2" (12.7 mm)
Height: 1-13/16" (45.6 mm)
01/24
Bulk pack 10 pair per box without screws. Price is per pair.
Order screws separately.
Item No. Length List Pair
List Pair
10
List Pair
50
10" $11.44 $10.46 $8.92
12" $11.44 $10.46 $8.92
14" $12.34 $11.34 $9.76
16" $13.92 $12.78 $11.00
18" $15.10 $13.92 $12.02
20" $16.44 $15.14 $13.08
22" $16.42 $15.20 $13.22
24" $19.50 $17.96 $15.52
26" $21.40 $19.66 $16.92
28" $22.92 $21.06 $18.12
Rear Mounting Bracket
50 pair per box, sold by the pair.
Item No. Box List Pair
50pr $2.34
• Ball-bearing movement
• Non-handed design
• Zinc finish
Standard Ball-Bearing Series
Full Extension Drawer Slide
Side Mount - 100 lb. Load Rating
#8 x 7/16" coarse thread, trusshead, #2 phillips screws.
Sold per box.
Item No. Box List Box
MCAC7168-1C 1c $6.12
MCAC7168-10C 10c $40.14
Item NL Travel A B C E F W I
250 (10") 254.4 48.2
300 (12") 304.1 96 48.2
350 (14") 355.3 96 80.7 10
400 (16") 407.1 96 96 80.7 35
450 (18") 459.1 96 128 80.7 60.2 192
500 (20") 507.8 96 192 80.7 85.4 192
550 (22") 557.8 96 128 96 80.7 110.5 192 96
600 (24") 611.9 96 128 128 80.7 110.5 288
650 (26") 661.9 96 128 192 80.7 110.5 288 128
700 (28") 719.6 96 128 192 80.7 110.5 288 128
Installation Dimensions
Installation Screw Positions (matches Accuride hole pattern)
