Charles McMurray Co. 2023 Catalog

428 / 1645

12/23
LW=Internal Cabinet Width SKW=Internal Drawer Width

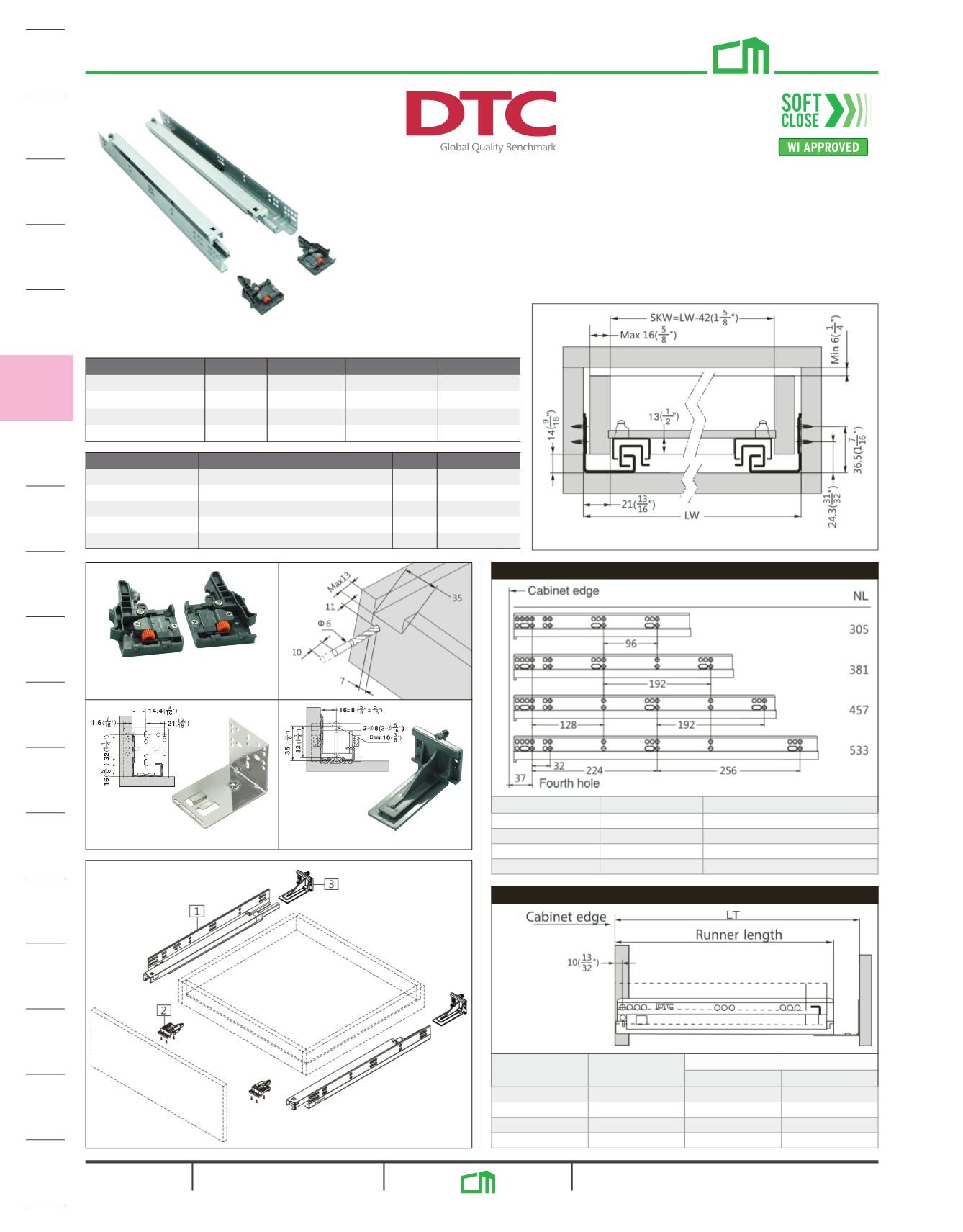

D-Motion 1D Undermount Slides
Series SS20DD
Soft-Close, Full Extension
75 lb. Load Rating
Slides include locking devices (1D-CLIP with screws). Order slide
screws and rear mounting brackets separately. Sold per pair.
Item No. Length Box List Pair List Pair 6
12" 6 $29.10 $25.46
15" 6 $29.10 $25.46
18" 6 $28.38 $24.96
21" 6 $30.22 $26.60
Item No. Description Box List Price
Rear Mounting Bracket-Metal 100pr $1.02 pr
Rear Mounting Bracket-Plastic 90pr $1.19 pr
Locking Device 100pr $3.66 pr
MCFPT587NI-1C Screws for slides #7 x 5/8" FHPH 1c $8.24 bx
Screws for CLIPS #6 x 1/2" TH 1c $11.48 bx
• Silent system guarantees smooth run without noise
• Drawer height adjustment: +3 mm
• Maximum drawer thickness is 5/8"
• Zinc-plated
1. Slide
2. Locking Device
3. Rear Mounting
Bracket
Drawer length Slide Length
Internal Cabinet Depth
Maximum Minimum
305 (12") 317 (12-1/2") 369 (14-9/16") 326 (12-7/8")
381 (15") 394 (15-1/2") 446 (17-9/16") 403 (15-7/8")
457 (18") 470 (18-1/2") 522 (20-9/16") 479 (18-7/8")
533 (21") 546 (21-1/2") 598 (23-9/16") 555 (21-7/8")
LT = Internal
cabinet depth
Installation Dimensions Face Frame Cabinet (with rear bracket)
Installation Dimensions Frameless Cabinet
Drawer length Slide Length Minimum Int. Cab. Depth
305 (12") 317 (12-1/2") 326 (12-7/8")
381 (15") 394 (15-1/2") 403 (15-7/8")
457 (18") 470 (18-1/2") 479 (18-7/8")
533 (21") 546 (21-1/2") 555 (21-7/8")
NL = Nominal slide length
1D locking device
Notching
for locking
device
DOOR
HARDWARE
TOOLS FASTENERS SHOP &
FINISHING
ABRASIVES LACQUERS &
FINISHES
ADHESIVES FURNITURE
HARDWARE
EDGING &
DECOR.WOOD
SHELF &CLOSET
ORGANIZERSKITCH./BATH
LIGHTING SLIDES
DOORS &DRAWERS
LOCKS &CATCHES
AVENTOS &
LIFTS
CABINETHINGES
DECORATIVEHARDWARE
SLIDES
800.533.0533 428 Prices subject to change without notice.
