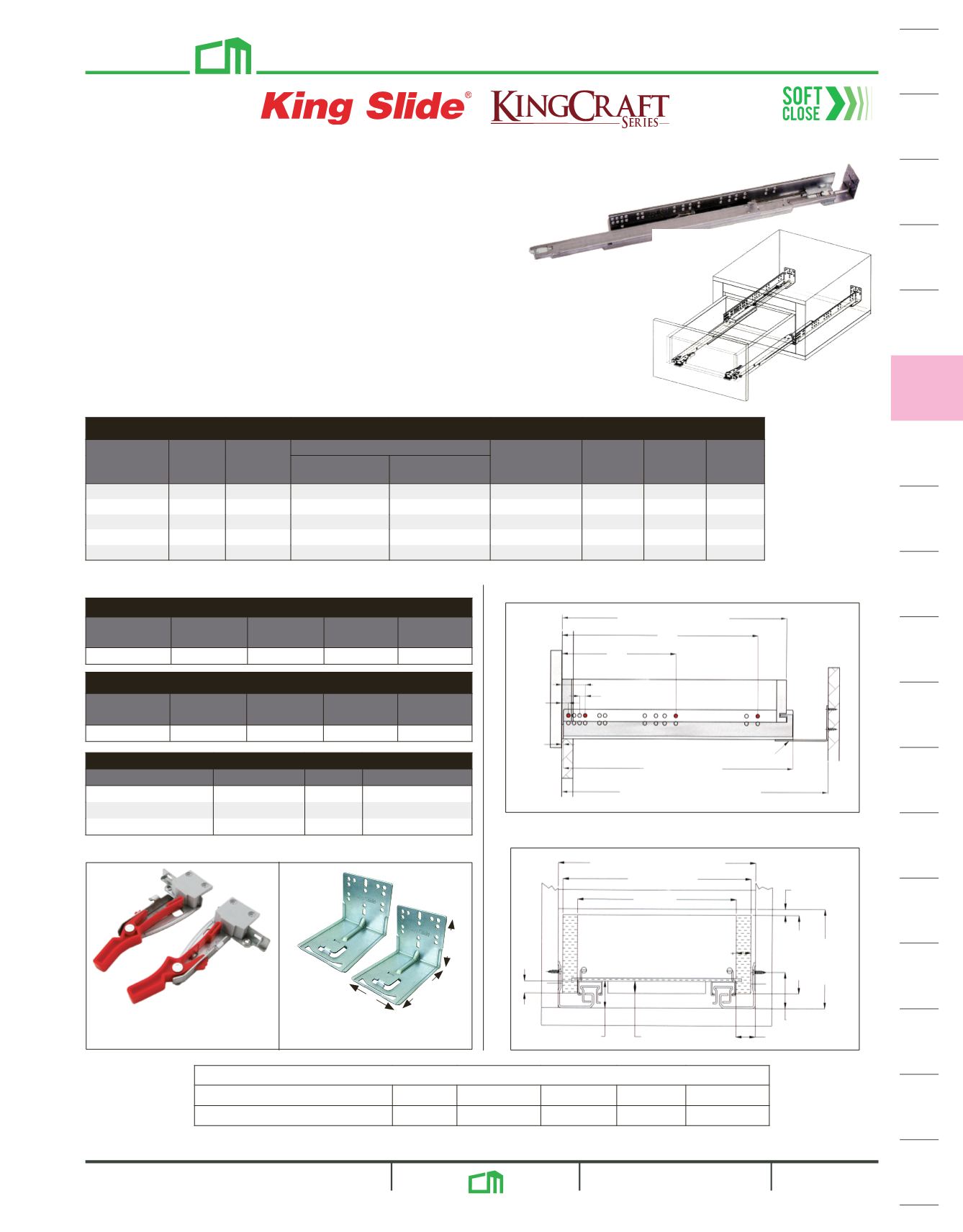

Charles McMurray Co. 2023 Catalog

427 / 1645

Concealed Slide with Silent Soft-Closing
Full Extension, 75 lb. Load Rating
• Under mount with Full Extension travel length
• Ultra smooth gliding motion with high rigidity and stability design
• Enhanced silent soft-closing feature with light opening force
• Durable damping system with fast response capability
• Tool-less drawer height adjustment from the drawer front with 3.5 mm range
• Effortless assembly and removal of drawer with front release lever
• High installation allowance for drawer width: +0/-2 mm, and for drawer depth +1/-1 mm
• For face frame cabinets, maximum drawer side thickness of 5/8"
• Made of galvanized steel
drawer length
B
A
profile length
cabinet depth with bracket
bracket
37 (1-7/16")
9 (11/32")
4
(5/32")
10
(3/8")
internal cabinet width (W)
drawer width
W - 42+0
-2
min 6
13 (1/2") min. 27.5
max. 14 (9/16")
21 (13/16")
37 (1-7/16")
opening
drawer height
max=opening -20 mm (13/16")
Space Requirement
Installation Specification
Example: For 21" inside cabinet width and a 5/8" thick drawer: 21" minus 3/8" = 20-5/8" drawer width
Formula for calculating outside drawer width
For drawer side thickness 16 (5/8") 15 (19/32") 14 (9/16") 13 (1/2") 12 (15/32")
Deduct from inside cabinet width 10 (3/8") 12 (15/32") 14 (9/16") 16 (5/8") 18 (23/32")
6 pair per box. Order locking devices, rear brackets and screws separately.
Slides Only
Item No.
Drawer
Length
Overall
Cabinet
Depth
Cabinet Depth w/Bracket
Profile
Length List Pair
List Pair
6
List Pair
48 Max. Min.
9" 12" 299 (11-25/32") 266 (10-15/32") 256 (10-1/16") $69.22 $61.80 $58.66
12" 15" 369 (14-9/16") 326 (12-7/8") 317 (12-1/2") $49.72 $43.76 $41.28
15" 18" 446 (17-9/16") 403 (15-1/2") 394 (15-1/2") $58.18 $54.70 $48.83
18" 21" 522 (20-9/16") 479 (18-7/8") 470 (18-1/2") $56.16 $50.16 $47.60
21" 24" 598 (23-9/16") 555 (21-7/8") 546 (21-1/2") $58.08 $51.86 $49.22
* 9" slide includes locking devices and rear brackets.
Locking Devices - sold per pair.
Item No. Box List Pair
List Pair
100
List Pair
270
270 pr. $6.40 $2.94 $2.54
Rear Brackets - sold per pair.
Item No. Box List Pair
List Pair
100
List Pair
270
270 pr. $6.32 $5.76 $4.86
Screws - sold per box
No. Description Box List Box
#7 x 5/8" 1c $8.24
#7 x 5/8" 5c $27.42
#7 x 5/8" 10c $42.28
No.
Locking Devices, sold per pair.
No.
Rear Brackets, sold per pair.
2-1/4"
2-3/4" 2"
