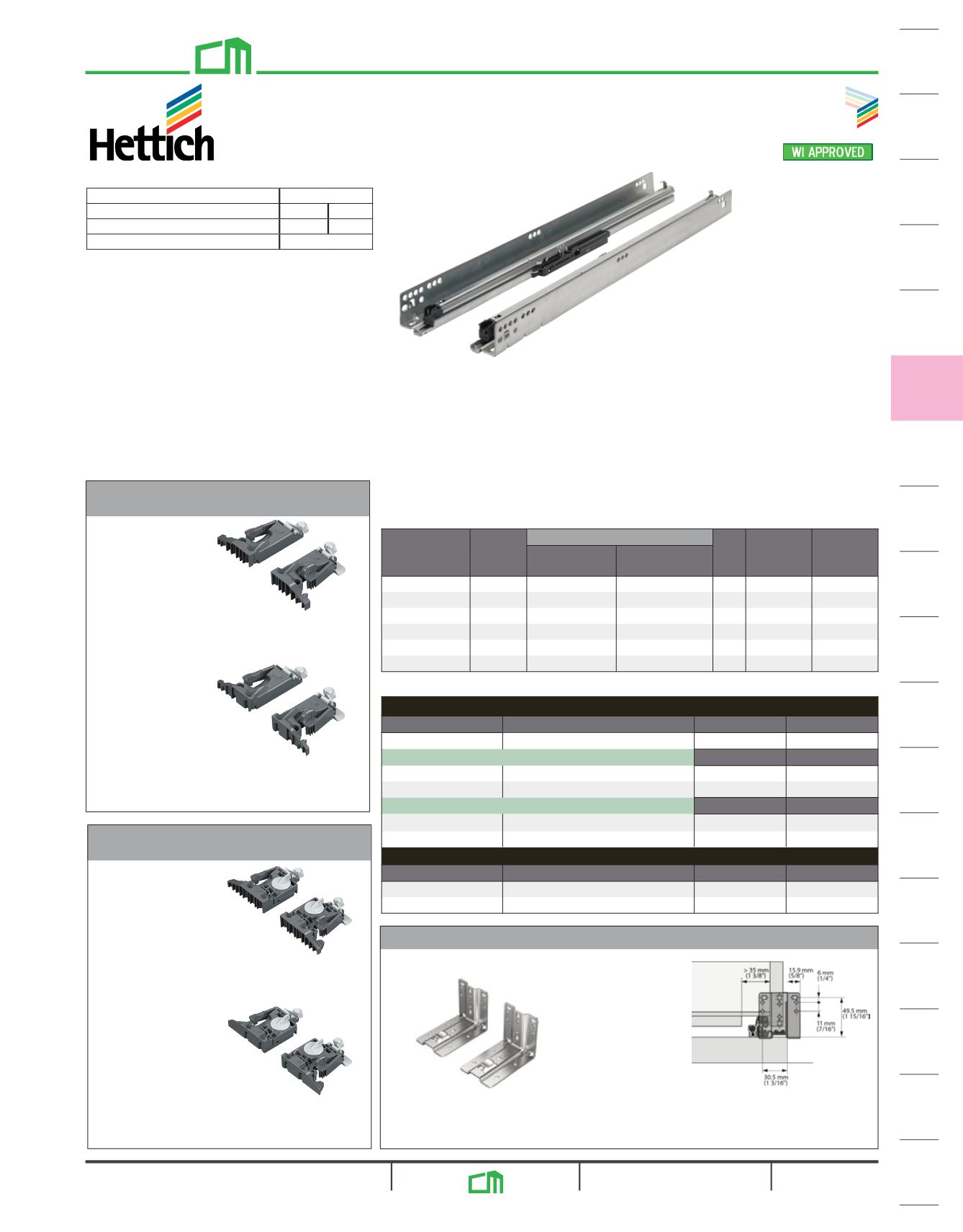

Quadro 2D V6 IW 21 Silent-Closing Slide
Full Extension, 90 lb. Load Rating
IW = Installation Width 21 mm
Drawer side thickness 13 mm 16 mm
Outside drawer width = ICW minus 16 mm 10 mm
Inside drawer width = ICW minus 42 mm
Max. drawer height = cabinet opening height
minus 20 mm (13/16")
Min. cabinet opening height = drawer height
plus 20 mm (13/16")
Metal Rear Mounting Brackets
• For up to 37 mm (1-7/16") depth adjustment and ± 2 mm (3/32") side adjustment
• Additional adjustment via oblong holes
• Recommended installation with minimum two #6 panhead screws, sold separately
• Meets or exceeds ANSI/BHMA 156.9 grade 1 requirements
• Silent System: an integrated damping device closes the drawer softly and quietly
• Self-Cleaning: steel ball bearings sweep the dirt aside
• Perfect vertical and lateral stability: optimal slide action through precision-guided
steel ball bearings
• For 1/2" or 5/8" drawer panel thickness
• Fluid piston for smooth closing
• For narrow applications
Includes 2 metal brackets
Silent
System
IW21-1D-LOCK
Locking Devices
IW21-2D-LOCK
Locking Devices
IW21-2D-LOCK12
• For 1/2" drawer
subfront thickness
• With + 3.0 mm height
adjustment, and +/- 2.0 mm
side adjustment
• Minimum drawer inside width = 130 mm (5-1/8")
• Recommended installation with two #6 x 3/4"
flathead screws per locking device, sold separately
IW21-2D-LOCK58
• For 5/8" drawer
subfront thickness
• With + 3.0 mm height
adjustment, and +/- 2.0 mm
side adjustment
• Minimum drawer inside width = 130 mm (5-1/8")
• Recommended installation with two #6 x 5/8"
flathead screws per locking device, sold separately
IW21-1D-LOCK12
• For 1/2" drawer
subfront thickness
• With + 3.0 mm height adjustment
• Minimum drawer inside width = 95 mm (3-3/4")
• Recommended installation with two #6 x 3/4"
flathead screws per locking device, sold separately
IW21-1D-LOCK58
• For 5/8" drawer
subfront thickness
• With + 3.0 mm height adjustment
• Minimum drawer inside width = 95 mm (3-3/4")
• Recommended installation with two #6 x 5/8"
flathead screws per locking device, sold separately
Order rear brackets, locking devices and screws separately. Sold per pair.
Item
No.
Drawer
Length
Face Frame w/Rear Bkt
Box List Pair
List Pair
Full Box
Minimum
Int. Depth
Maximum
Int. Depth
9" 250 (9-7/8") 294 (11-9/16") 10 $61.96 $55.44
12" 333 (13-1/8") 370 (14-9/16") 10 $60.68 $54.28
15" 409 (16-1/8") 446 (17-9/16") 10 $61.72 $55.20
18" 485 (19-1/8") 522 (20-9/16") 10 $42.20 $37.84
21" 561 (22-1/8") 598 (23-1/2") 10 $44.12 $39.64
24" * * 10 $81.08 $72.56
* No rear attachment, must be blocked out.
Accessories
Item No. Description List Pair List Pair 10
Rear Mounting Bracket $10.60 $9.64
1D Locking Devices List Pair List Pair 50
1/2" Material $3.02 $2.84
5/8" Material $2.64 $2.48
2D Locking Devices List Pair List Pair 50
IW21-2D-LOCK12 1/2" Material $5.48 $5.14
5/8" Material $4.80 $4.50
Screws
Item No. Description Box Qty List Box
#6 x 3/4" Flathead Phillips 1c $7.68
#6 x 5/8" Flathead Phillips 1c $4.84
