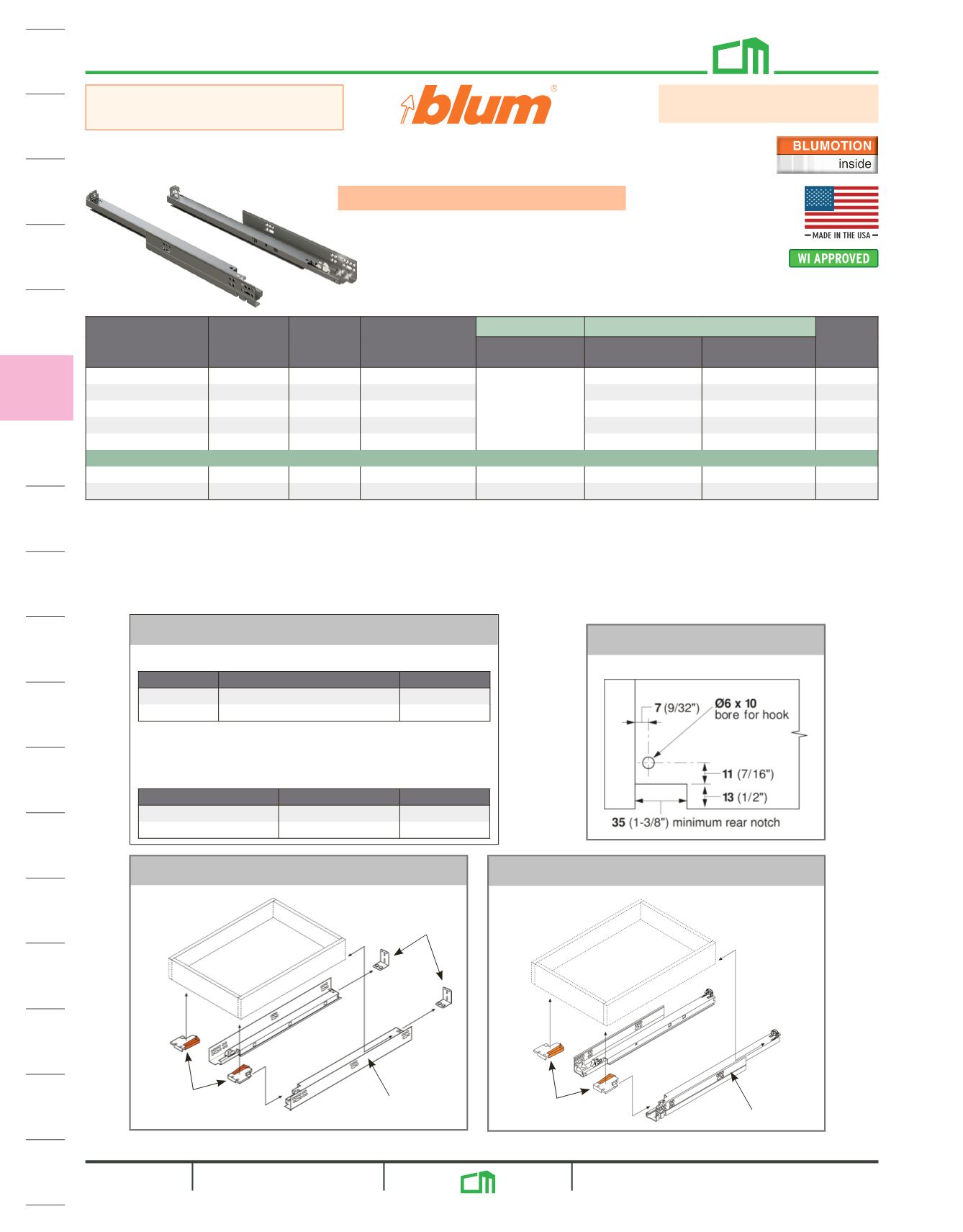

Charles McMurray Co. 2023 Catalog

404 / 1645

TANDEM plus BLUMOTION 563H & 563. (SHORT) Drawer Slides
Maximum Material = 5/8"
Full Extension, 100 lb. Load Rating
Drawer Back Preparation Accessories
Basic Components f/B563H
Maximum drawer thickness is 16 mm (5/8").
Order slides, locking devices
and screws separately.
optional
rear brackets
(face frame only)
locking devices runner profile
Rear view
Basic Components f/SHORT563
locking devices runner profile
NOTES:
• For SHORT563. series runners rear brackets cannot be used. Cabinet sides must be blocked-out flush with the inside of the frame.
• For inset applications see pages 408-409.
Item No. Blum No.
Drawer
Length
Profile
Length
Panel Face Frame w/Rear Bkts
List Pr.
Minimum
Interior Depth
Minimum
Interior
Maximum
Interior
563H2290B 229 (9") 259 (10-3/16")
Setback +
Profile Length
+3 mm
266 (10-15/32") 299 (11-25/32") $68.46
563H3050B 305 (12") 319 (12-9/16") 328 (12-29/32") 370 (14-9/16") $45.32
563H3810B 381 (15") 395 (15-9/16") 404 (15-29/32") 446 (17-9/16") $54.74
563H4570B 457 (18") 471 (18-17/32") 480 (18-29/32") 522 (20-9/16") $42.76
563H5330B 533 (21") 548 (21-9/16") 557 (21-15/16") 599 (23-19/32") $44.10
Short Style
563.4570B 457 (18") 471 (18-17/32") 480 (18-29/32") --- --- $40.32
563.5330B 533 (21") 548 (21-9/16") 557 (21-15/16") --- --- $41.60
6 pair per box.
Locking Devices - 100 pair per box, sold per pair.
Item No. Description List Pair
Standard $3.84
W/Side-to-Side Adjustment $6.76
For additional locking devices see page 414.
Rear brackets for face frame application see page 415.
Screws for slides& lockingdevices. Large flathead#6 x 5/8".
Item No. Box List Box
1c $6.16
10c $33.28
For complete specifications order Blum
TANDEM catalog: B-TANDEM563/569
