• Uses the same 763 or 769 series runner
• Requires increased setback of the runner
• Depth adjustment ±2 (3/32"), preset at 0
• Integrated 3 (1/8") distance bumper for inset or overlay SERVO-DRIVE applications
• For use with standard locking devices only (BT51.7601)
• Not for use with TIP-ON BLUMOTION
One set per drawer
763H/763./769 Runner Setback
Sub-front
thickness
13 (1/2") 19.5 (25/32") 22.5 (7/8") 25.5 (1")
16 (5/8") 22.5 (7/8") 25.5 (1") 28.5 (1-1/8")
19 (3/4") 25.5 (1") 28.5 (1-1/8") 31.5 (1-1/4")
16 (5/8") 19 (3/4") 22 (7/8")
Drawer front thickness
• Setbacks in this table recess the face of the drawer front inside of the
cabinet 0.5 (1/32")
• The depth adjustment can then be used to move the drawer front in
or out to its desired position ±2 (3/32")
Calculating runner setback
Sub-front thickness + drawer front thickness minus 9.5 (3/8") = runner setback
Locking Devices - 100 pair per box, sold per pair.
Item No. Description List Pair
Standard $8.00
Set includes left and right add-on depth adjustment.
Order one set per drawer.
Set No. Box List Set List Set 40
40 $13.20 $11.18

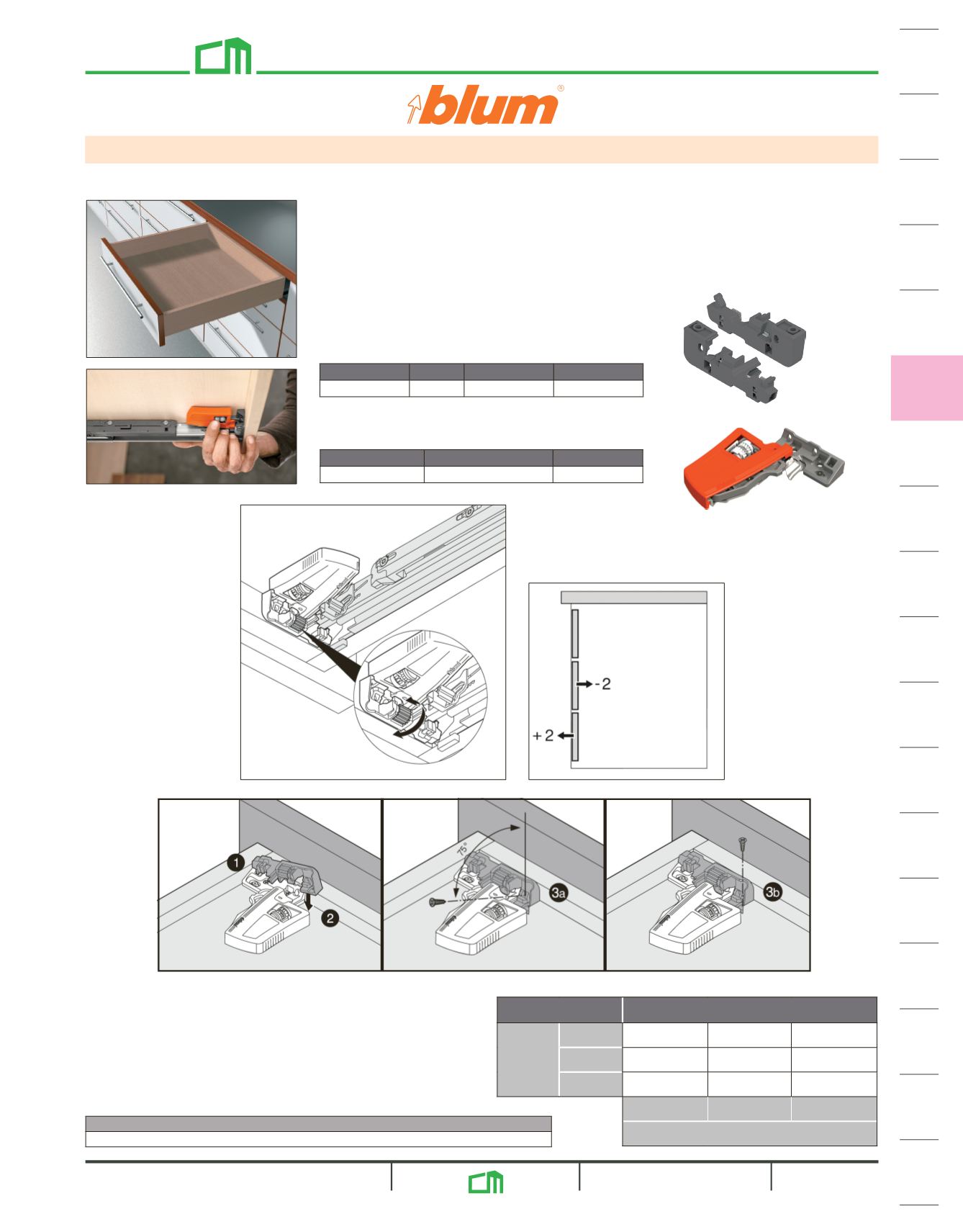

763 or 769 MOVENTO Drawer Slides
Add-On Depth Adjustment for Inset Drawer Application
