Formula for calculating outside drawer width
For drawer side thickness
16 (5/8")
15 (19/32")
13 (1/2")
12 (15/32")
Deduct from inside cabinet width 10 (13/32") 12 (15/32")
16 (5/8")
18 (23/32")
Example: For 21" inside cabinet width and a 5/8" thick drawer: 21"minus 13/32" =20-19/32" drawer width
Drawer Box Specifications
NOTE:
Drawer side material thickness may vary. Accurate measurement of drawer side material thick-
ness should be used when calculating outside drawer width using the table below. Inside drawer width
must
equal opening width minus
42
(1-21/32") for MOVENTO runners to align and function optimally.
Front view
system or #6FH
wood screw
Drawer Back Preparation
Rear view
Runner Close-Up
NOTE:
Elongated holes are for ±4.5 (3/16")
depth adjustment only. Additional screws must
be used to secure the runner to the cabinet.
Drawer
Length
Screw Locations
A
B
769 Series
457 (18") 261 (10-9/32") 357 (14-1/16")
533 (21") 261 (10-9/32") 357 (14-1/16")
610 (24") 261 (10-9/32") 389 (15-5/16")
686 (27") 261 (10-9/32") 389 (15-5/16")
762 (30") 261 (10-9/32") 389 (15-5/16")
NOTE:
The orange dots indicate fixing screw locations required to meet specified load ratings.
Profile Mounting Specifications
Side View

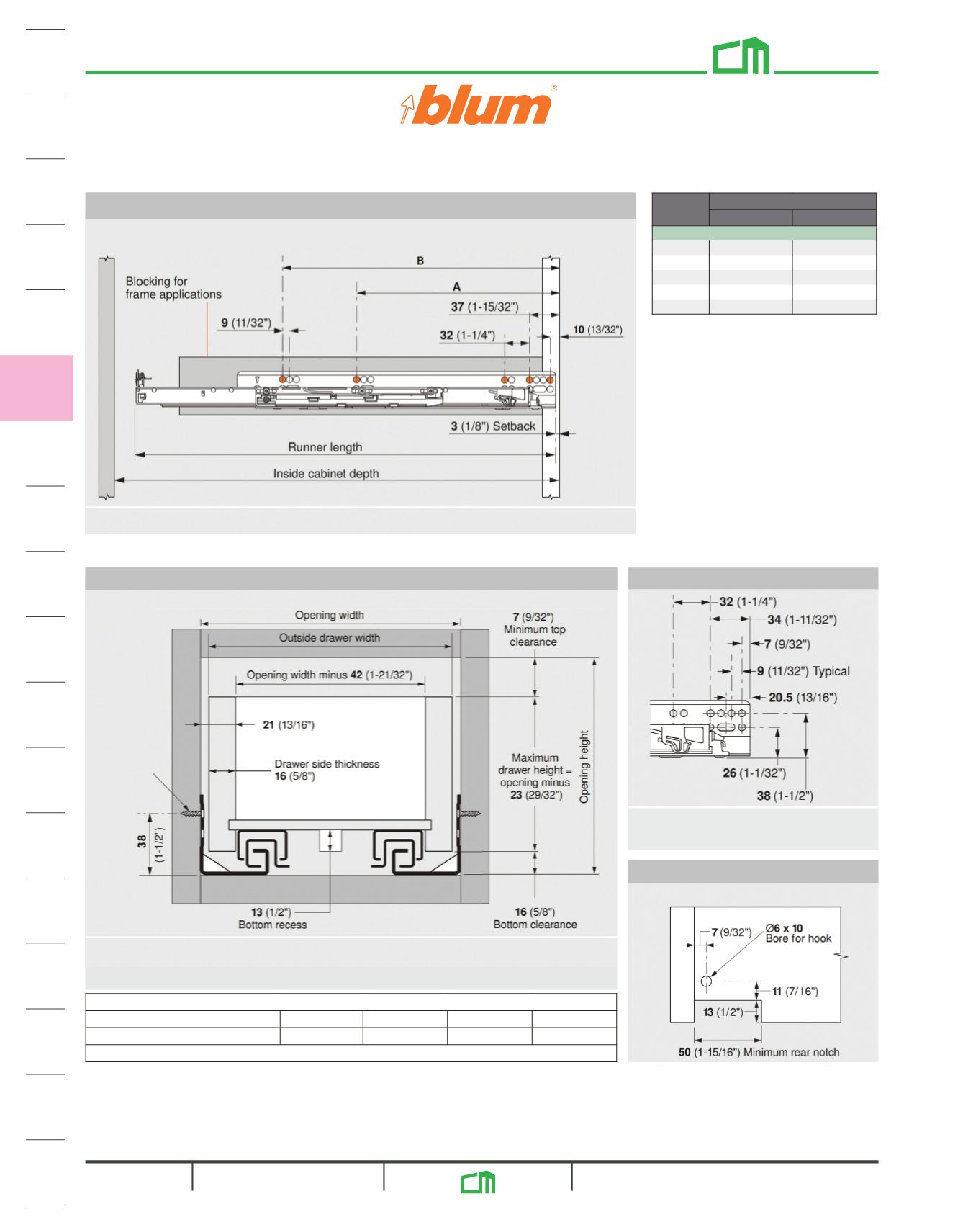

MOVENTO 769. Drawer and Cabinet Specifications
