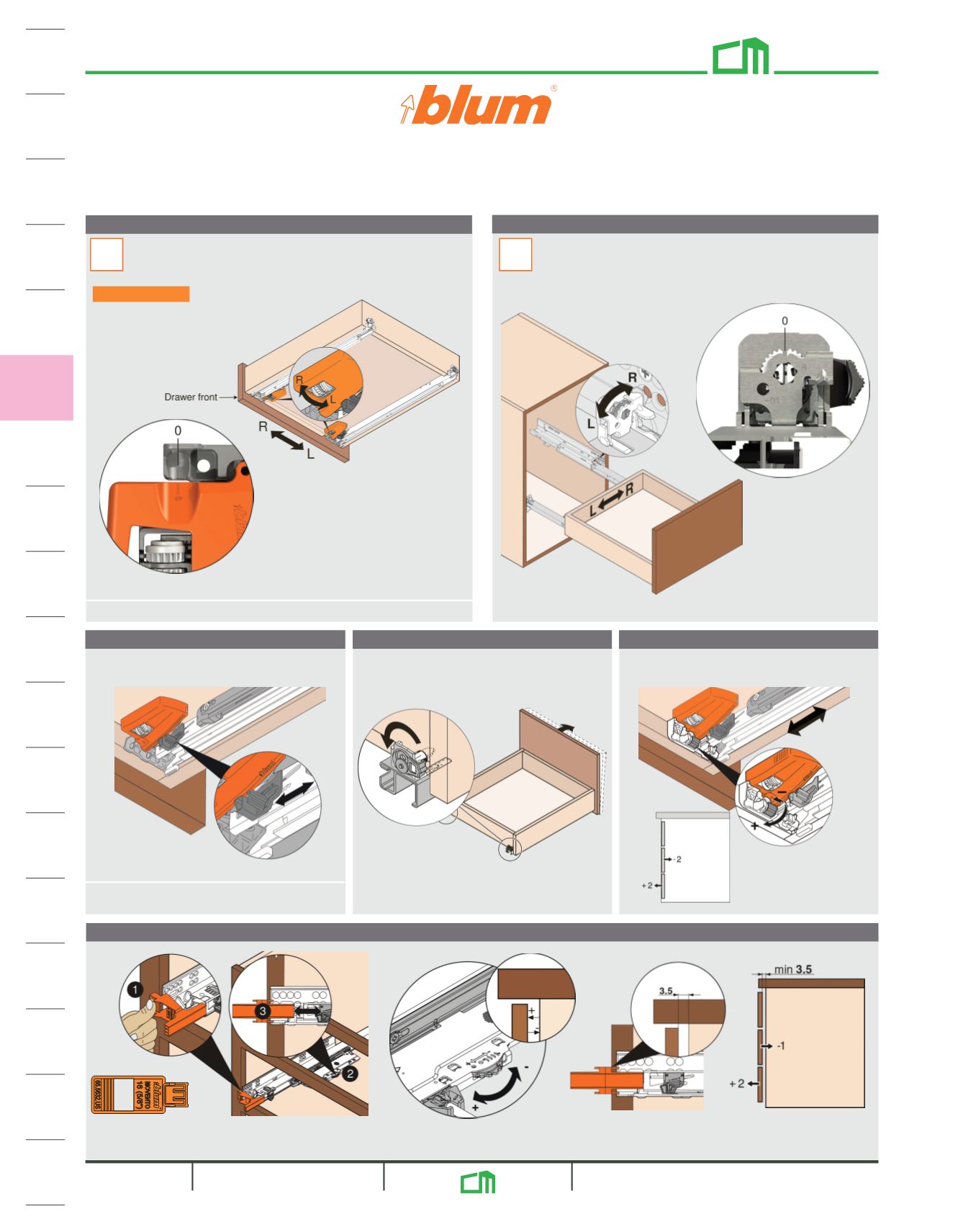

MOVENTO 763/769 Series For Wood Drawers

General Specifications

BT51.7601.

Height adjustment

Rotate side-to-side adjustment left or right equally on both

locking devices. Drawer front moves in the same direction

as rotation.

with side-to-side adjustment

After front side-to-side adjustment is made with the locking

devices, rotate the rear side-to-side adjustment left or right

to re-align the back of the drawer box with the front. Drawer

back moves in the same direction as rotation.

Maximum

1.5

(1/16") to left or right (tool-free)

Maximum

1.5

(1/16") to left or right (tool-free)

NOTE:

Not available on

BT51.0501.20

narrow locking devices

Front side-to-side adjustment

Rear side-to-side adjustment

Maximum

(1/8")riseofdrawerfront(tool-free)

NOTE:

Height adjustment available on all

MOVENTO runners

Press up on adjustment tab and push toward

back of drawer.

Rotate the tilt adjustment lever on the rear

of each runner to tilt the top of the drawer

front forward

Not for use with TIP-ON BLUMOTION

Maximum

(3/16") rise of drawer back

(tool-free)

TIP-ON BLUMOTION depth adjustment

NOTE:

Using the

B65.5632.US

front gap template is highly recommended. Adjust left and right runner.

NOTE:

Using 15/32" or 1/2" drawer thickness without

BT59.K010M,

13 (1/2") text should be visible instead.
