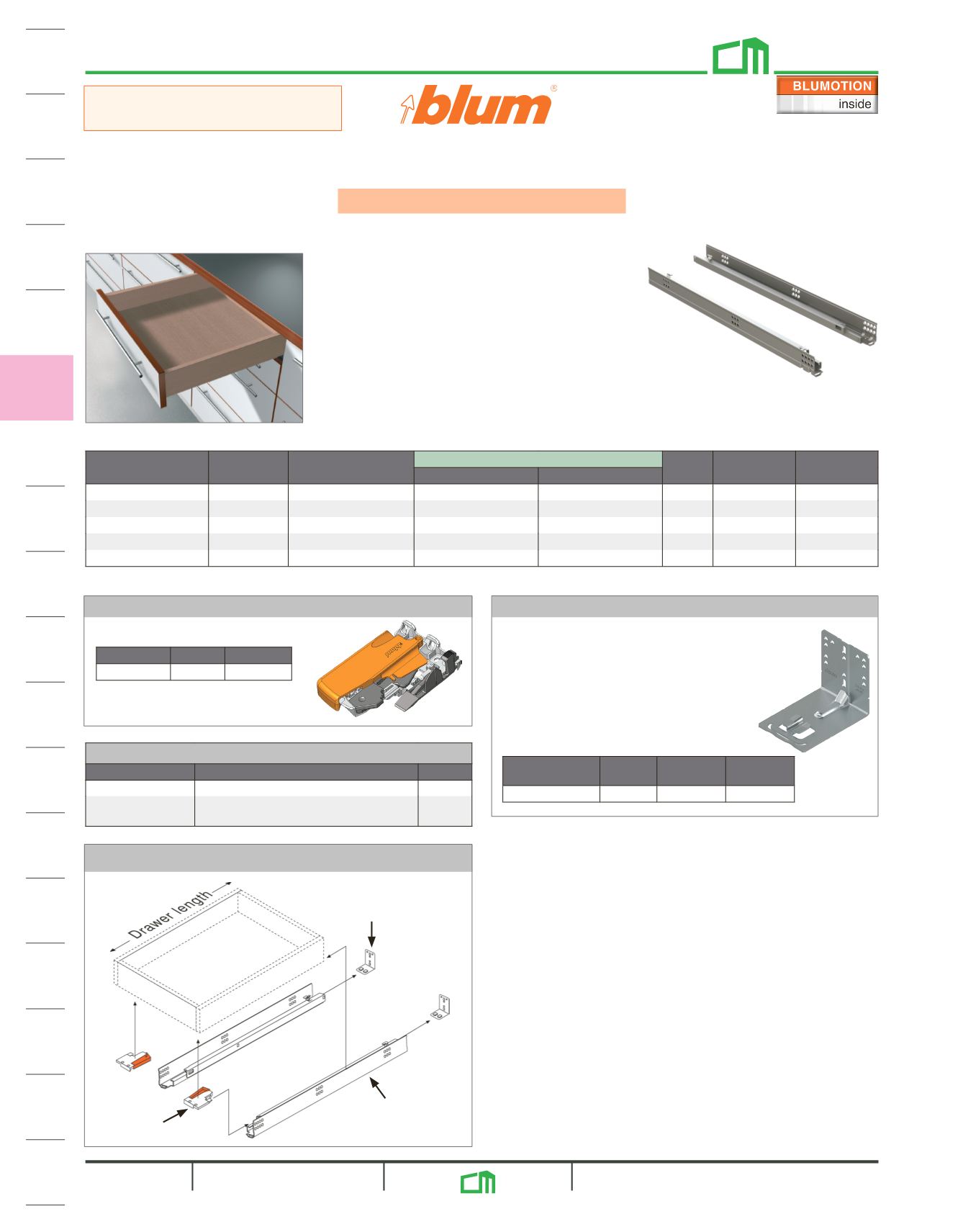

Charles McMurray Co. 2023 Catalog

400 / 1645

Basic Components
Rear Mounting Bracket for Frame Cabinets Locking Devices
TANDEM edge BLUMOTION 554H Drawer Slides
Maximum Material = 5/8"
7/8 Extension, 75 lb. Load Rating
locking
device
runner
rear bracket
(face frame only)
Sold per pair.
Item No.
Drawer
Length Runner Length
Face Frame w/Rear Bkts
Box List Pair
List Pair
8 Minimum Maximum
229 (9") 274 (10-25/32") 284 (11-3/16") 299 (11-3/4") 8 $32.88 $29.48
305 (12") 331 (13-1/32") 341 (13-7/16") 375 (14-3/4") 8 $30.32 $26.78
381 (15") 407 (16-1/32") 417 (16-13/32") 451 (17-3/4") 8 $30.90 $26.78
457 (18") 484 (19-1/16") 494 (19-7/16") 527 (20-3/4") 8 $29.66 $25.70
533 (21") 560 (22-1/16") 570 (22-7/16") 604 (23-3/4") 8 $29.66 $25.70
• 7/8 extension concealed runners
• Face frame or frameless cabinets
• BLUMOTION soft-closing
• TANDEM smooth running action
• 13 (1/2") to 16 (5/8") drawer thickness
• Locking devices enable easy drawer insertion and removal
• Dynamic load rating 75 lb*
• Static load rating 100 lb*
• Recommended maximum drawer width is 21"
* Per ANSI/BHMA 156.9 grade 1 standards on a 21" length drawer box
For usewhen installing TANDEM runners in face frame
cabinets. Not for use with 9" runners, SHORT version
or heavy-duty slides.
• Two required per drawer
• Depth and lateral self-alignment
• Zinc-coated steel
Item No. Box List Each
List Each
100
100 $2.04 $1.62
Standard LockingDevices - soldper pair
Item No. Box List Pair
100 pr $3.84
Screws
Item No. Description List c
For slides #7 x 5/8" FHPH $8.24
B612TH100 For locking devices #6 x 1/2"
Trusshead (4 needed per pair.) $11.48
Maximum drawer thickness is 16 mm (5/8").
Order slides, locking devices
and screws separately.
DOOR
HARDWARE
TOOLS FASTENERS SHOP &
FINISHING
ABRASIVES LACQUERS &
FINISHES
ADHESIVES FURNITURE
HARDWARE
EDGING &
DECOR.WOOD
SHELF &CLOSET
ORGANIZERSKITCH./BATH
LIGHTING SLIDES
DOORS &DRAWERS
LOCKS &CATCHES
AVENTOS &
LIFTS
CABINETHINGES
DECORATIVEHARDWARE
SLIDES
800.533.0533 400 Prices subject to change without notice.
