410 / 1645
• One left and one right required per drawer
• Dynamic load rating 25 lb. maximum
• Self-adjusting drawer length tolerance
• Vertical mount, two-piece nylon
• Minimum inside drawer width
95
(3-3/4")
• Height adjustment +
3
(1/8")
• Minimum sub front thickness
16
(5/8")
• Designed for
13
(1/2") drawer bottom recess
Item No.
List Pair
BT51.0801.20$5.28
Attach locking devices
Drawer back preparation
• For use with 563 series drawer slides
• For inside drawer widths of
95
(3-3/4") to
124
(4-7/8")
• Special narrow locking device required
• Maximum dynamic load rating for narrow drawer locking device is 25 lbs.
• Minimum
16
(5/8") sub front thickness
Description
For use when installing TANDEM runners
in face frame cabinets. Not for use with 9"
runners, SHORTversionor heavy-duty slides.
• Two required per drawer
• Depth and lateral self-alignment
• Zinc-coated steel
Item No.
List
Each
List Each
100
B2953750$2.04 $1.62
1. Position locking device in front corner of the drawer
2. Pre-bore locking device mounting screw holes with
Ø2.5 mm piloting bit
3. Attach with #6 x 5/8" (MCFPT586LH) largehead flathead
screws (4 each per pair)
NOTE:
A minimum of 16 (5/8") sub front thickness is
required for mounting the narrow drawer locking device.
Rear view
Rear mounting bracket for frame cabinets
Narrow drawer locking device
NOTE:
Not recommended for 569 slides due to weight limitations.

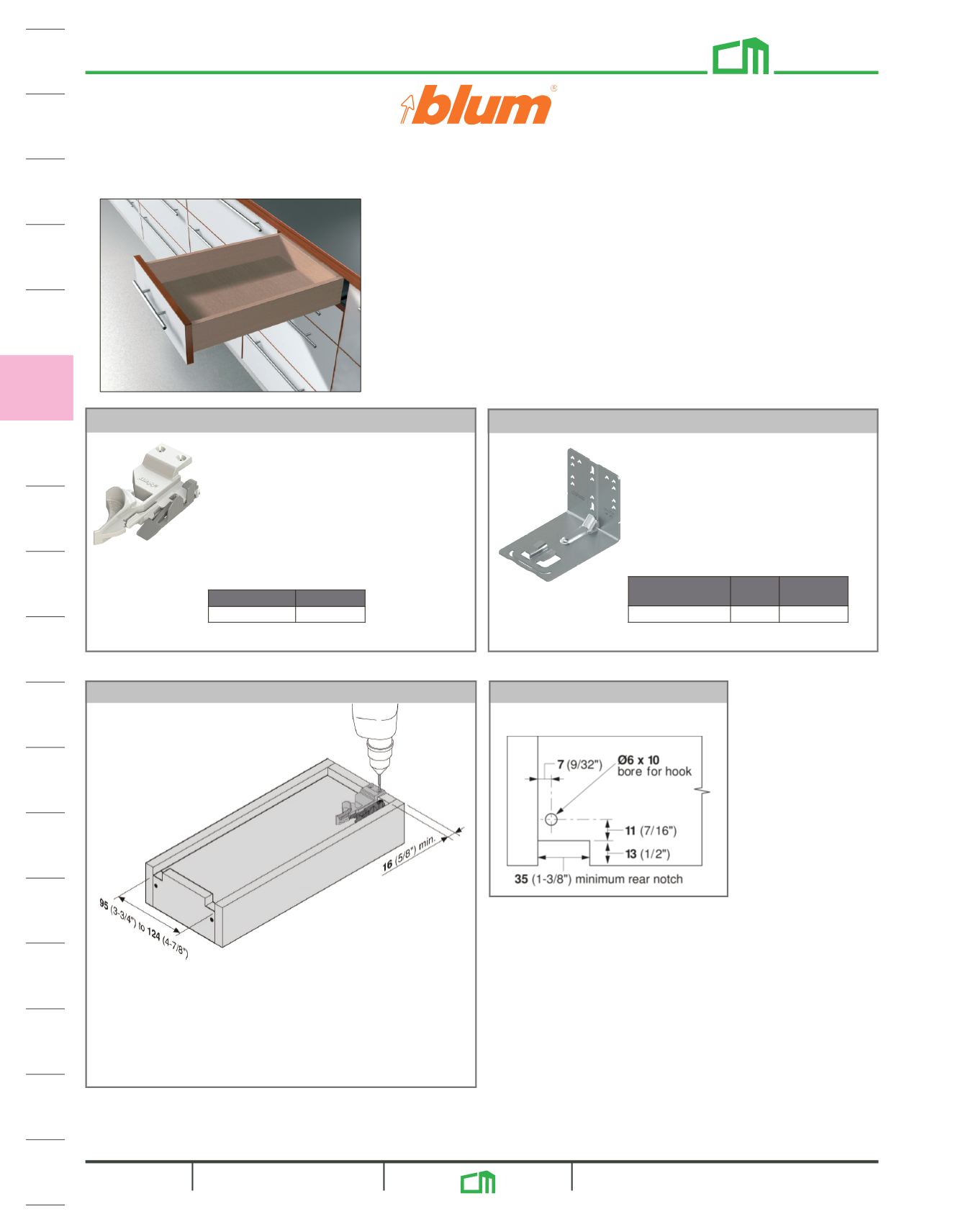

TANDEM plus BLUMOTION 563
Narrow Drawer Application
